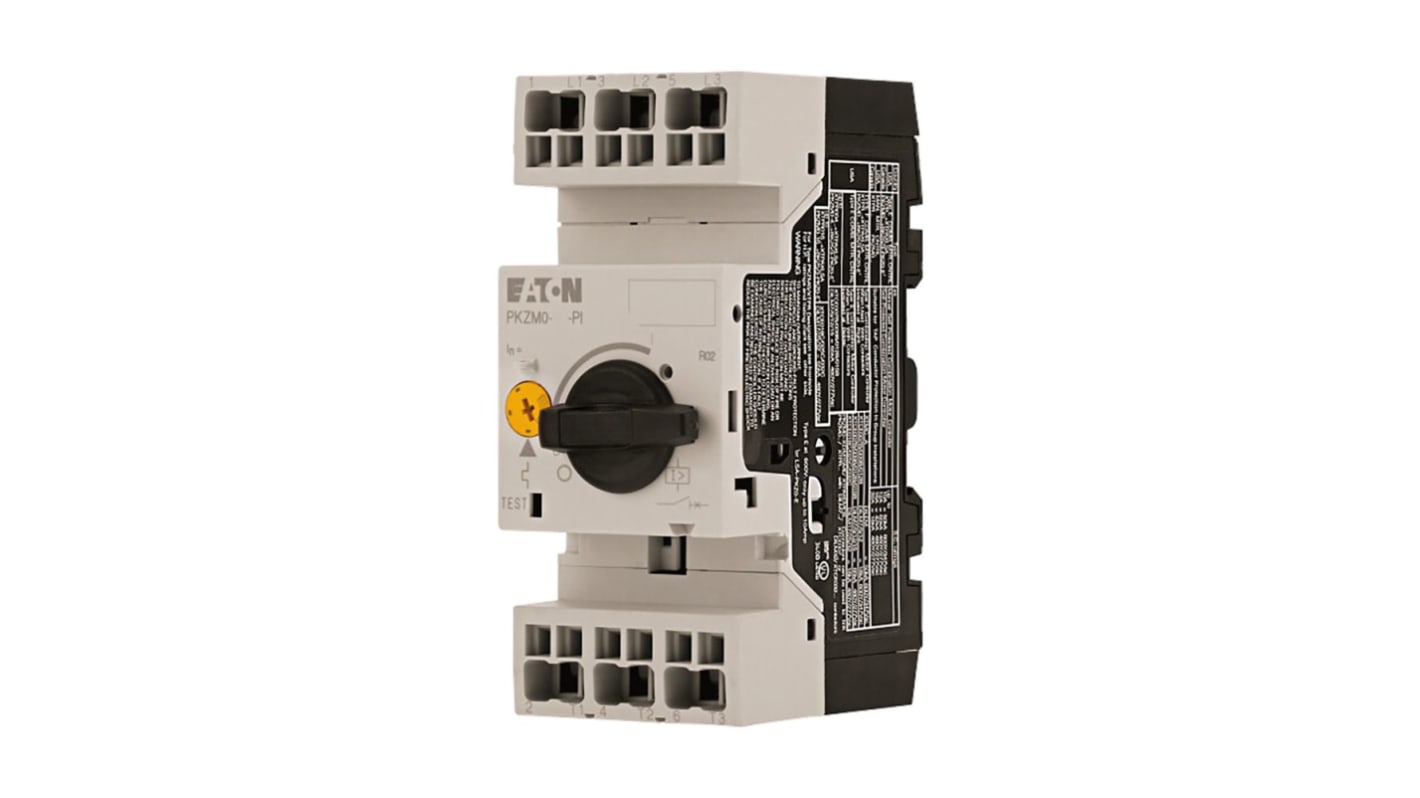

Eaton 4A PKZM 0 Motor Protection Circuit Breaker, 690V, 55 °C, -25 °C
- RS Stock No.:
- 240-2719
- Mfr. Part No.:
- 199170 PKZM0-4-T-PI
- Brand:
- Eaton
Subtotal (1 unit)*
£111.64
(exc. VAT)
£133.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.64 |
*price indicative
- RS Stock No.:
- 240-2719
- Mfr. Part No.:
- 199170 PKZM0-4-T-PI
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 4A | |
| Product Type | Motor Protection Circuit Breaker | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690V | |
| Motor Protection System | Transformer Protection | |
| Series | PKZM 0 | |
| Overall Length | 75mm | |
| Overall Width | 45mm | |
| Overall Depth | 75mm | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | RoHS | |
| Number of Poles | 3 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 4A | ||
Product Type Motor Protection Circuit Breaker | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690V | ||
Motor Protection System Transformer Protection | ||
Series PKZM 0 | ||
Overall Length 75mm | ||
Overall Width 45mm | ||
Overall Depth 75mm | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals RoHS | ||
Number of Poles 3 | ||
- COO (Country of Origin):
- DE
Eaton PKZM0 Series Motor Protection Circuit Breaker, 4A, 690V Supply Voltage - 199170 PKZM0-4-T-PI
This motor protection circuit breaker is designed for transformer protection across various electrical systems. It effectively prevents damage to motors caused by overloads and high inrush currents, making it essential for industrial applications where electrical control and safety are crucial for operational efficiency and durability.
Features & Benefits
• Operates effectively with a supply voltage of up to 690V
• High breaking capacity enhances safety and performance
• Equipped with push-in terminals for easy and secure connections
• Supports three-pole configurations for versatile applications
• Incorporates phase-failure sensitivity for added protection
• Compact design allows for flexibility in installation spaces
Applications
• Suitable for transformer protection in industrial machinery
• Ideal for environments with high inrush currents
• Compatible with electric motors classified under efficiency class IE3
• Appropriate for systems that undergo frequent operational cycles
What is the operational current rating of the device?
The device has a rated operational current of 4A.
Can it be mounted on a standard DIN rail?
Yes, it can be easily snapped onto various IEC/EN top-hat rails.
What is the temperature range for safe operation?
It operates effectively between -25°C and 40°C.
How does it protect against electrical faults?
It features phase-failure sensitivity and other safeguards for advanced protection.
What maintenance is required for optimal performance?
Regular inspections of connections and operational status are recommended for longevity.
Note
Eaton formerly known as Moeller
