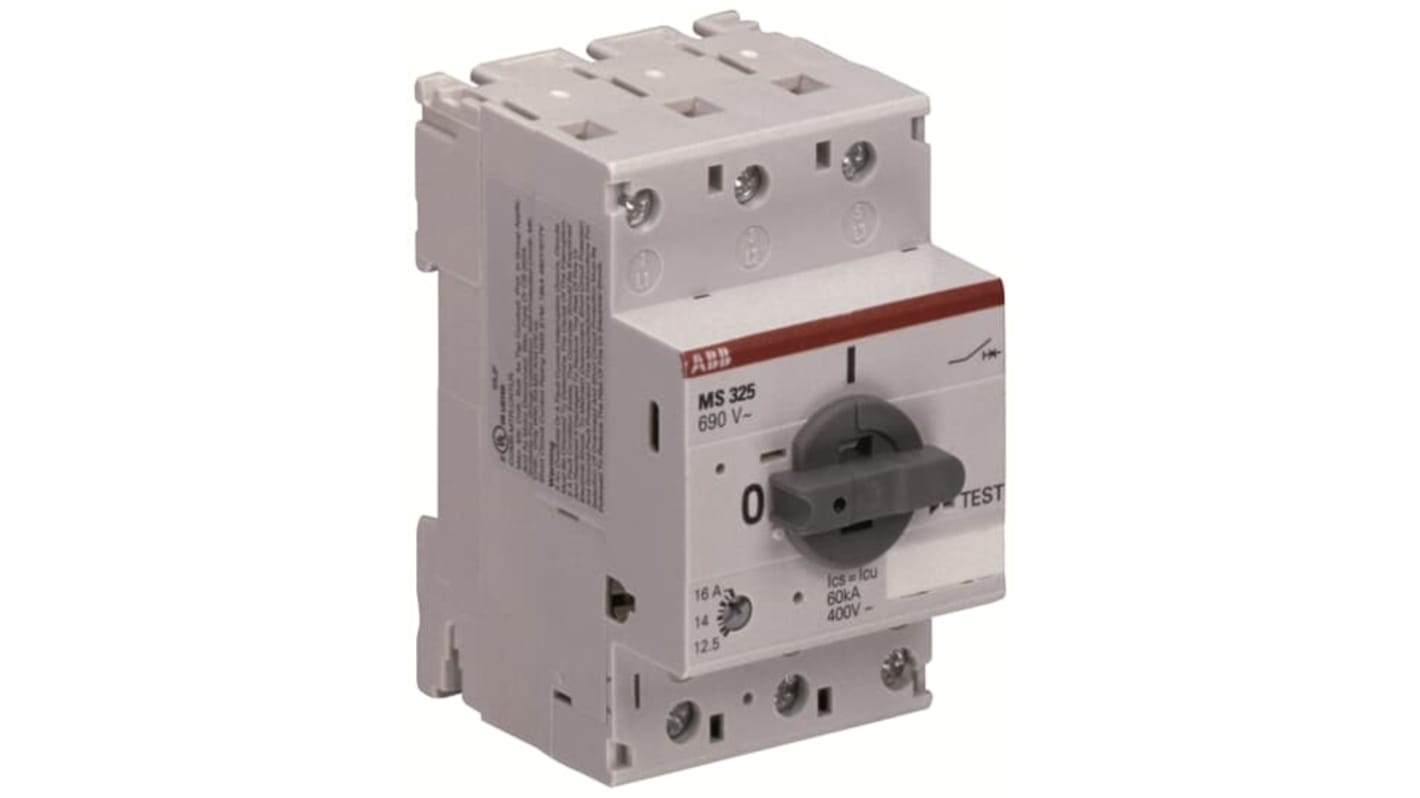

ABB 16 A MS325 Motor Starter, 600 V
- RS Stock No.:
- 225-5826
- Mfr. Part No.:
- 1SAM150000R1012 MS325-16
- Brand:
- ABB
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 225-5826
- Mfr. Part No.:
- 1SAM150000R1012 MS325-16
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Current Rating | 16 A | |
| Range | MS325 | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 600 V | |
| Overall Length | 75.5mm | |
| Overall Width | 54mm | |
| Overall Depth | 87.5mm | |
| Minimum Operating Temperature | -25°C | |
| Voltage Rating | 690 V | |
| Maximum Operating Temperature | +50°C | |
| Number of Poles | 3 | |
| Breaking Capacity | 60 kA | |
Select all | ||
|---|---|---|
Brand ABB | ||
Current Rating 16 A | ||
Range MS325 | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 600 V | ||
Overall Length 75.5mm | ||
Overall Width 54mm | ||
Overall Depth 87.5mm | ||
Minimum Operating Temperature -25°C | ||
Voltage Rating 690 V | ||
Maximum Operating Temperature +50°C | ||
Number of Poles 3 | ||
Breaking Capacity 60 kA | ||
ABB Motor Starter, 16A Current Rating, 600V Supply Voltage - 1SAM150000R1012 MS325-16
This manual motor starter by ABB is designed with a rated operational current of 16A. It offers reliable motor protection against short-circuits, overload, and phase failures without the need for a fuse. With a built-in disconnect function, temperature compensation, and trip-free mechanism, this device ensures efficient motor operation. It is suitable for both single-phase and three-phase applications, providing a secure and easy-to-use solution for controlling motor operations.
Features & Benefits
• Rated operational current of 16A for heavy-duty requirements
• Built-in disconnect function for added safety
• Trip-free mechanism for enhanced safety
• Built-in disconnect function for added safety
• Trip-free mechanism for enhanced safety
Applications
• Ideal for manually switching on and off motors
• Provides reliable protection against short-circuits and overload
• Provides reliable protection against short-circuits and overload
Can it be used for both single-phase and three-phase applications?
Yes, it is suitable for both single-phase and three-phase applications.
Will it protect motors from short-circuits and overload?
Yes, this manual motor starter offers reliable protection against short-circuits and overload.
Is the MS325-16 easy to use and install?
Yes, it is designed for easy installation and user-friendly operation.
