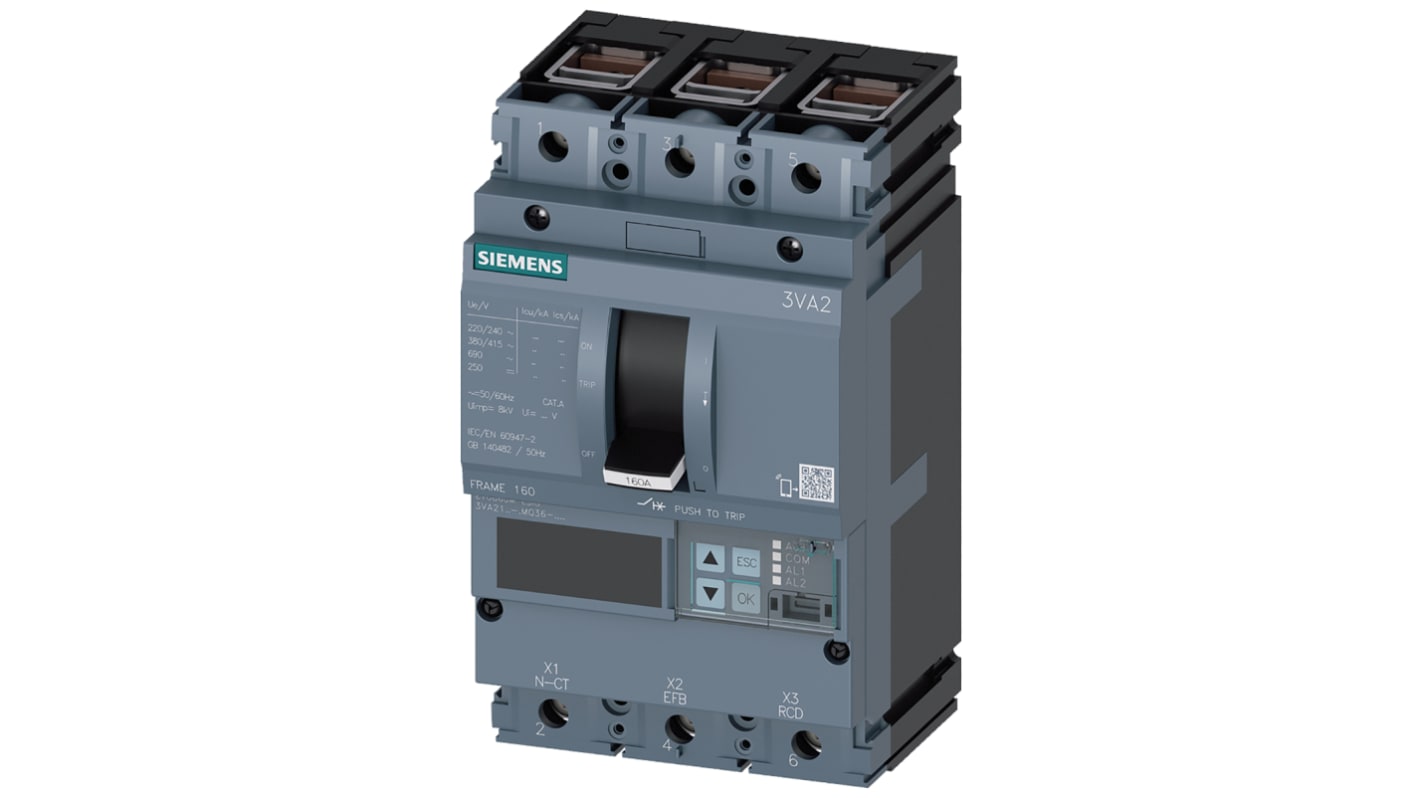

Siemens 25A, 63 A 3VA2 Motor Protection Circuit Breaker, 690V, 80 °C, -40 °C
- RS Stock No.:
- 196-3571
- Mfr. Part No.:
- 3VA21635MQ360AA0
- Brand:
- Siemens
Subtotal (1 unit)*
£1,182.03
(exc. VAT)
£1,418.44
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,182.03 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 196-3571
- Mfr. Part No.:
- 3VA21635MQ360AA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Motor Protection Circuit Breaker | |
| Current Rating | 25, 63A | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690V | |
| Motor Protection System | Circuit Breaker | |
| Series | 3VA2 | |
| Overall Length | 105mm | |
| Overall Width | 107mm | |
| IP Rating | IP40 | |
| Overall Depth | 181mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EAC | |
| Better World Claim | Concentrated or Compact Solution, Extended Product Life | |
| Number of Poles | 4 | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Motor Protection Circuit Breaker | ||
Current Rating 25, 63A | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690V | ||
Motor Protection System Circuit Breaker | ||
Series 3VA2 | ||
Overall Length 105mm | ||
Overall Width 107mm | ||
IP Rating IP40 | ||
Overall Depth 181mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EAC | ||
Better World Claim Concentrated or Compact Solution, Extended Product Life | ||
Number of Poles 4 | ||
Better World Product Yes | ||
- COO (Country of Origin):
- CZ
Circuit breaker 3VA2 IEC frame 160 breaking capacity class M Icu=55kA @ 415V 3-pole, LSIG, In=63A overload protection Ir=25A...63A short-circuit protection Isd=1.2..15x In, Ii=3..15x In gr.-fault prot., can be sw. off Ig=0.25...1 x In, tg=0.05-0.8s clamp connection
