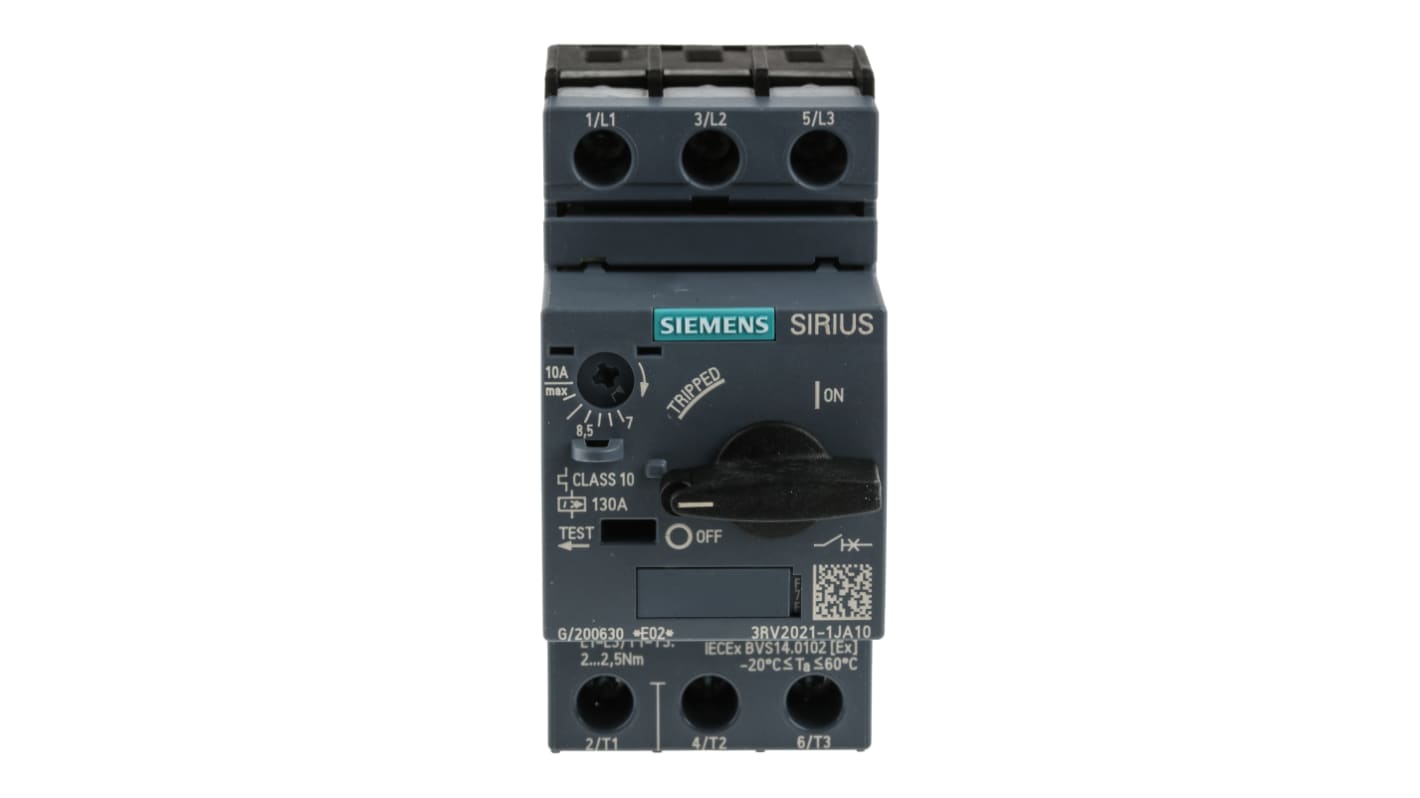

Siemens 7 → 10 A SIRIUS 3RV Motor Protection Circuit Breaker, 690 V
- RS Stock No.:
- 124-3105
- Distrelec Article No.:
- 303-97-073
- Mfr. Part No.:
- 3RV2021-1JA10
- Brand:
- Siemens
Subtotal (1 unit)*
£74.31
(exc. VAT)
£89.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 49 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £74.31 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 124-3105
- Distrelec Article No.:
- 303-97-073
- Mfr. Part No.:
- 3RV2021-1JA10
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Current Rating | 7 → 10 A | |
| Range | SIRIUS 3RV | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V | |
| Motor Protection System | Circuit Breaker SZ S0 | |
| Series | 3RV2 | |
| Overall Length | 45mm | |
| Overall Width | 96.9mm | |
| Overall Depth | 97mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Voltage Rating | 690 V | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Terminal Type | Screw | |
| Better World Product | Yes | |
| Number of Poles | 3 | |
| Breaking Capacity | 4 kA, 6 kA, 10 kA, 42 kA, 100 kA | |
| Size | S0 | |
| Enclosure Type | Rectangular | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Current Rating 7 → 10 A | ||
Range SIRIUS 3RV | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V | ||
Motor Protection System Circuit Breaker SZ S0 | ||
Series 3RV2 | ||
Overall Length 45mm | ||
Overall Width 96.9mm | ||
Overall Depth 97mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Voltage Rating 690 V | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Terminal Type Screw | ||
Better World Product Yes | ||
Number of Poles 3 | ||
Breaking Capacity 4 kA, 6 kA, 10 kA, 42 kA, 100 kA | ||
Size S0 | ||
Enclosure Type Rectangular | ||
- COO (Country of Origin):
- DE
Siemens Motor Protection Circuit Breaker, 6kV Surge Voltage Resistance, Screw Terminal Connection Type - SIRIUS Innovation Series - 3RV2021-1JA10
Need a trustworthy tripping device for your load-drawing applications? Check out this motor protection circuit breaker from Siemens. It's a Class 10 model, so you can count on it to trip in 10 seconds or less if it's supplied with a current exceeding six times its maximum 10A rating. This makes it a practical choice to protect users in demanding high-load industrial tasks like motor starting. It also helps avoid equipment damage that can lead to system downtime. As the unit withstands shock, supports a relative humidity of up to 95% and has a surge voltage resistance of 6kV, it’s a safe bet for use in harsh environments.
Features & Benefits
• IP20 rating, so you can be sure its touch-safe terminals won't shock you
• Offers a choice of installation options including screw and simple snap-on DIN rail mounting
• Screw terminals make it easy to get robust electrical connections with any AWG from 16 to 8 (2.5 to 10mm²)
• Offers a choice of installation options including screw and simple snap-on DIN rail mounting
• Screw terminals make it easy to get robust electrical connections with any AWG from 16 to 8 (2.5 to 10mm²)
What other electrical protection does this breaker offer?
As well as shielding against excess current, this MPCB provides overload and short-circuit safeguarding. This means you can count on the device to protect against many common electrical faults.
