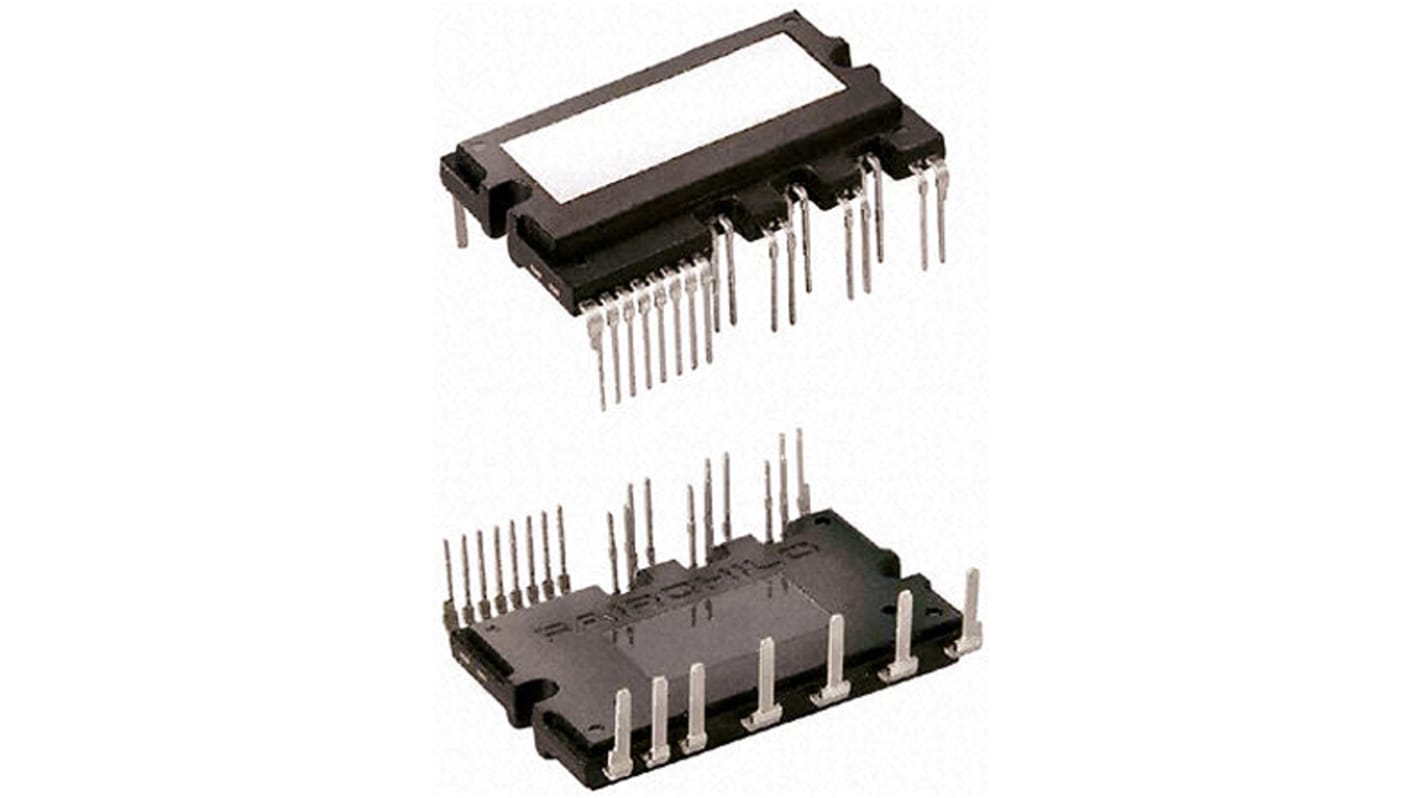

Fairchild Semiconductor FSBS15CH60, AC Induction Motor Driver IC, 600 V 15A 27-Pin, PDIP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Motion SPM® 3 Series Motor Drivers, Fairchild Semiconductor

A range of advanced Smart Power Modules from Fairchild Semiconductor which provide compact high performance solutions for many inverter motor drive applications. The modules integrate optimized gate drive for the built-in power MOSFETs to minimize EMI and losses and also include multiple on-module protection features including under-voltage lockouts and thermal monitoring. The modules are suitable for driving AC Induction, BLDC (Brushless DC) and PMSM (Permanent Magnet Synchronous) motors.

Motor Controllers & Drivers, Fairchild Semiconductor

Specifications
Attribute Value
Motor Type AC Induction
Output Configuration 3 Phase
Maximum IGBT Collector Current 15A
Maximum Collector Emitter Voltage 600 V
Mounting Type Through Hole
Package Type PDIP
Maximum Operating Supply Voltage 16.5 V
Pin Count 27
Minimum Operating Supply Voltage 13.5 V
Typical Switching Frequency 20kHz
Maximum Isolation Rating 2500Vrms
Series Motion SPM 3 Series
Maximum Operating Temperature +125 °C
Dimensions 44.2 x 27 x 5.7mm
Width 27mm
Height 5.7mm
Minimum Operating Temperature -20 °C
Length 44.2mm
Available to back order for despatch when stock is available
Price Each (In a Tube of 10)
£ 12.817
(exc. VAT)
£ 15.38
(inc. VAT)
Units
Per unit
Per Tube*
10 - 40
£12.817
£128.17
50 - 90
£12.404
£124.04
100 +
£12.016
£120.16
*price indicative
