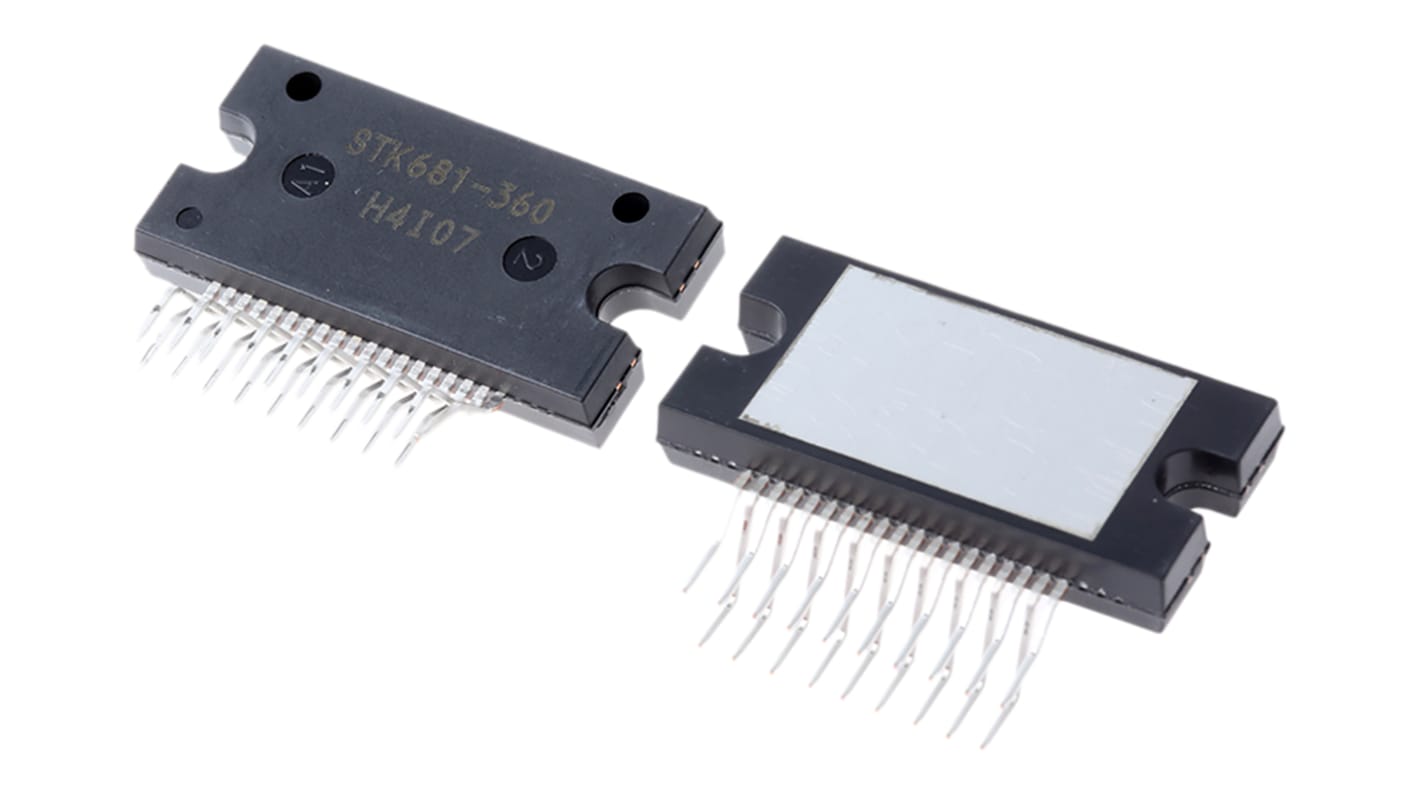

onsemi STK681-360-E, Brushed Motor Driver IC, 30 V 3A 19-Pin, SIP
- RS Stock No.:
- 801-6810
- Mfr. Part No.:
- STK681-360-E
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 801-6810
- Mfr. Part No.:
- STK681-360-E
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | Brushed DC | |
| Output Configuration | Full Bridge | |
| Maximum IGBT Collector Current | 3A | |
| Maximum Collector Emitter Voltage | 30 V | |
| Mounting Type | Through Hole | |
| Package Type | SIP | |
| Maximum Operating Supply Voltage | 30 V | |
| Pin Count | 19 | |
| Minimum Operating Supply Voltage | 10 V | |
| Typical Switching Frequency | 0 → 20kHz | |
| Inverter Power Rating | 3.1W | |
| Height | 14.4mm | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | +105 °C | |
| Length | 29.2mm | |
| Width | 4.5mm | |
| Dimensions | 29.2 x 4.5 x 14.4mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type Brushed DC | ||
Output Configuration Full Bridge | ||
Maximum IGBT Collector Current 3A | ||
Maximum Collector Emitter Voltage 30 V | ||
Mounting Type Through Hole | ||
Package Type SIP | ||
Maximum Operating Supply Voltage 30 V | ||
Pin Count 19 | ||
Minimum Operating Supply Voltage 10 V | ||
Typical Switching Frequency 0 → 20kHz | ||
Inverter Power Rating 3.1W | ||
Height 14.4mm | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature +105 °C | ||
Length 29.2mm | ||
Width 4.5mm | ||
Dimensions 29.2 x 4.5 x 14.4mm | ||
Brushed Motor Drivers, ON Semiconductor
Forward / Reverse dc Motor Drivers, with Brush
Motor Controllers & Drivers, ON Semiconductor
