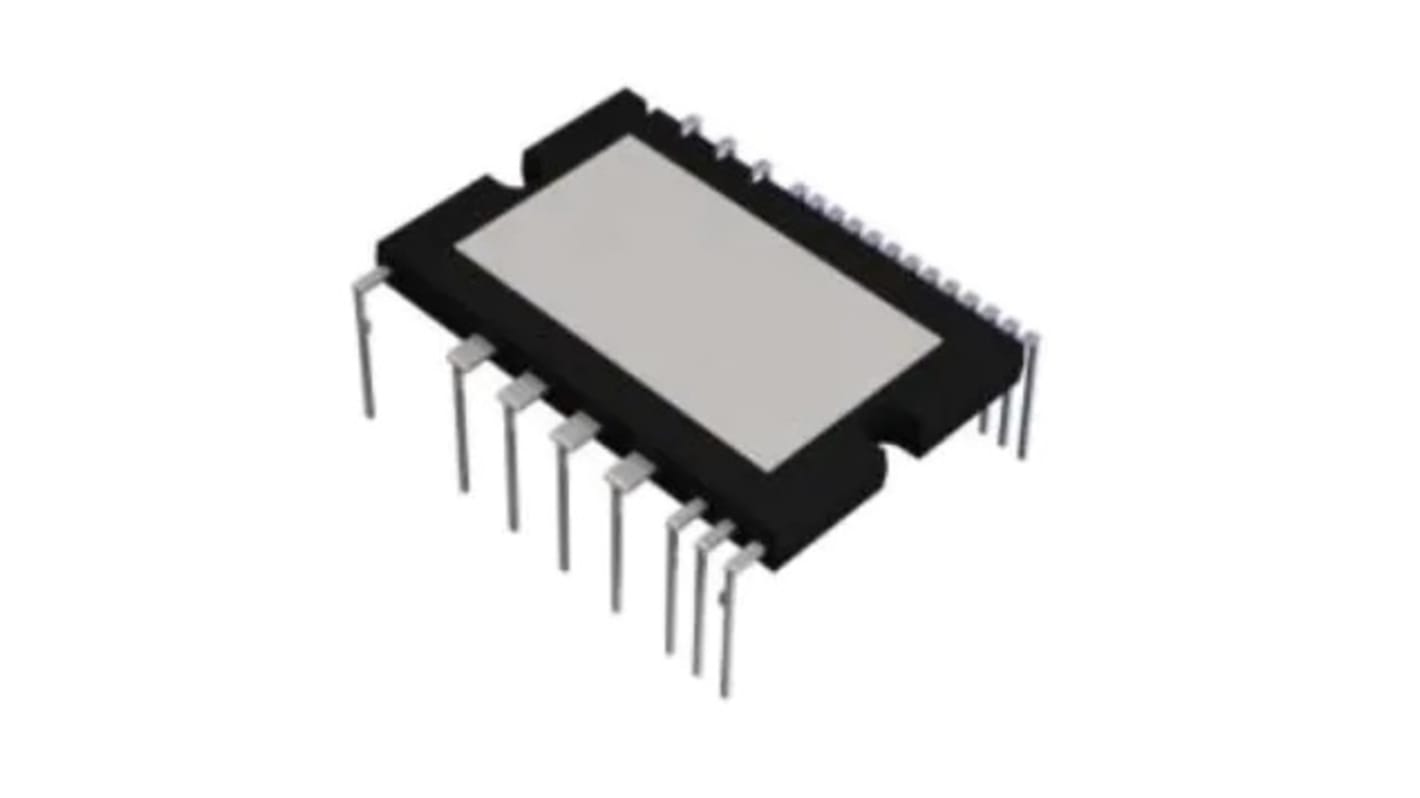

ROHM BM63375S-VA, DC Motor Motor Driver IC, 600 V 20 A 25-Pin, HSDIP25
- RS Stock No.:
- 235-2629
- Mfr. Part No.:
- BM63375S-VA
- Brand:
- ROHM
Subtotal (1 tube of 60 units)*
£901.80
(exc. VAT)
£1,082.40
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 60 + | £15.03 | £901.80 |
*price indicative
- RS Stock No.:
- 235-2629
- Mfr. Part No.:
- BM63375S-VA
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Motor Driver IC | |
| Motor Type | DC Motor | |
| Configuration | 3 Phase | |
| Maximum IGBT Collector Current | 20A | |
| Maximum Collector Emitter Voltage Vceo | 600V | |
| Mount Type | Through Hole | |
| Package Type | HSDIP25 | |
| Pin Count | 25 | |
| Output Current | 1mA | |
| Maximum Supply Voltage | 450V | |
| Minimum Supply Voltage | 0V | |
| Typical Switching Frequency | 20kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 115°C | |
| Length | 38.5mm | |
| Height | 3.75mm | |
| Standards/Approvals | No | |
| Series | BM63375S | |
| Inverter Power Rating | 44W | |
| Supply Current | 2.8mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Motor Driver IC | ||
Motor Type DC Motor | ||
Configuration 3 Phase | ||
Maximum IGBT Collector Current 20A | ||
Maximum Collector Emitter Voltage Vceo 600V | ||
Mount Type Through Hole | ||
Package Type HSDIP25 | ||
Pin Count 25 | ||
Output Current 1mA | ||
Maximum Supply Voltage 450V | ||
Minimum Supply Voltage 0V | ||
Typical Switching Frequency 20kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 115°C | ||
Length 38.5mm | ||
Height 3.75mm | ||
Standards/Approvals No | ||
Series BM63375S | ||
Inverter Power Rating 44W | ||
Supply Current 2.8mA | ||
Automotive Standard No | ||
The ROHM BM6437xx-VA series is an intelligent power module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. It is mainly used for compressor motor, control for Air conditioner, washing machine and refrigerator.
3 phase DC/AC inverter
Low side IGBT open emitter
High side IGBT gate driver
Temperature output by analogue signal
