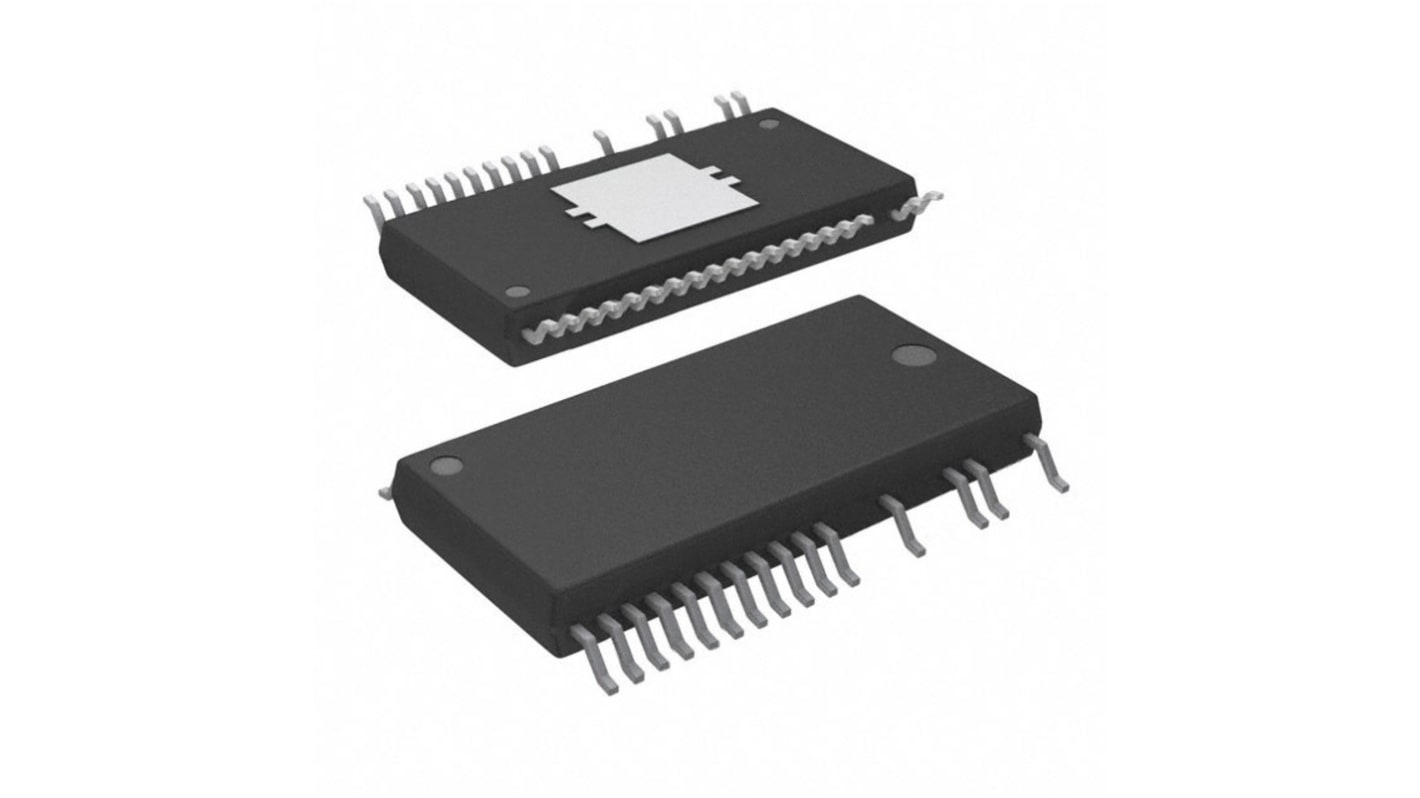

Toshiba TB67B000AFG(O,EL), BLDC Motor Driver IC 10mA 34-Pin, HSSOP

View all Motor Driver ICs
Bulk discount available

Subtotal 50 units (supplied on a continuous strip)*

£433.00

(exc. VAT)

£519.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
50 - 99£8.66
100 - 249£7.81
250 - 499£7.10
500 +£6.50

*price indicative

Packaging Options:
RS Stock No.:
214-8067P
Mfr. Part No.:
TB67B000AFG(O,EL)
Brand:
Toshiba
Find similar products by selecting one or more attributes.
Select all

Brand

Toshiba

Motor Type

BLDC

Configuration

3 Phase

Maximum IGBT Collector Current

10mA

Maximum Output Current

2A

Maximum Supply Voltage

16.5 V

Mounting Type

Surface Mount

Package Type

HSSOP

Pin Count

34

The Toshiba high-voltage PWM brushless DC motor driver integrates a controller, which supports sine-wave PWM drive and wide-angle commutation and a high-voltage driver in a single package. It is designed to change the speed of a brushless DC motor directly by using a speed control analog signal from a microcontroller.

Sine-wave PWM drive or wide-angle commutation drive is selectable
IGBTs are arranged in three-phase bridge unit
Built-in oscillator circuit (carrier frequency = fosc/252 (Hz))
Bootstrap circuitry: Built-in bootstrap diode
Built-in overcurrent protection, thermal shutdown, undervoltage lockout, and motor-lock detection
Internal voltage regulator circuit (VREG = 5 V (typ.), 30 mA (max), Vrefout = 5 V (typ.), 35 mA (max))
Operating power supply voltage range: VCC = 13.5 to 16.5 V
Motor power supply operating voltage range: VBB = 50 to 450 V
