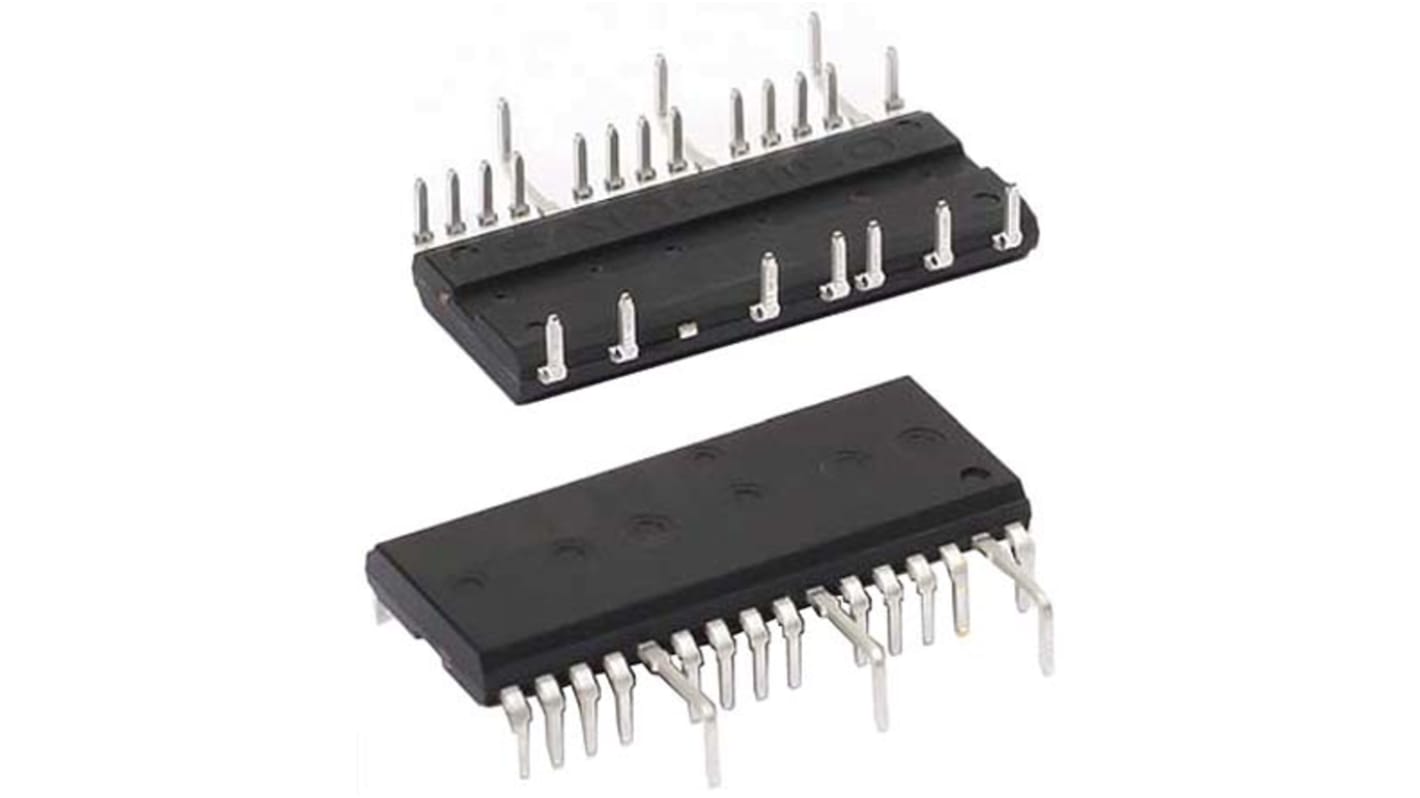

onsemi FSB50250BOS, AC Induction, BLDC Motor, PMSM Motor Intelligent Power Module 23-Pin, SPM5P
- RS Stock No.:
- 195-2614P
- Mfr. Part No.:
- FSB50250B
- Brand:
- onsemi
Subtotal 5 units (supplied in a tube)*
£29.55
(exc. VAT)
£35.45
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 5 + | £5.91 |
*price indicative
- RS Stock No.:
- 195-2614P
- Mfr. Part No.:
- FSB50250B
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Motor Type | AC Induction, BLDC Motor, PMSM Motor | |
| Configuration | 3 Phase | |
| Maximum Supply Voltage | 20 V | |
| Mounting Type | Through Hole | |
| Package Type | SPM5P | |
| Maximum Operating Supply Voltage | 20 V | |
| Pin Count | 23 | |
| Typical Switching Frequency | 15kHz | |
| Maximum Isolation Rating | 1500Vrms | |
| Series | Motion SPM 5 | |
| Product Height | 3.3mm | |
| Width | 12mm | |
| Height | 3.3mm | |
| Product Length | 29mm | |
| Length | 29mm | |
| Maximum Operating Temperature | +150 °C | |
| Product Width | 12mm | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 29 x 12 x 3.3mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Motor Type AC Induction, BLDC Motor, PMSM Motor | ||
Configuration 3 Phase | ||
Maximum Supply Voltage 20 V | ||
Mounting Type Through Hole | ||
Package Type SPM5P | ||
Maximum Operating Supply Voltage 20 V | ||
Pin Count 23 | ||
Typical Switching Frequency 15kHz | ||
Maximum Isolation Rating 1500Vrms | ||
Series Motion SPM 5 | ||
Product Height 3.3mm | ||
Width 12mm | ||
Height 3.3mm | ||
Product Length 29mm | ||
Length 29mm | ||
Maximum Operating Temperature +150 °C | ||
Product Width 12mm | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 29 x 12 x 3.3mm | ||
- COO (Country of Origin):
- CN
The FSB50250B/BS is an advanced Motion SPM® 5 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. These modules integrate optimized gate drive of the built-in MOSFETs (FRFET® technology) to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts and thermal monitoring. The built-in high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's internal MOSFETs. Separate open-source MOSFET terminals are available for each phase to support the widest variety of control algorithms.
