STMicroelectronics STSPIN233, BLDC Motor Driver IC 16-Pin, VFQFPN
- RS Stock No.:
- 171-8654
- Mfr. Part No.:
- STSPIN233
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 171-8654
- Mfr. Part No.:
- STSPIN233
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | BLDC | |
| Configuration | 3 Phase | |
| Output Configuration | Triple Half Bridge | |
| Maximum Supply Voltage | 10 V | |
| Mounting Type | Surface Mount | |
| Package Type | VFQFPN | |
| Maximum Operating Supply Voltage | 10 V | |
| Pin Count | 16 | |
| Minimum Operating Supply Voltage | 1.8 V | |
| Series | STSPIN | |
| Dimensions | 3 x 3 x 0.99mm | |
| Length | 3mm | |
| Product Length | 3mm | |
| Product Width | 3mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 0.99mm | |
| Width | 3mm | |
| Minimum Operating Temperature | -40 °C | |
| Product Height | 0.99mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type BLDC | ||
Configuration 3 Phase | ||
Output Configuration Triple Half Bridge | ||
Maximum Supply Voltage 10 V | ||
Mounting Type Surface Mount | ||
Package Type VFQFPN | ||
Maximum Operating Supply Voltage 10 V | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 1.8 V | ||
Series STSPIN | ||
Dimensions 3 x 3 x 0.99mm | ||
Length 3mm | ||
Product Length 3mm | ||
Product Width 3mm | ||
Maximum Operating Temperature +150 °C | ||
Height 0.99mm | ||
Width 3mm | ||
Minimum Operating Temperature -40 °C | ||
Product Height 0.99mm | ||

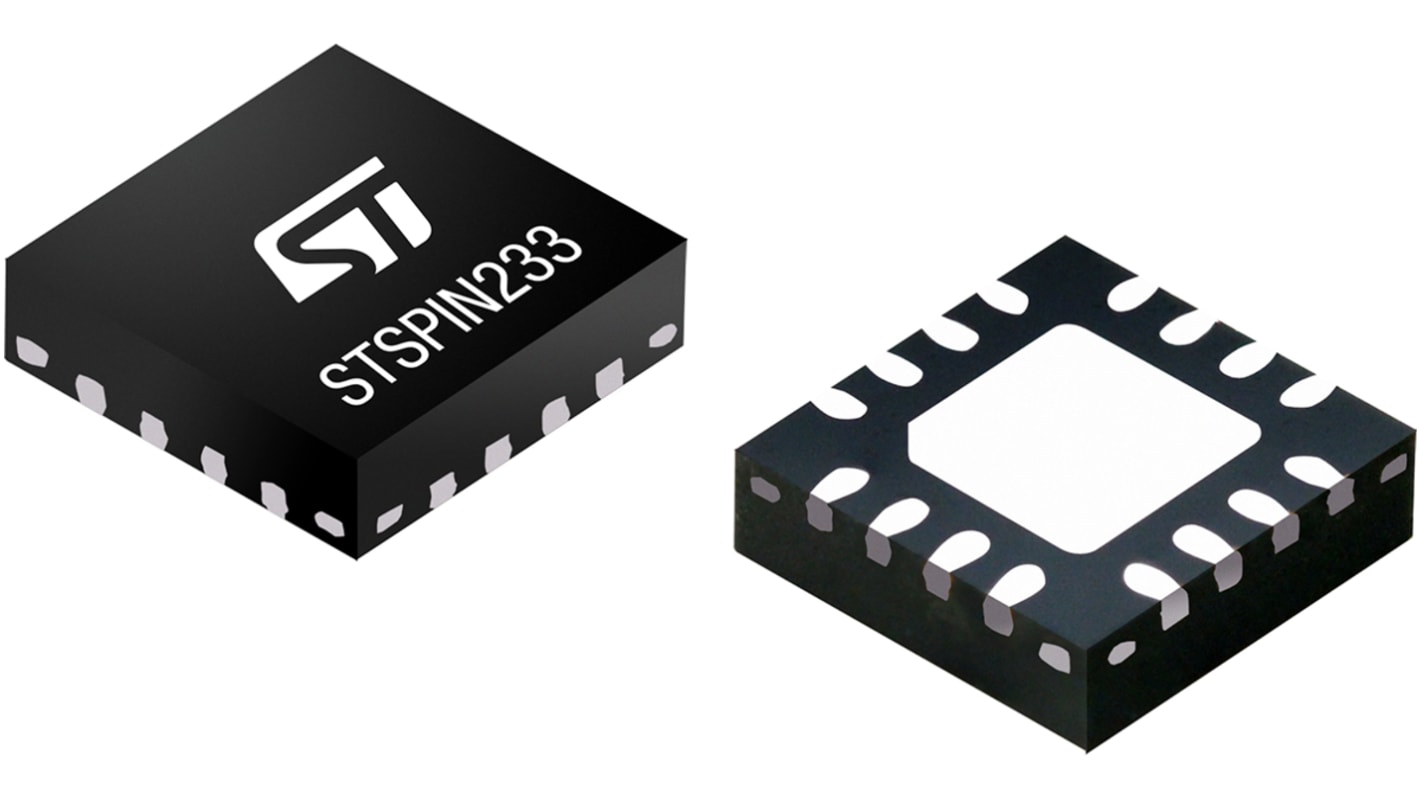

The STSPIN233 device integrates a triple half-bridge low RDS(ON) power stage in a small VFQFPN 3 x 3 x 1.0 mm package ideal for small and space constrained applications. The device is designed to operate in battery-powered scenarios and can be forced in a zero consumption state, allowing a significant increase in battery life. The STSPIN233 is supporting three shunt sensing topology. The device offers a complete set of protection including overcurrent, overtemperature and short-circuit protection.
Operating voltage from 1.8 to 10 V
Maximum output current 1.3 Arms
RDS(ON) HS + LS = 0.4 Ω typ.
Full protection set
Non-dissipative overcurrent protection
Short-circuit protection
Thermal shutdown
Supporting three shunt sensing topology
Direct driving, dedicated input and enable pin for each half-bridge
Energy saving and long battery life with standby consumption less than 80 nA
Maximum output current 1.3 Arms
RDS(ON) HS + LS = 0.4 Ω typ.
Full protection set
Non-dissipative overcurrent protection
Short-circuit protection
Thermal shutdown
Supporting three shunt sensing topology
Direct driving, dedicated input and enable pin for each half-bridge
Energy saving and long battery life with standby consumption less than 80 nA
