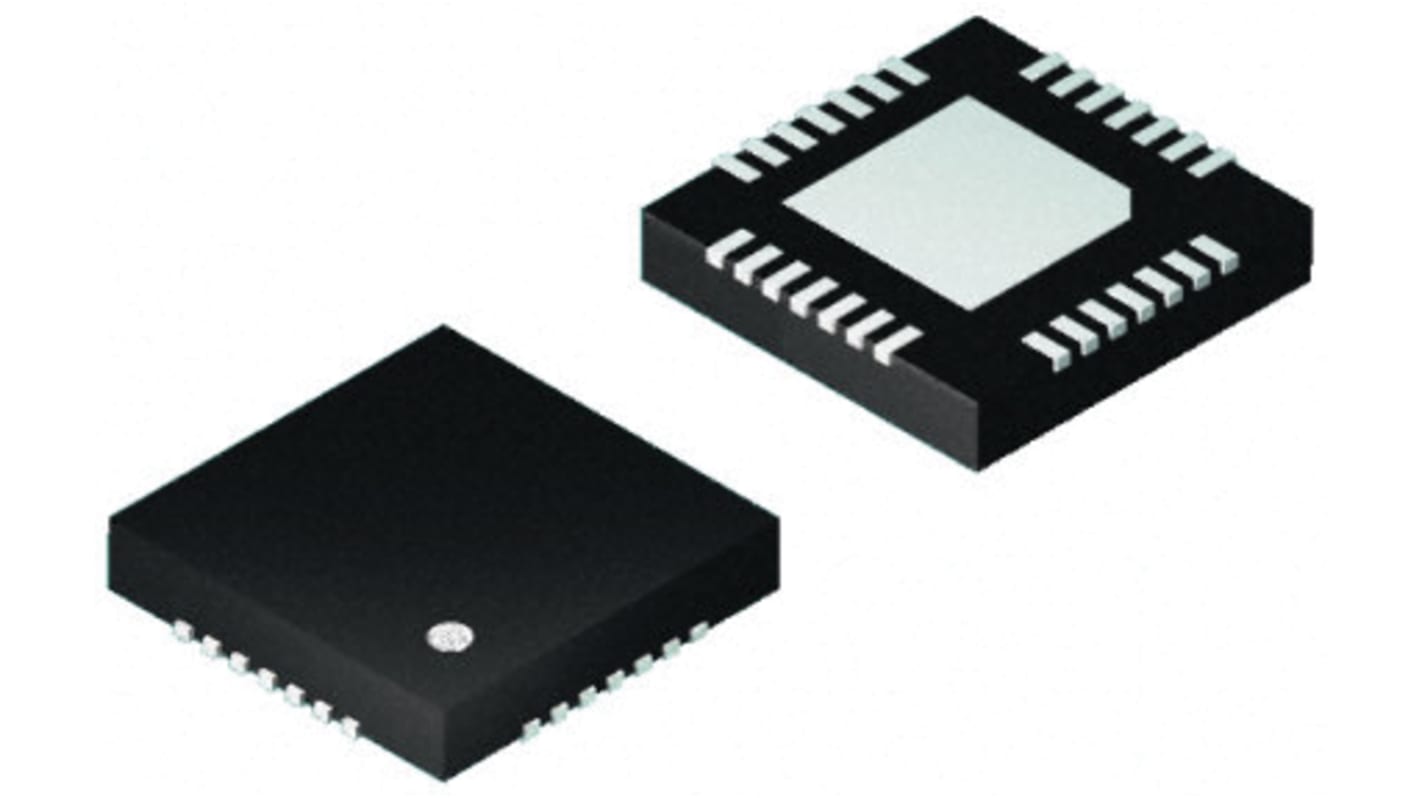

STMicroelectronics PWD13F60TR, DC Motor Driver IC 28-Pin, VFQFPN
- RS Stock No.:
- 164-7005
- Mfr. Part No.:
- PWD13F60TR
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 164-7005
- Mfr. Part No.:
- PWD13F60TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Motor Type | DC | |
| Configuration | H Bridge | |
| Output Configuration | Dual Half Bridge | |
| Maximum Output Current | 8A | |
| Mounting Type | Surface Mount | |
| Package Type | VFQFPN | |
| Pin Count | 28 | |
| Minimum Operating Supply Voltage | 6.5 V | |
| Series | PWD | |
| Product Length | 10.1mm | |
| Maximum Operating Temperature | +125 °C | |
| Length | 10.1mm | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 10.1 x 13.1 x 0.85mm | |
| Product Width | 13.1mm | |
| Width | 13.1mm | |
| Product Height | 0.85mm | |
| Height | 0.85mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Motor Type DC | ||
Configuration H Bridge | ||
Output Configuration Dual Half Bridge | ||
Maximum Output Current 8A | ||
Mounting Type Surface Mount | ||
Package Type VFQFPN | ||
Pin Count 28 | ||
Minimum Operating Supply Voltage 6.5 V | ||
Series PWD | ||
Product Length 10.1mm | ||
Maximum Operating Temperature +125 °C | ||
Length 10.1mm | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 10.1 x 13.1 x 0.85mm | ||
Product Width 13.1mm | ||
Width 13.1mm | ||
Product Height 0.85mm | ||
Height 0.85mm | ||
The PWD13F60 is a high-density power driver integrating gate drivers and four N-channel power MOSFETs in dual half bridge configuration. The integrated power MOSFETs have low RDS(on) of 320 mΩ and 600 V drain-source breakdown voltage, while the embedded gate drivers high side can be easily supplied by the integrated bootstrap diode. The high integration of the device allows to efficiently drive loads in a tiny space.
Power system-in-package integrating gate drivers and high-voltage power MOSFETs
Wide driver supply voltage down to 6.5 V
UVLO protection on supply voltage
3.3 V to 15 V compatible inputs with hysteresis and pull-down
Interlocking function to prevent cross conduction
Internal bootstrap diode
Outputs in phase with inputs
Very compact and simplified layout
Flexible, easy and fast design
Wide driver supply voltage down to 6.5 V
UVLO protection on supply voltage
3.3 V to 15 V compatible inputs with hysteresis and pull-down
Interlocking function to prevent cross conduction
Internal bootstrap diode
Outputs in phase with inputs
Very compact and simplified layout
Flexible, easy and fast design
