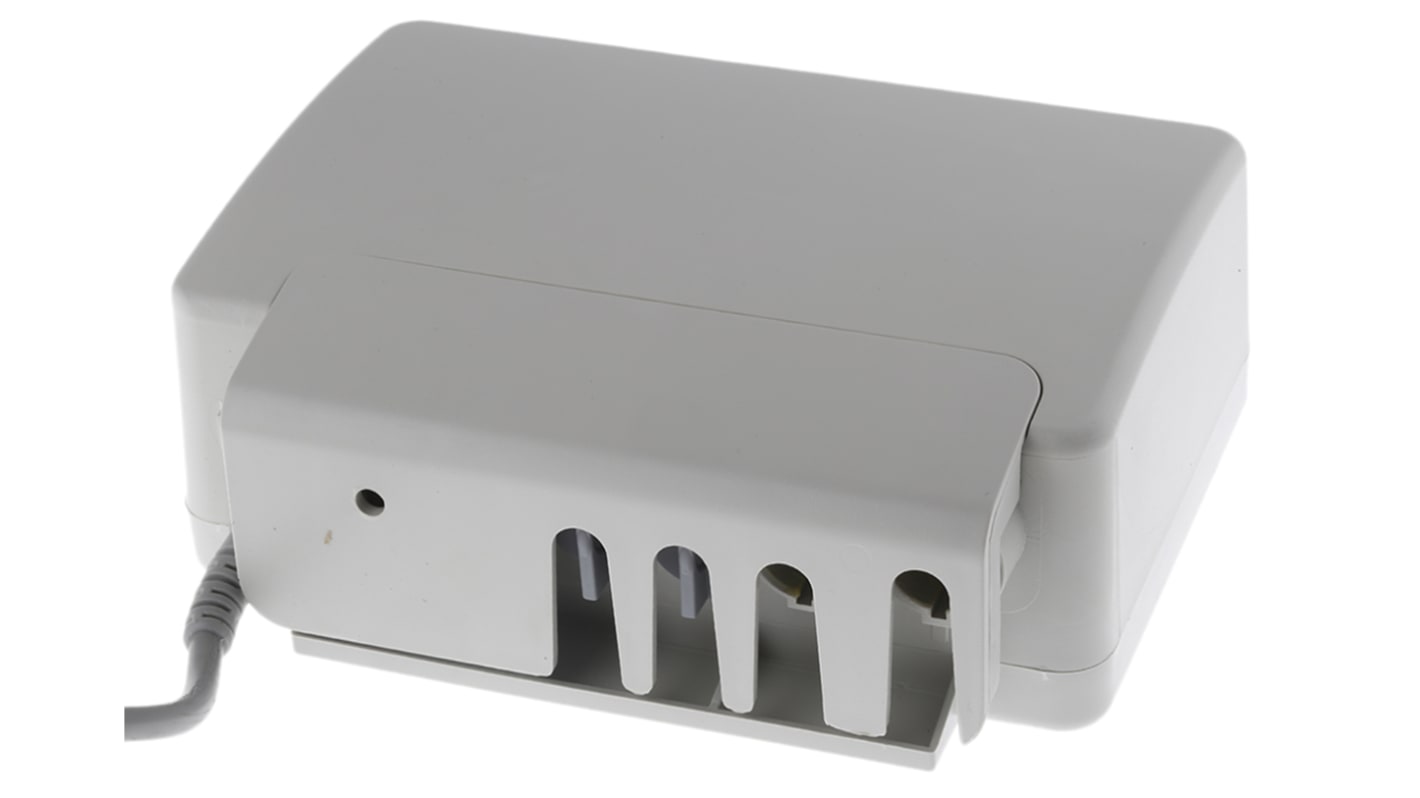

SKF Control Unit for Use with CARE33 Series, 170mm Length, 230 V ac
- RS Stock No.:
- 764-3446
- Mfr. Part No.:
- BCU83-2H-3100-000 CARE33
- Brand:
- SKF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 764-3446
- Mfr. Part No.:
- BCU83-2H-3100-000 CARE33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Accessory Type | Control Unit | |
| For Use With | CARE33 Series | |
| Voltage Range | 230 V ac | |
| Length | 170mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Accessory Type Control Unit | ||
For Use With CARE33 Series | ||
Voltage Range 230 V ac | ||
Length 170mm | ||
- COO (Country of Origin):
- CH
SKF CARE 33 Linear Actuator Controller
The SKF CARE 33 3 Channel Controller (BCU Control Unit) can accommodate up to three SKF 24 V dc Linear Actuators. A corresponding SKF Hand Switch (764-3449) plugs directly into the Control Unit resulting in a system that is easy to set up and use. The CARE 33 Controller incorporates microprocessor technology. It is equipped with a built-in power supply, three motor outputs (DIN8) for actuators, and an HD15 input for the Hand Switch. The CARE 33 Controller has been designed for a long service life, is compact, lightweight, incorporates overload and over-temperature protection, and is easy to keep clean. On standby, the CARE 33 Linear Actuator Controller draws little current.
Features and Benefits
• Overcurrent cut-off
• 3 motor outputs
• Long lifetime - 100 000 cycles
• First failure safe
• Small box
• Easy plug and play feature
• Overload and Over-temperature protection
• Easy to clean
• 3 motor outputs
• Long lifetime - 100 000 cycles
• First failure safe
• Small box
• Easy plug and play feature
• Overload and Over-temperature protection
• Easy to clean
Product Application Information
Approved for medical applications.
Approvals
EN 60601-1 / UL 60601-1
SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators
Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches
