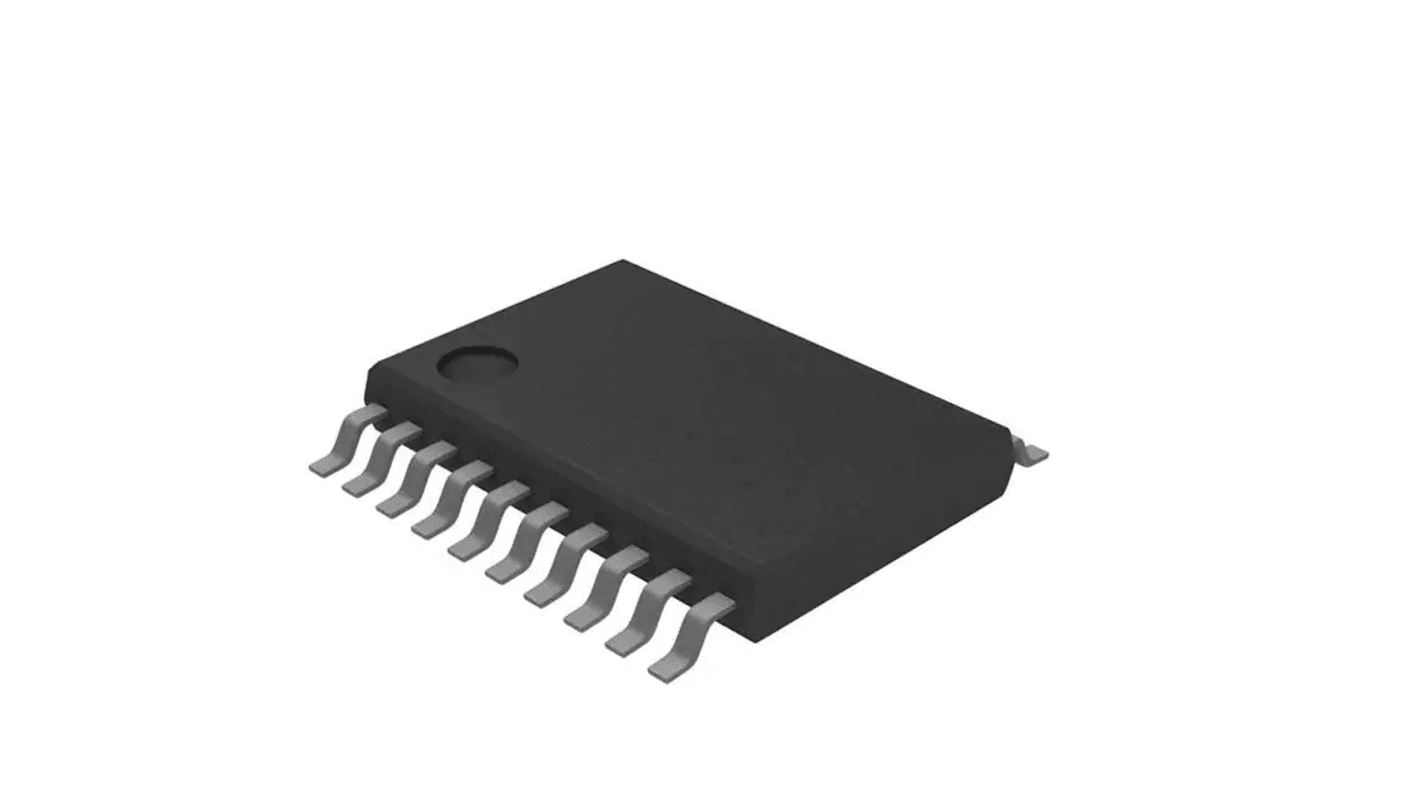

ams OSRAM Surface Mount Position Sensor, TSSOP, Serial, 20-Pin
- RS Stock No.:
- 232-9689
- Mfr. Part No.:
- AS5311-ATST
- Brand:
- ams OSRAM
799 In stock - FREE next working day delivery available
Added
Price Each
£10.93
(exc. VAT)
£13.12
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £10.93 |
| 50 - 99 | £8.36 |
| 100 - 249 | £7.20 |
| 250 - 499 | £6.95 |
| 500 + | £6.12 |
- RS Stock No.:
- 232-9689
- Mfr. Part No.:
- AS5311-ATST
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details
The ams AS5311 series is an incremental position sensor for linear and rotary off-axis applications based on contactless magnetic sensor technology. To measure position and motion a multi-pole magnet strip or ring has to be used. There are 4096 pulses per 2.0 mm pole pair length on the standardized quadrature output interface with an index pulse with a maximum speed of 650mm/s.
Contactless motion and position sensing
High speed measurement
Immune to external magnetic stray fields
Highest reliability and durability in harsh environments
Control of high speed movements
Lower material cost
High speed measurement
Immune to external magnetic stray fields
Highest reliability and durability in harsh environments
Control of high speed movements
Lower material cost
Specifications
Attribute | Value |
|---|---|
| Technology | Hall Effect |
| Mounting Type | Surface Mount |
| Interface Type | Serial |
| Package Type | TSSOP |
| Pin Count | 20 |
