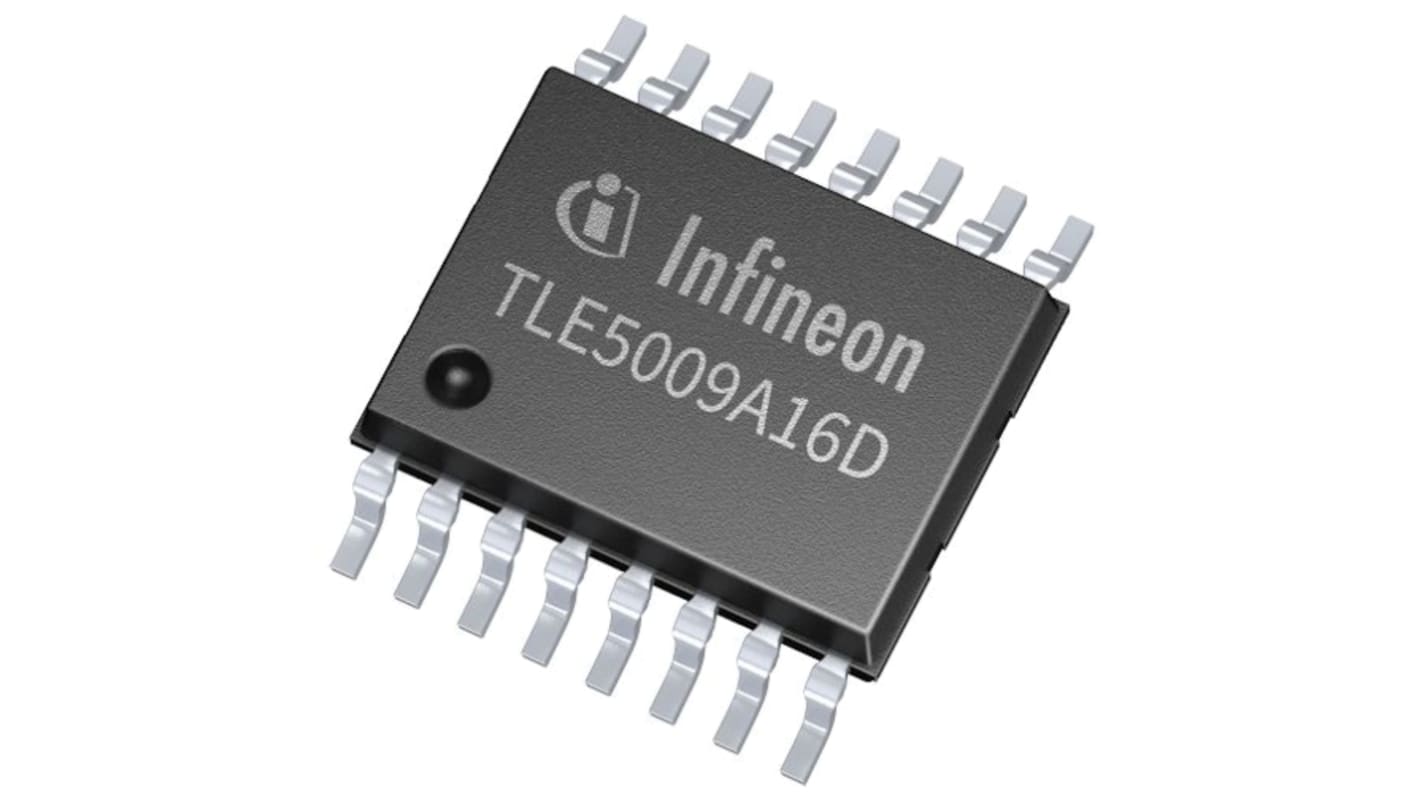

Infineon Surface Mount Position Sensor, PG-DSO, 16-Pin
- RS Stock No.:
- 193-9581
- Mfr. Part No.:
- TLE5009A16D E2210
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 193-9581
- Mfr. Part No.:
- TLE5009A16D E2210
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Sensor Type | Position Sensors | |
| Mounting Type | Surface Mount | |
| Maximum Operating Supply Voltage | 5 V | |
| Package Type | PG-DSO | |
| Pin Count | 16 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Automotive Standard | AEC-Q100 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Sensor Type Position Sensors | ||
Mounting Type Surface Mount | ||
Maximum Operating Supply Voltage 5 V | ||
Package Type PG-DSO | ||
Pin Count 16 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Automotive Standard AEC-Q100 | ||
Single and dual die sensor with AMR or GMR technology
Separate supply pins for top and bottom sensor
Low current consumption and quick start up
180°(AMR) and 360°(GMR) contactless angle measurement
Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage
Immune to airgap variations due to MR based sensing principle
Pre-amplified output signals for differential or single-ended applications
Diverse redundance combination of GMR sensor and AMR sensor in one package possible
High accuracy typically 0.1° overall angle error for AMR sensor
Target Applications:
BLDC motors
Pedals and rotary switches
Steering angle sensing
Valve or flap position sensing
Separate supply pins for top and bottom sensor
Low current consumption and quick start up
180°(AMR) and 360°(GMR) contactless angle measurement
Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage
Immune to airgap variations due to MR based sensing principle
Pre-amplified output signals for differential or single-ended applications
Diverse redundance combination of GMR sensor and AMR sensor in one package possible
High accuracy typically 0.1° overall angle error for AMR sensor
Target Applications:
BLDC motors
Pedals and rotary switches
Steering angle sensing
Valve or flap position sensing
