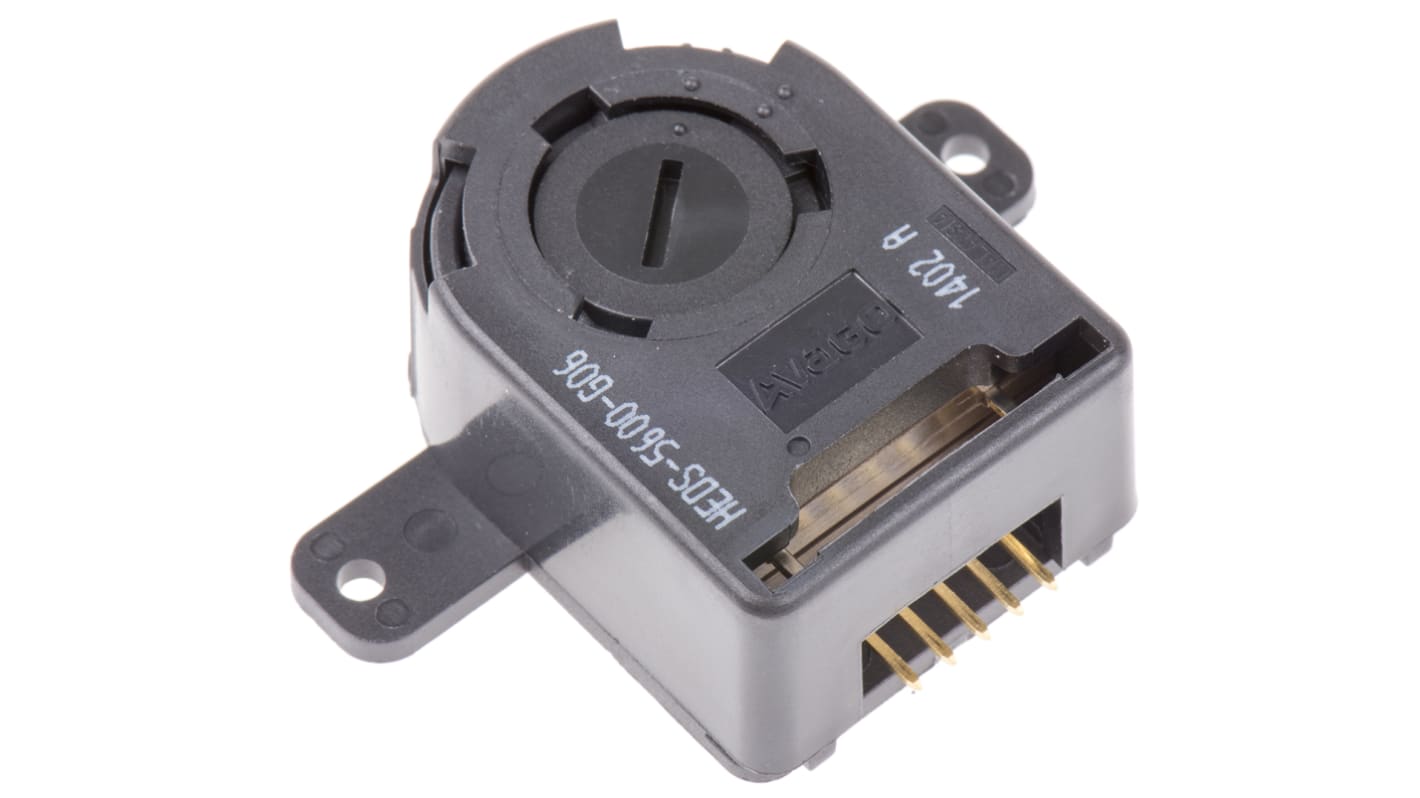

Broadcom Incremental Incremental Encoder, Digital Signal

View all Motion Control Sensors
Discontinued
Packaging Options:
RS Stock No.:
796-7856
Mfr. Part No.:
HEDS-5600#G06
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Encoder Technology

Incremental

Maximum Revolutions

30000rpm

Output Signal Type

Digital

Supply Voltage

-0.5 → 7 V dc

Resolution

360 CPR

Overall Height

18.3mm

Overall Width

41.1mm

Overall Depth

30mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+100°C

Switching Frequency

100 kHz

COO (Country of Origin):
MY

Optical Encoders


This range of motion control optical encoders, by Avago Technologies, is available in two and three channel output options. These incremental encoders utilize optical technology for motion control. Incremental encoder devices provide position feedback for incremental counts. Where the feedback signal is always referenced to a start or home position, an incremental encoder provides a uniquely defined, relative position. Avago Technologies offer both optical reflective incremental encoders and optical transmissive incremental encoders. These devices are available as encoder modules for user integration or as complete housed or kit incremental encoders. This range of optical encoders provides accurate positioning and velocity sensing for a variety of applications.

Possible applications include:
printers
copiers
scanners
servo and stepper motor feedback systems
robotic arms
wafer-handling machines


Avago Technologies Rotary Encoders
