Baumer BRIH 58D Series Incremental Incremental Encoder, 1024 ppr, Push Pull Signal, Hollow Type, 12mm Shaft
- RS Stock No.:
- 542-5224
- Mfr. Part No.:
- BRIH 58 D16 24K 1024 P2 N
- Brand:
- Baumer

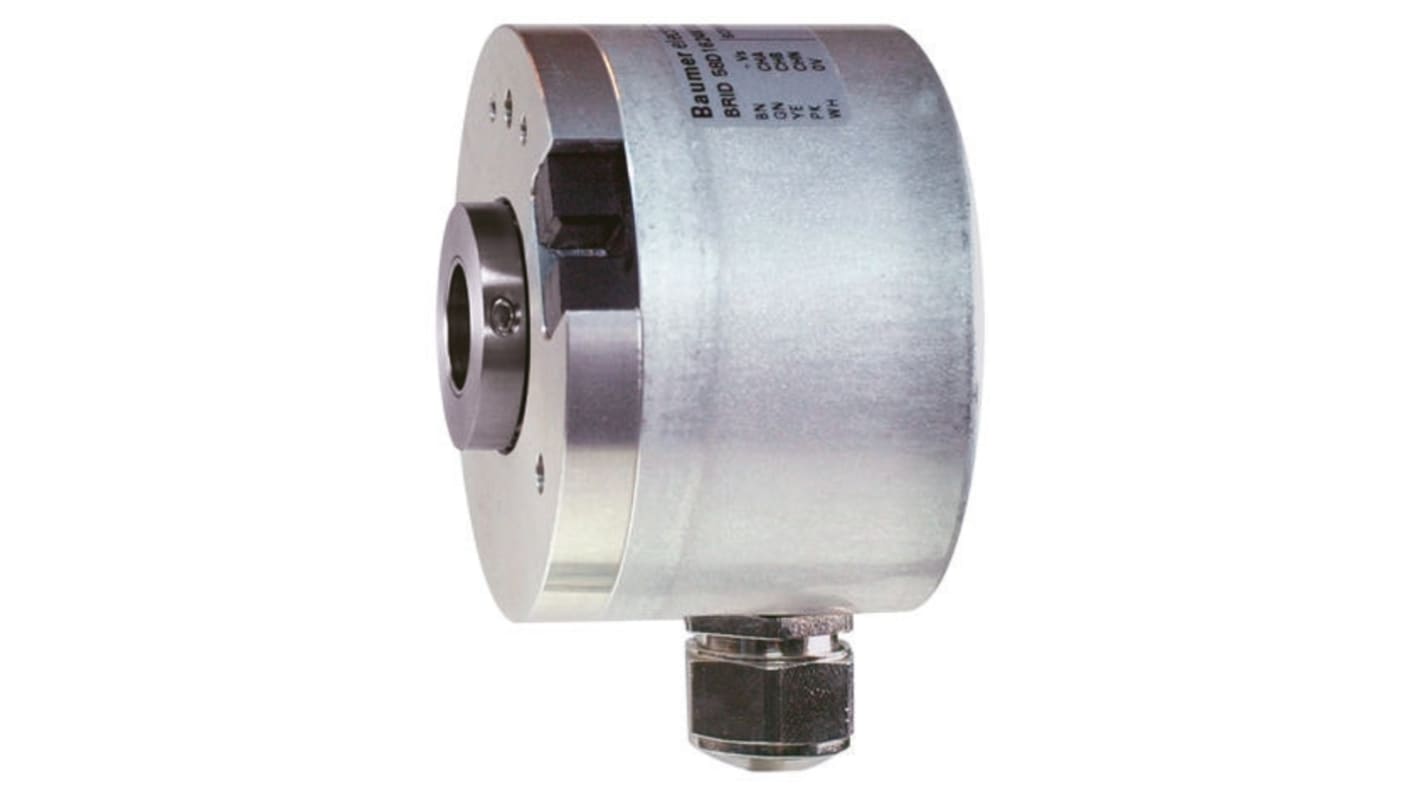

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£373.63
(exc. VAT)
£448.36
(inc. VAT)
- RS Stock No.:
- 542-5224
- Mfr. Part No.:
- BRIH 58 D16 24K 1024 P2 N
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Encoder Technology | Incremental | |
| Pulses Per Revolution | 1024 | |
| Series | BRIH 58D | |
| Maximum Revolutions | 12000rpm | |
| Output Signal Type | Push Pull | |
| Shaft Type | Hollow | |
| Shaft Diameter | 12mm | |
| Supply Voltage | 10 → 30 V dc | |
| Steps Per Revolution | 8192Steps | |
| IP Rating | IP65 | |
| Overall Height | 46.2mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +85°C | |
| Switching Frequency | 320 kHz | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Encoder Technology Incremental | ||
Pulses Per Revolution 1024 | ||
Series BRIH 58D | ||
Maximum Revolutions 12000rpm | ||
Output Signal Type Push Pull | ||
Shaft Type Hollow | ||
Shaft Diameter 12mm | ||
Supply Voltage 10 → 30 V dc | ||
Steps Per Revolution 8192Steps | ||
IP Rating IP65 | ||
Overall Height 46.2mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Switching Frequency 320 kHz | ||
- COO (Country of Origin):
- CH
BRIH series incremental hollow shaft encoder
Range of economic miniature hollow shaft encoders with M12 output.
Excellent resistance to shock and vibration.
"Push-pull" output signal, protection against short-circuits.
Aluminium housing and flange.
Compact.
Excellent resistance to shock and vibration.
"Push-pull" output signal, protection against short-circuits.
Aluminium housing and flange.
Compact.
Kubler
Push pull interface with inverted signals
Short circuit protection
Age and temperature compensation
Short circuit protection
Age and temperature compensation
