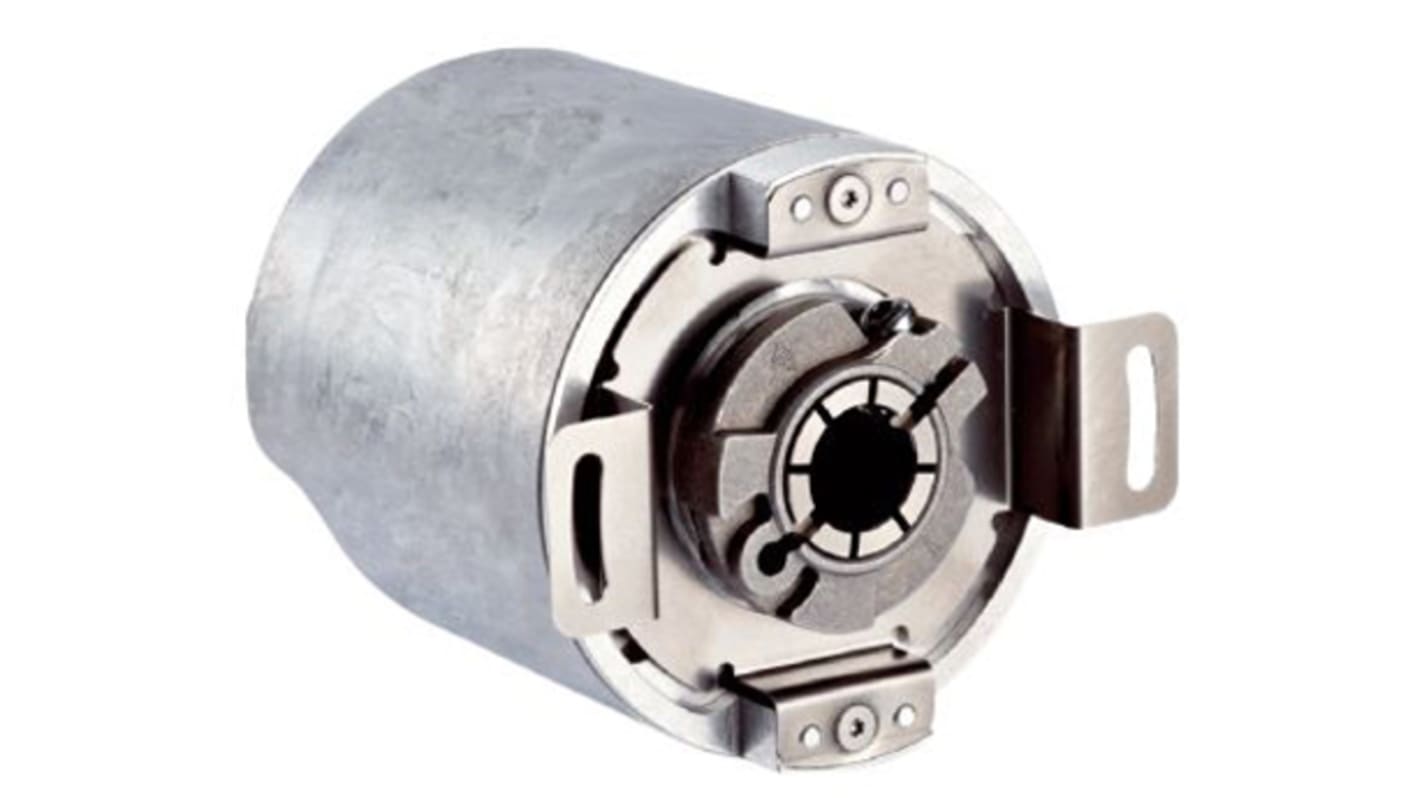

Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 14mm Shaft
- RS Stock No.:
- 136-7774
- Mfr. Part No.:
- 842E-MIP11BA
- Brand:
- Allen Bradley
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 136-7774
- Mfr. Part No.:
- 842E-MIP11BA
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Encoder Technology | Absolute | |
| Pulses Per Revolution | 262144ppr | |
| Series | 842E | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | Analogue, Binary | |
| Shaft Type | Hollow | |
| Shaft Diameter | 14mm | |
| Supply Voltage | 10 → 30 V | |
| Resolution | 18 Bit | |
| Steps Per Revolution | 262144Steps | |
| IP Rating | IP65, IP67 | |
| Interface | Ethernet | |
| Overall Width | 63mm | |
| Overall Depth | 71.5mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Hollow Shaft Flange | |
| Current Rating | ≤200 mA | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Encoder Technology Absolute | ||
Pulses Per Revolution 262144ppr | ||
Series 842E | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type Analogue, Binary | ||
Shaft Type Hollow | ||
Shaft Diameter 14mm | ||
Supply Voltage 10 → 30 V | ||
Resolution 18 Bit | ||
Steps Per Revolution 262144Steps | ||
IP Rating IP65, IP67 | ||
Interface Ethernet | ||
Overall Width 63mm | ||
Overall Depth 71.5mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Hollow Shaft Flange | ||
Current Rating ≤200 mA | ||
- COO (Country of Origin):
- DE
842E EtherNet/IP Absolute Encoders
Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.
Features and Benefits
EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated
Allen Bradley Absolute Encoder, 14mm Shaft Diameter, 10 to 30V DC Supply Voltage - 842E-MIP11BA
Do you need to monitor the movement of machinery in demanding conditions? Choose this hollow-shaft absolute encoder from Rockwell Automation's Allen Bradley range. By installing it with moving parts, you can measure the motion with an ultra-high accuracy of 18 bits. As your equipment moves, so does a disc in the encoder, which then generates a binary output signal for transmission to your control network. The device has a wide operating temperature range between -30°C and +85°C and can withstand relative humidity up to 90%, meaning it's a reliable option for use in challenging environments.
Features & Benefits
• Hollow shaft adjusts to different motor sizes, for versatile use
• Ethernet interface lets you transfer data in your network
• 10/100Mbps transmission speed for use at slower or faster transfer rates
• LED light system allows for quick and easy status monitoring
• Aluminium enclosure has an IP67 rating, so it's dust-tight and waterproof to a depth of one metre
• Ethernet interface lets you transfer data in your network
• 10/100Mbps transmission speed for use at slower or faster transfer rates
• LED light system allows for quick and easy status monitoring
• Aluminium enclosure has an IP67 rating, so it's dust-tight and waterproof to a depth of one metre
Standards and Certifications
• CE Marked for all applicable directives
• EN 61000-6-2
• EN 61000-6-3
• IEC 60529
• IEC 61784-1
• EN 61000-6-2
• EN 61000-6-3
• IEC 60529
• IEC 61784-1
Can I mount this unit in a confined space?
As this compact cylindrical unit has a depth of 71.5mm, a height of 60mm and a diameter of 63mm, it doesn't take up much space.
Allen Bradley Rotary Encoders
