Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Solid Type, 3/8in Shaft

View all Motion Control Sensors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
136-7764
Mfr. Part No.:
842E-MIP1BA
Brand:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Encoder Technology

Absolute

Series

842E

Pulses Per Revolution

262144ppr

Maximum Revolutions

9000rpm

Output Signal Type

Analogue, Binary

Shaft Type

Solid

Supply Voltage

10 → 30 V

Shaft Diameter

3/8in

Resolution

18 Bit

Steps Per Revolution

262144Steps

IP Rating

IP65, IP67

Interface

Ethernet

Overall Width

60mm

Overall Depth

84mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+85°C

Mounting Type

Clamping Flange

Current Rating

≤200 mA

COO (Country of Origin):
DE

842E EtherNet/IP Absolute Encoders


Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.

Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

Features and Benefits


EtherNet/IP interface

Simple and fast set up

Single-turn 18-bit resolution or multi-turn 30-bit resolution

Embedded switch

Device Level Ring (DLR)

Revolution divisor

Solid and blind hollow shaft options

M12 Connectors

Status indication LEDs

Hardware/software IP address setting

IP67 Rated

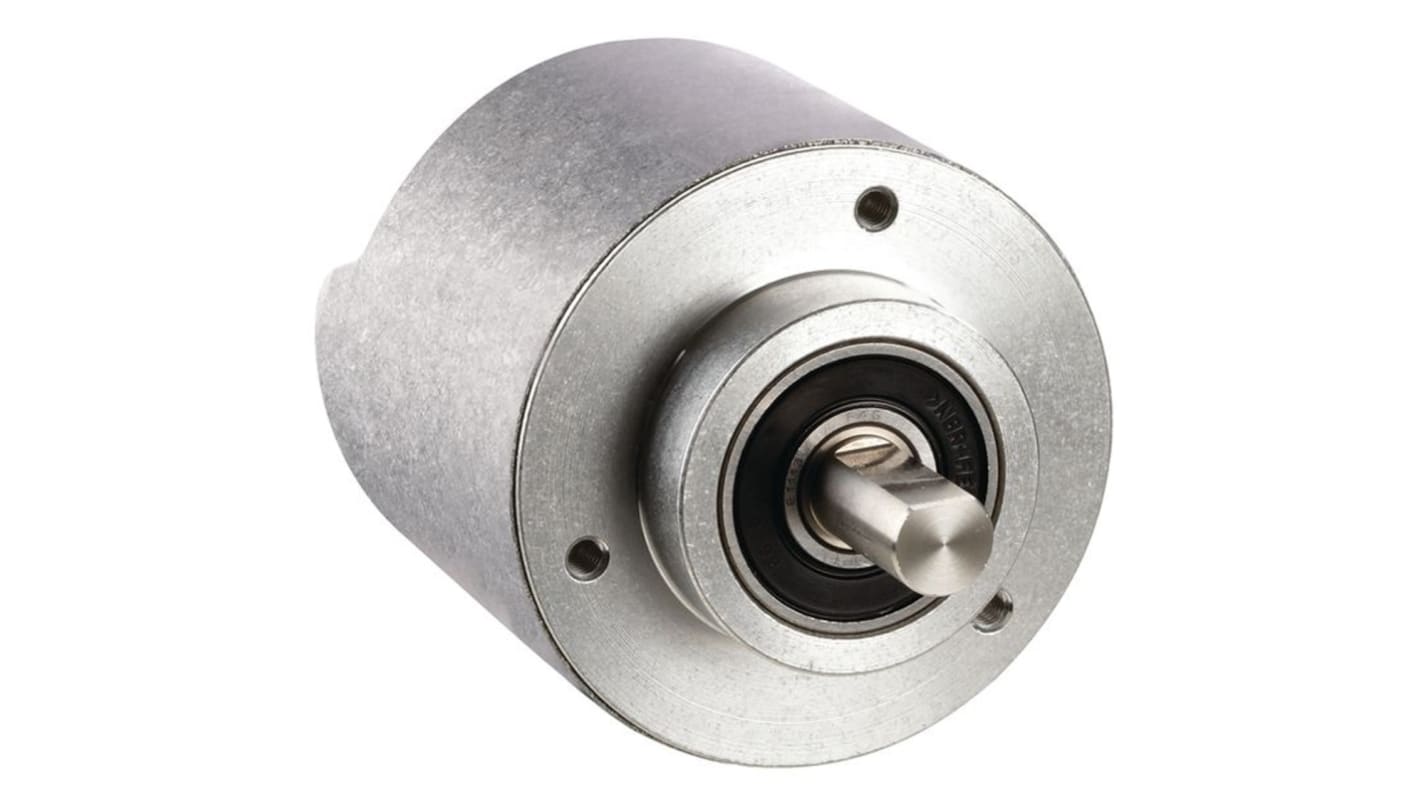

Allen Bradley Absolute Encoder, 18 Bit Resolution, Solid Type - 842E-MIP1BA


Use this absolute encoder from Rockwell Automation's Allen Bradley range to accurately monitor the motion of mechanical parts in your equipment. As a component moves, the unit's 3/8-inch-wide solid shaft rotates to a new position, which the encoder reads precisely thanks to its ultra-high 18-bit resolution. A built-in Ethernet/IP switch supports network connectivity, so you can easily send signals to your automation control system. The device's aluminium housing is resistant to corrosion, so it delivers a long service life in challenging environments.

Features & Benefits


• Transmission speed of 10/100Mbps to allow for use at fast or slow transfer rates
• LED signals for easy status monitoring
• Wide operating temperature range between -30°C and +85°C indicates it functions in demanding conditions
• Housing has IP67 rating, meaning it's dust-tight and waterproof up to a depth of 1m

Standards and Certifications


• EN 61000-6-2
• EN 61000-6-3
• CE Marked for all applicable directives

Can I use this unit in humid environments?


Yes, you can. As the unit has a maximum operating humidity level up to 90% RH, you can use it in areas where high levels of water vapour are likely.
