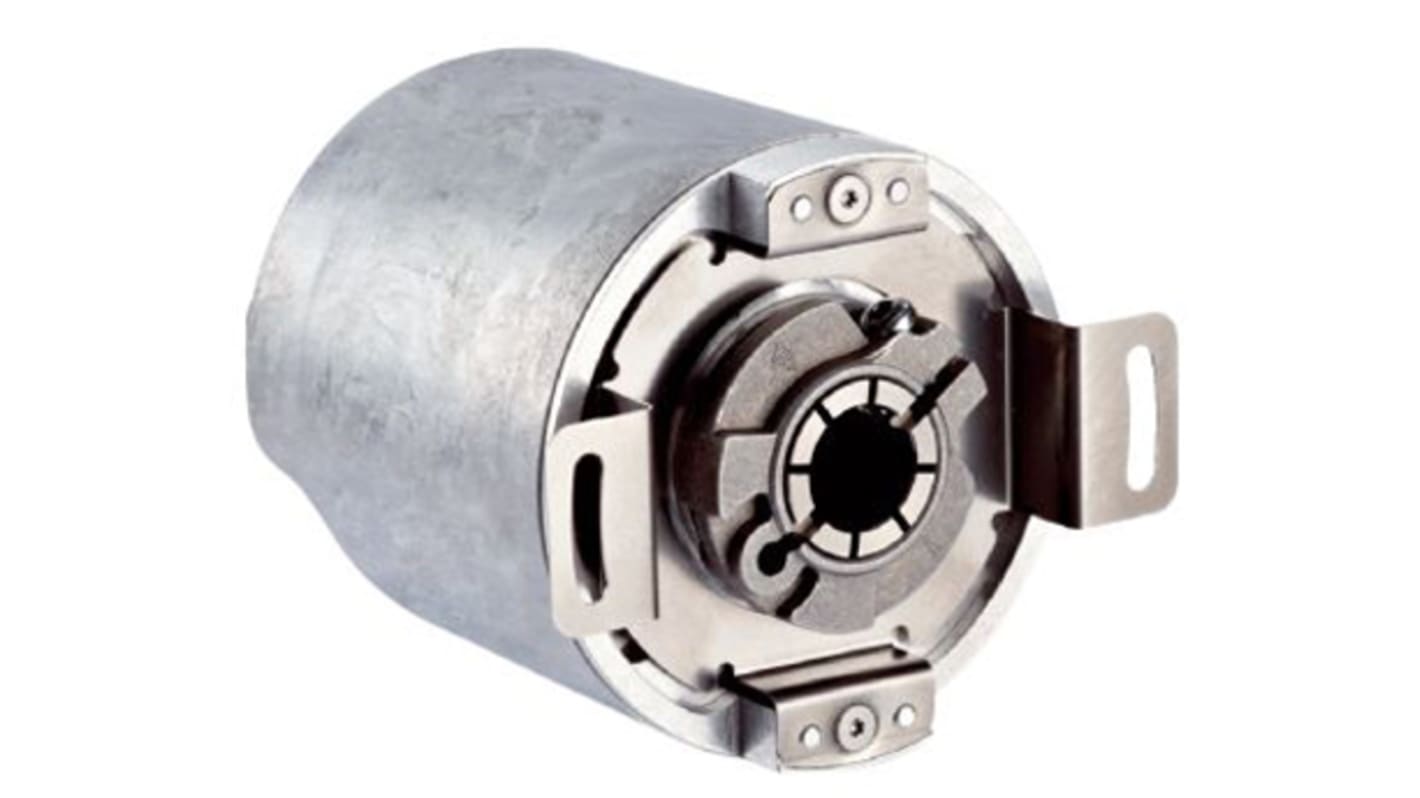

Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 8mm Shaft
- RS Stock No.:
- 136-7757
- Mfr. Part No.:
- 842E-SIP6BA
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£1,473.75
(exc. VAT)
£1,768.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £1,473.75 |
*price indicative
- RS Stock No.:
- 136-7757
- Mfr. Part No.:
- 842E-SIP6BA
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Encoder Technology | Absolute | |
| Series | 842E | |
| Pulses Per Revolution | 262144ppr | |
| Maximum Revolutions | 6000rpm | |
| Output Signal Type | Analogue, Binary | |
| Shaft Type | Hollow | |
| Shaft Diameter | 8mm | |
| Supply Voltage | 10 → 30 V | |
| Resolution | 18 Bit | |
| Steps Per Revolution | 262144Steps | |
| IP Rating | IP65, IP67 | |
| Interface | Ethernet | |
| Overall Width | 63mm | |
| Overall Depth | 71.5mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Mounting Type | Hollow Shaft Flange | |
| Current Rating | ≤200 mA | |
Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Encoder Technology Absolute | ||
Series 842E | ||
Pulses Per Revolution 262144ppr | ||
Maximum Revolutions 6000rpm | ||
Output Signal Type Analogue, Binary | ||
Shaft Type Hollow | ||
Shaft Diameter 8mm | ||
Supply Voltage 10 → 30 V | ||
Resolution 18 Bit | ||
Steps Per Revolution 262144Steps | ||
IP Rating IP65, IP67 | ||
Interface Ethernet | ||
Overall Width 63mm | ||
Overall Depth 71.5mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Hollow Shaft Flange | ||
Current Rating ≤200 mA | ||
- COO (Country of Origin):
- DE
842E EtherNet/IP Absolute Encoders
Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.
Features and Benefits
EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated
Allen Bradley Absolute Encoder, 8mm Shaft Diameter, -30°C to +85°C Operating Temperature - 842E-SIP6BA
Measure object positions and transmit the information to the sensors in your machinery using this absolute encoder from Rockwell Automation's Allen Bradley range. As it supports Device Level Ring, it's able to overcome any single failure with minimal recovery time. Dual Ethernet ports provide a secure and reliable LAN connection for speedy and efficient data transfer. The single-turn device is suitable for applications in need of high accuracy and high rotational speeds. Absolute encoders like this can be found in material-handling equipment and the automotive industry.
Features & Benefits
• Supply voltage range between 10 and 30V for installation in low-voltage equipment
• Resolution of 18 bit for reliability
• Maximum revolutions of 6000rpm to suit high-speed applications
• Broad operating temperature range between -30°C and +85°C for use in challenging conditions
• Low current rating of below 200mA makes it an energy-efficient choice
• Resolution of 18 bit for reliability
• Maximum revolutions of 6000rpm to suit high-speed applications
• Broad operating temperature range between -30°C and +85°C for use in challenging conditions
• Low current rating of below 200mA makes it an energy-efficient choice
Standards and Certifications
• BS EN 61340-5-1:2007
• CE
• EN 61000-6-2
• CE
• EN 61000-6-2
How do I mount this encoder?
You can flange mount this component for a secure and vibration-proof attachment to compatible machinery.
