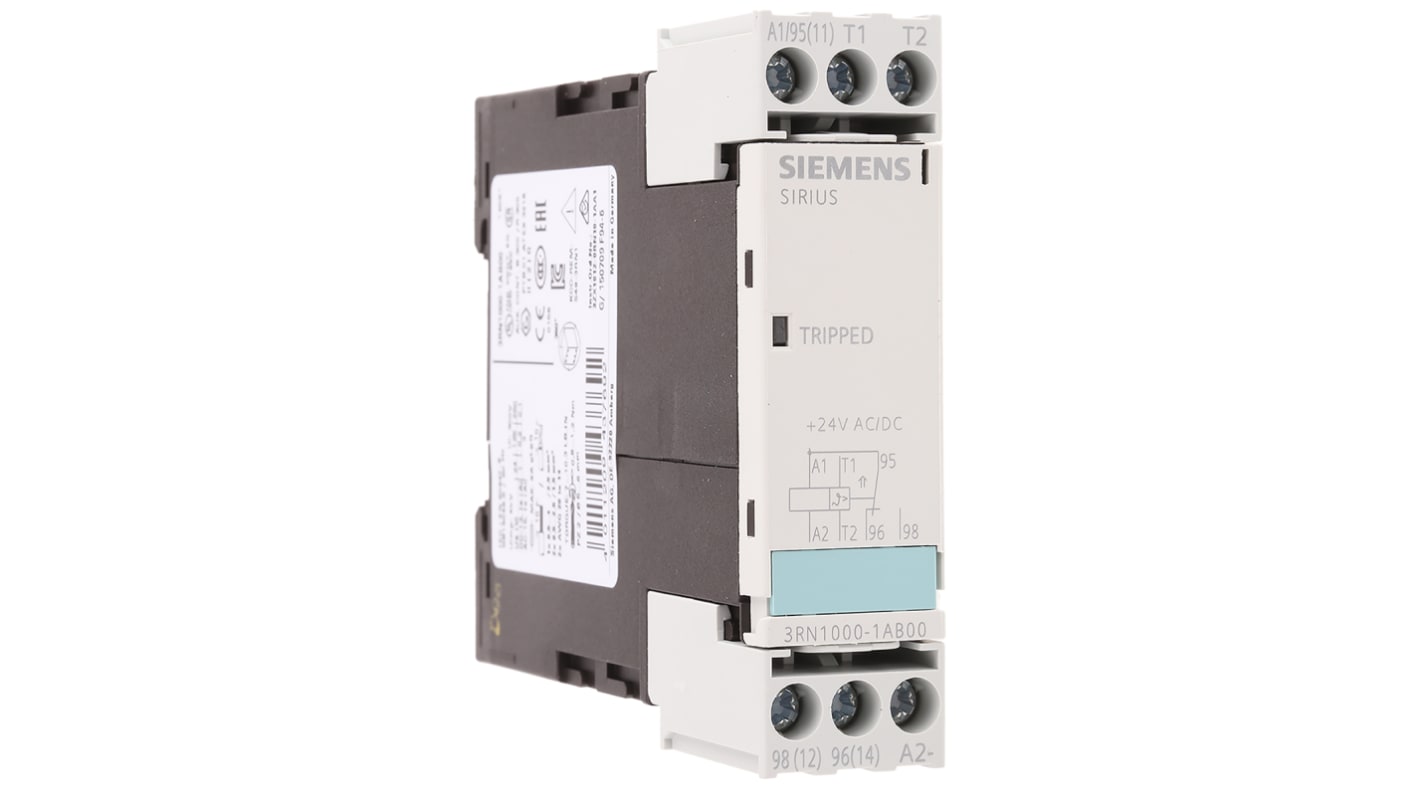

Siemens Thermistor motor protection relay Monitoring Relay, SPDT
- RS Stock No.:
- 417-9879
- Mfr. Part No.:
- 3RN1000-1AB00
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£54.43
(exc. VAT)
£65.32
(inc. VAT)
- RS Stock No.:
- 417-9879
- Mfr. Part No.:
- 3RN1000-1AB00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Monitoring Application | Thermistor motor protection relay | |
| Contact Configuration | SPDT | |
| Temperature Sensing Range | +60 → +180°C | |
| Temperature Sensitivity | Overtemperature, Undertemperature | |
| Maximum Temperature Sensed | +180°C | |
| Dimensions | 91 x 22.5 x 83mm | |
| Minimum Operating Temperature | -25°C | |
| Minimum Temperature Sensed | +60°C | |
| Operating Temperature Range | -25 → +60°C | |
| Length | 91mm | |
| Maximum Operating Temperature | +60°C | |
| Width | 22.5mm | |
| Height | 83mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Monitoring Application Thermistor motor protection relay | ||
Contact Configuration SPDT | ||
Temperature Sensing Range +60 → +180°C | ||
Temperature Sensitivity Overtemperature, Undertemperature | ||
Maximum Temperature Sensed +180°C | ||
Dimensions 91 x 22.5 x 83mm | ||
Minimum Operating Temperature -25°C | ||
Minimum Temperature Sensed +60°C | ||
Operating Temperature Range -25 → +60°C | ||
Length 91mm | ||
Maximum Operating Temperature +60°C | ||
Width 22.5mm | ||
Height 83mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
3RN10-00
Standard 22.5mm module width
Compact, low cost unit, with LED 'tripped' indicator and 1 change over relay contact. Reset is automatic when sensor has cooled down. Control and signalling voltages should have the same potential.
Note
!!! Phase-out product !!! This product is in obsolescence mode and is due for discontinuation by the manufacturer. We recommend that you review the preferred successor proposed by the manufacturer: 175-2269 (3RN2000-1AA30)
Siemens 3RN1 Thermistor Relays
3RN1 thermistor relays are a range of thermal protection devices, which when used in conjunction with external PTC thermistors, offer temperature monitoring of electrical drives, transformers and other critical components such as bearings. The 3RN1 range operates on the principle of closed-circuit current and are therefore self monitoring in the event of sensor wire breakage.
