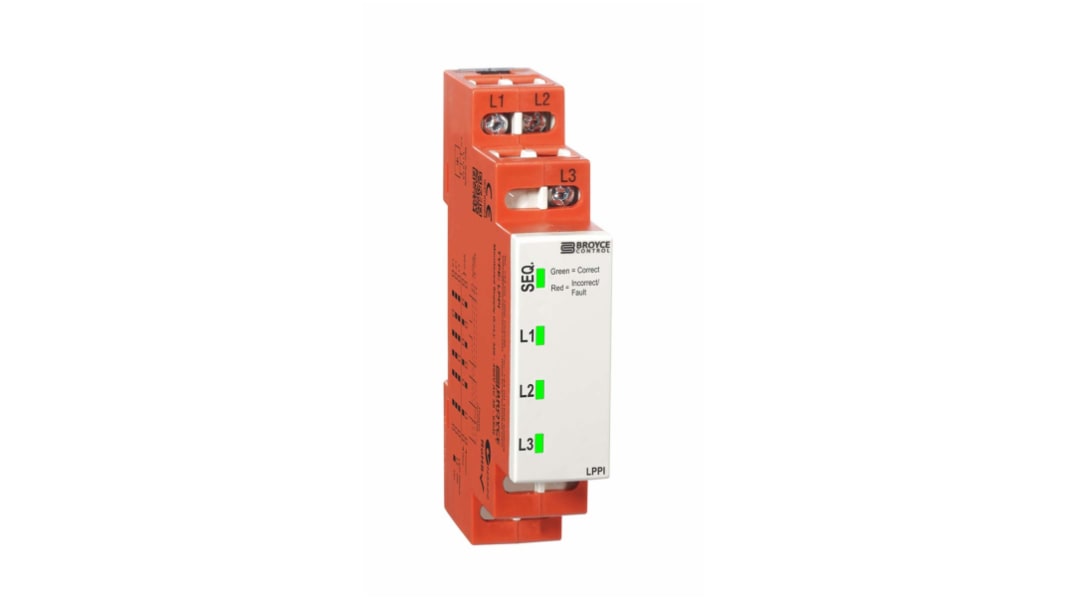

Broyce Control Phase Monitoring Relay, 3 Phase, 320 → 490V ac, DIN Rail
- RS Stock No.:
- 206-1444
- Mfr. Part No.:
- LPPI
- Brand:
- Broyce Control
82 In stock - FREE next working day delivery available
Price Each
£43.50
(exc. VAT)
£52.20
(inc. VAT)
| Units | Per unit |
| 1 + | £43.50 |
- RS Stock No.:
- 206-1444
- Mfr. Part No.:
- LPPI
- Brand:
- Broyce Control
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The Broyce Control monitors it’s own three-phase supply and indicates the status of each connected phase along with whether the phase sequence is correct or not. If a phase is lost, the corresponding phase present LED extinguishes and colour of the status LED changes from green “Correct” to red “Incorrect”. If the phase sequence is reversed, only the status LED changes from green “Correct” to red “Incorrect”.
Ideal for control panels, switchboards, distribution systems that require visual indication and status of a 3-phase power supply
Used to indicate that all phases are present and phase sequence is correct (or incorrect)
Designed for use on 3-phase, 3-wire supplies
Used to indicate that all phases are present and phase sequence is correct (or incorrect)
Designed for use on 3-phase, 3-wire supplies
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Phase |
| Electrical Phase | 3 |
| Voltage Sensing Range | 320 → 490V ac |
| Mounting Type | DIN Rail |
| Phase Sensitivity | Phase Failure, Phase Sequence |
| Frequency Sensing Range | 48 → 63Hz |
| Series | L |
| Operating Temperature Range | +60°C |
| Dimensions | 59 x 17.5 x 89mm |
| Minimum Voltage Sensed | 490V ac/dc |
| Length | 59mm |
| Maximum Operating Temperature | +60°C |
| Width | 17.5mm |
| Height | 89mm |
| Minimum Operating Temperature | -20°C |
| Terminal Type | Screw |
