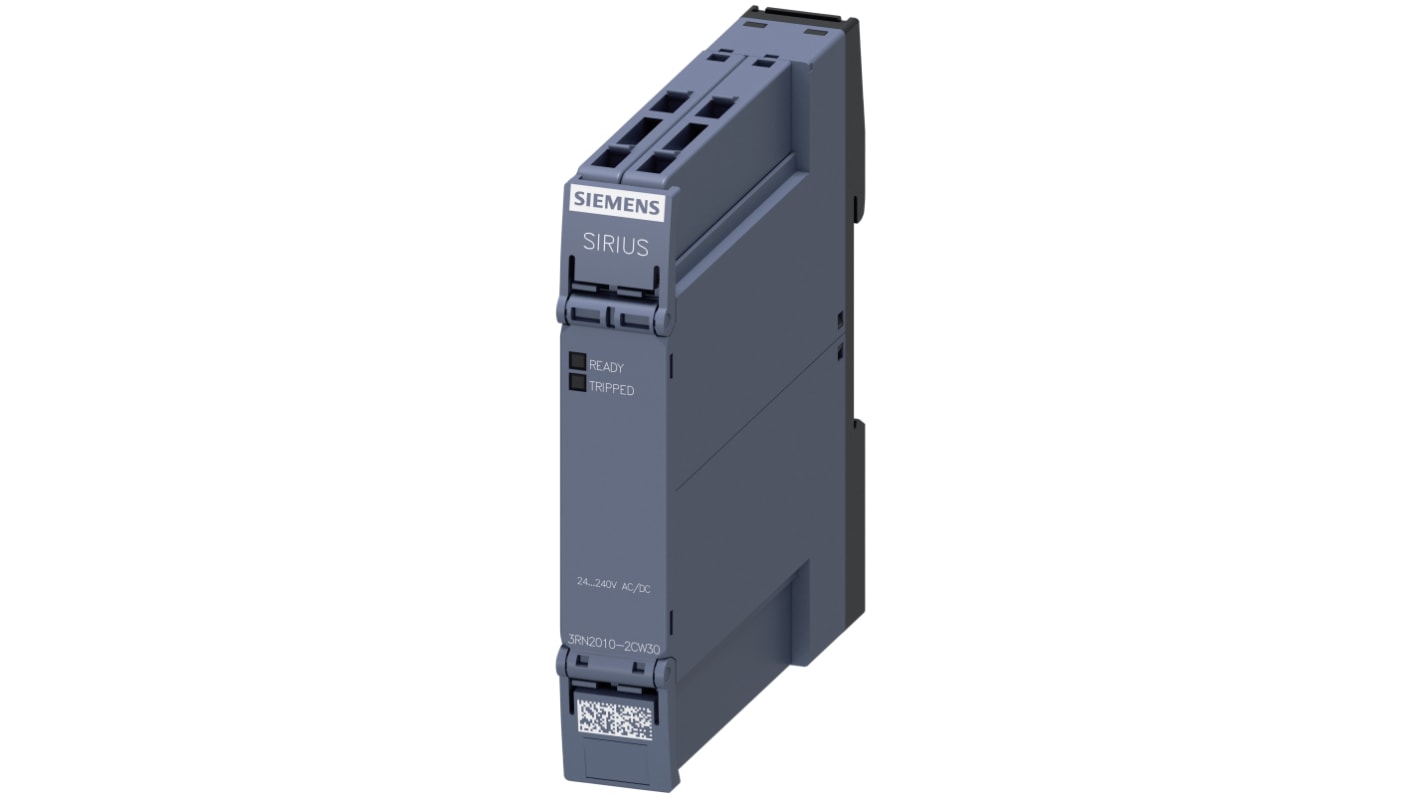

Siemens Thermistor Motor Protection Monitoring Relay With SPDT Contacts, 240 V ac/dc Supply Voltage, Motor Voltage

  • RS Stock No. 175-2280
  • Mfr. Part No. 3RN2010-2CW30
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Thermistor motor protection relay Compact evaluation unit 17.5 mm enclosure Spring-type terminal 1 NO contact, 1 NC contact US = 24 V-240 V AC/DC Auto RESET suitable for bimetallic switch 2 LEDs (Ready/Tripped) galvanic isolation

Specifications
Attribute Value
Monitoring Application Thermistor motor temperature protection
Supply Voltage 240 V ac/dc
Contact Configuration SPDT
Voltage Sensitivity Motor Voltage
Voltage Sensing Range 24 → 240 V ac/dc
Mounting Type DIN Rail
Height 100mm
Dimensions 17.5 x 91.6 x 100 mm
Maximum Operating Temperature +60°C
Terminal Type Cage Clamp
Operating Temperature Range -25 → +60 °C
Width 91.6mm
Series 3RN2
Minimum Operating Temperature -25°C
Length 17.5mm
1 In stock for delivery within 1 working days
Price Each
£ 59.92
(exc. VAT)
£ 71.90
(inc. VAT)
Units
Per unit
1 - 4
£59.92
5 +
£56.92
Not available for guaranteed pre 9am/10am delivery
