RS PRO RS-125 Moisture Meter, Maximum Measurement 0.2 → 2 (Building Material) %, 6 → 44 (Wood) %

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

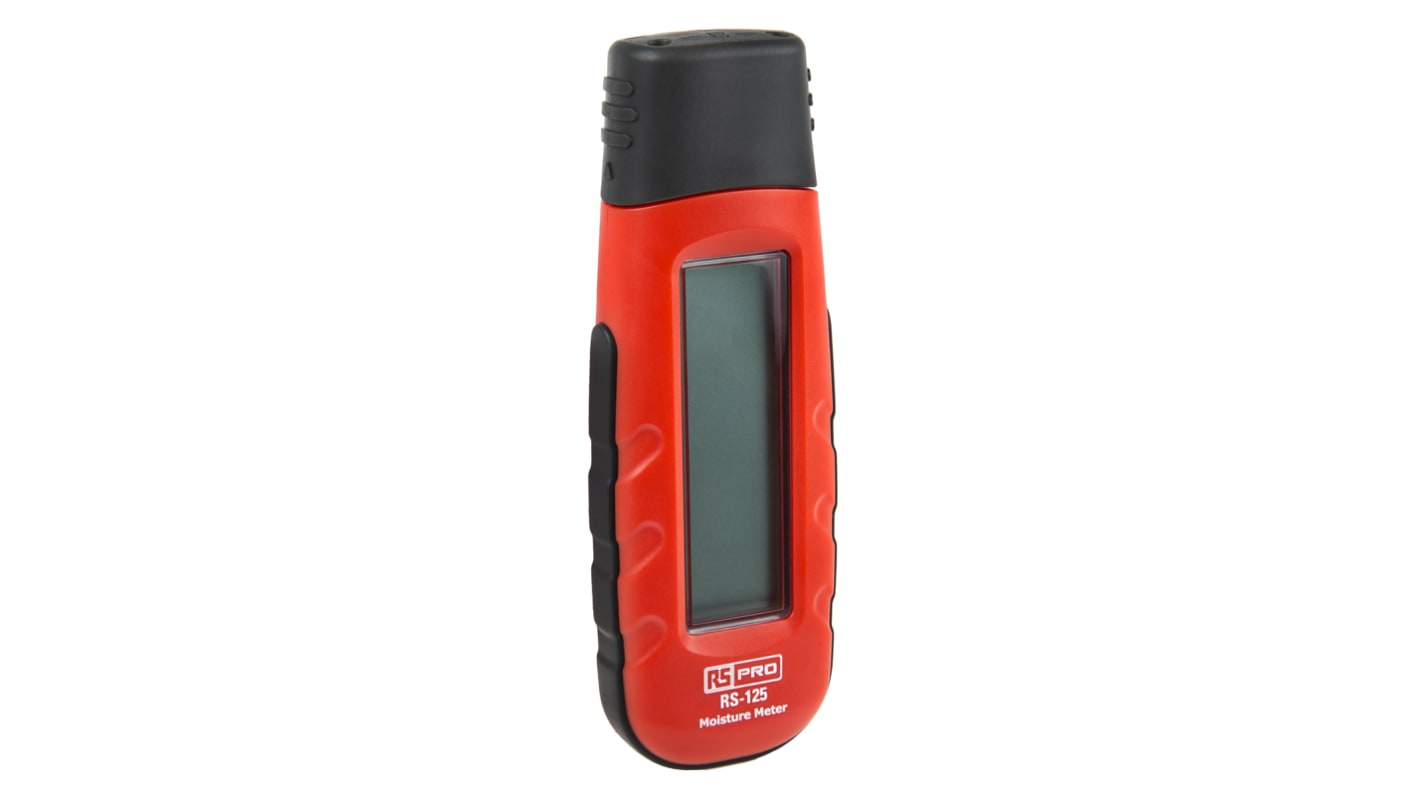

RS PRO RS-125 Moisture Meter

Introducing the RS PRO Multifunctional Moisture Meter, a highly reliable device used to quickly and effectively measure moisture content in a range of materials, including wood, plaster and concrete. The RS PRO moisture meter features two pins that are placed onto the material surface for accurate moisture measurement that’s easy to use, portable and suitable for use in most environments.

Features and Benefits:

• Two pin moisture content reading for accurate measurement
• Replaceable pins, making it more cost-effective than replacing the whole unit
• Auto Power off if idle for longer than 15 minutes to save battery power
• Battery check function
• Conforms to CE, EMC, EN: 61326 standards

Applications:

Moisture meters are pieces of equipment that are used for measuring the percentage of water in a substance or material. By using a moisture meter, it can be determined if the material is ready for use, unexpectedly wet or dry, or otherwise in need of further inspection. Wood and paper products are very sensitive to their moisture content.

A moisture meter is often used in the following applications:
• Property and construction
• Flooring Contractors
• Furniture makers and woodworking

What is the difference between pin and pinless?

A pin-type moisture meter (or damp meter) contains metal points that are inserted into the material to take a reading, whereas a pinless meter uses non-invasive technology to detect how waveforms are affected by the presence of moisture in the material.

What materials can a moisture meter be used on?

This moisture meter can be used to measure a variety of building materials, and much more like:
• Wood
• Plaster
• Hay
• Screed
• Concrete

Note:

Characteristics due to growth or type of wood and deviating wood temperatures may make it necessary to correct the displayed values. Measurements should be carried out according to the drying and weighing/calcium carbide method in the case of inspections or for reference purposes

Specifications
Attribute Value
Maximum Measurement 0.2 → 2 (Building Material) %, 6 → 44 (Wood) %
Best Accuracy ±0.05 (Materials) %, ±1 (Wood) %
Display Type Analogue
Scale Type Building Materials, Wood
Power Source Battery
Battery Type CR 2032 x 3
Dimensions 48 x 33 x 140mm
Weight 93g
Minimum Operating Temperature 0°C
Height 140mm
Length 48mm
Maximum Operating Temperature +60°C
Model Number p RS-125
Width 33mm
169 In stock for FREE next working day delivery
Price Each
£ 34.20
(exc. VAT)
£ 41.04
(inc. VAT)
Units
Per unit
1 +
£34.20
