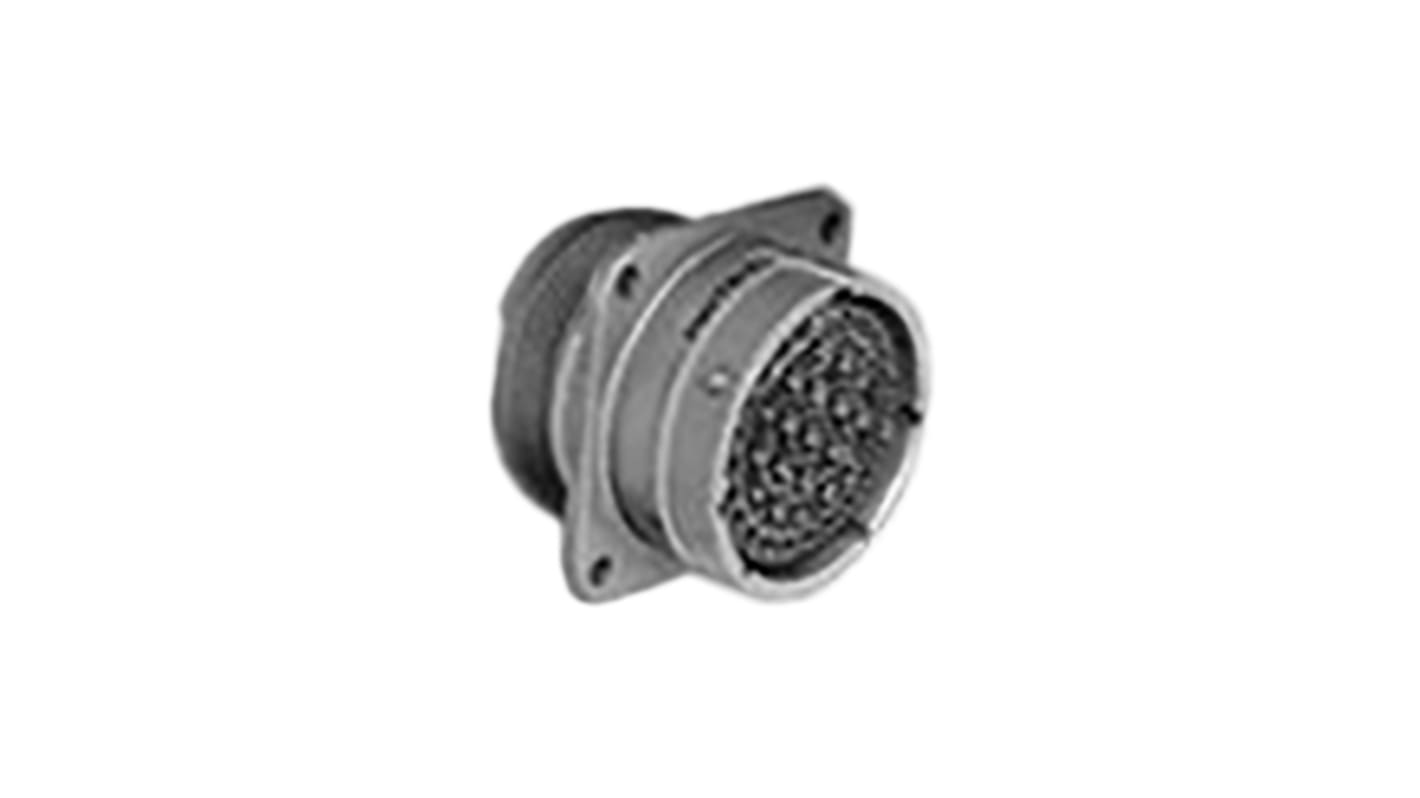

Amphenol Aerospace, MS 10 Way Wall Mount with Narrow Flange MIL Spec Circular Connector ReceptacleGreen, Pin
- RS Stock No.:
- 875-1699
- Mfr. Part No.:
- MS3470W12-10P
- Brand:
- Amphenol Aerospace
Discontinued
- RS Stock No.:
- 875-1699
- Mfr. Part No.:
- MS3470W12-10P
- Brand:
- Amphenol Aerospace
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Aerospace | |
| Number of Contacts | 10 | |
| Gender | Female | |
| Contact Gender | Male | |
| Current Rating | 7.5 (Size 20)A | |
| Voltage Rating | 600 V ac | |
| Shell Size | 12 | |
| Mounting Type | Wall Mount with Narrow Flange | |
| Military Standard | MIL-DTL-26482 | |
| Termination Method | Crimp | |
| Mating Type | Bayonet | |
| Body Orientation | Straight | |
| Housing Material | Aluminium | |
| Series | MS | |
| Maximum Operating Temperature | +200°C | |
| Colour | Green | |
| Minimum Operating Temperature | -65°C | |
| Shell Plating | Olive Drab Cadmium | |
| Select all | ||
|---|---|---|
Brand Amphenol Aerospace | ||
Number of Contacts 10 | ||
Gender Female | ||
Contact Gender Male | ||
Current Rating 7.5 (Size 20)A | ||
Voltage Rating 600 V ac | ||
Shell Size 12 | ||
Mounting Type Wall Mount with Narrow Flange | ||
Military Standard MIL-DTL-26482 | ||
Termination Method Crimp | ||
Mating Type Bayonet | ||
Body Orientation Straight | ||
Housing Material Aluminium | ||
Series MS | ||
Maximum Operating Temperature +200°C | ||
Colour Green | ||
Minimum Operating Temperature -65°C | ||
Shell Plating Olive Drab Cadmium | ||
Non Compliant
- COO (Country of Origin):
- MX
MIL-DTL-26482 Series 2, Matrix Wall Mount Receptacle
The Matrix® MIL-DTL-26482 Series 2 Wall Mount Receptacles from Amphenol®.
Amphenol® MIL-DTL-26482 Series 2 - Matrix®
Amphenol Aerospace offers the Matrix® Product line of MIL-DTL-26482, Series 2 connectors. This series provides a bayonet coupling connector with crimp rear insertable, rear releasable contacts. MIL-DTL-26482 supersedes MIL-C-26482.
Shell styles within this family include: Wall mount with either a narrow or a wide flange, jam nut single hole mount, cable connecting receptacles along with standard plugs or plugs with RFI grounding fingers in shell sizes 8 to 24.
Shell styles within this family include: Wall mount with either a narrow or a wide flange, jam nut single hole mount, cable connecting receptacles along with standard plugs or plugs with RFI grounding fingers in shell sizes 8 to 24.
MS and Proprietary versions available
Accommodation of contact sizes 20, 16 and 12
34 insert arrangement patterns available, minimum of 3 → maximum of 55 circuits
Alternate positioning available
Various finishes are available
Accommodation of contact sizes 20, 16 and 12
34 insert arrangement patterns available, minimum of 3 → maximum of 55 circuits
Alternate positioning available
Various finishes are available
Note
Connectors sold as mil-spec connectors will have mil-spec markings on the insert (a "snail-trail" designating the numerical path).
