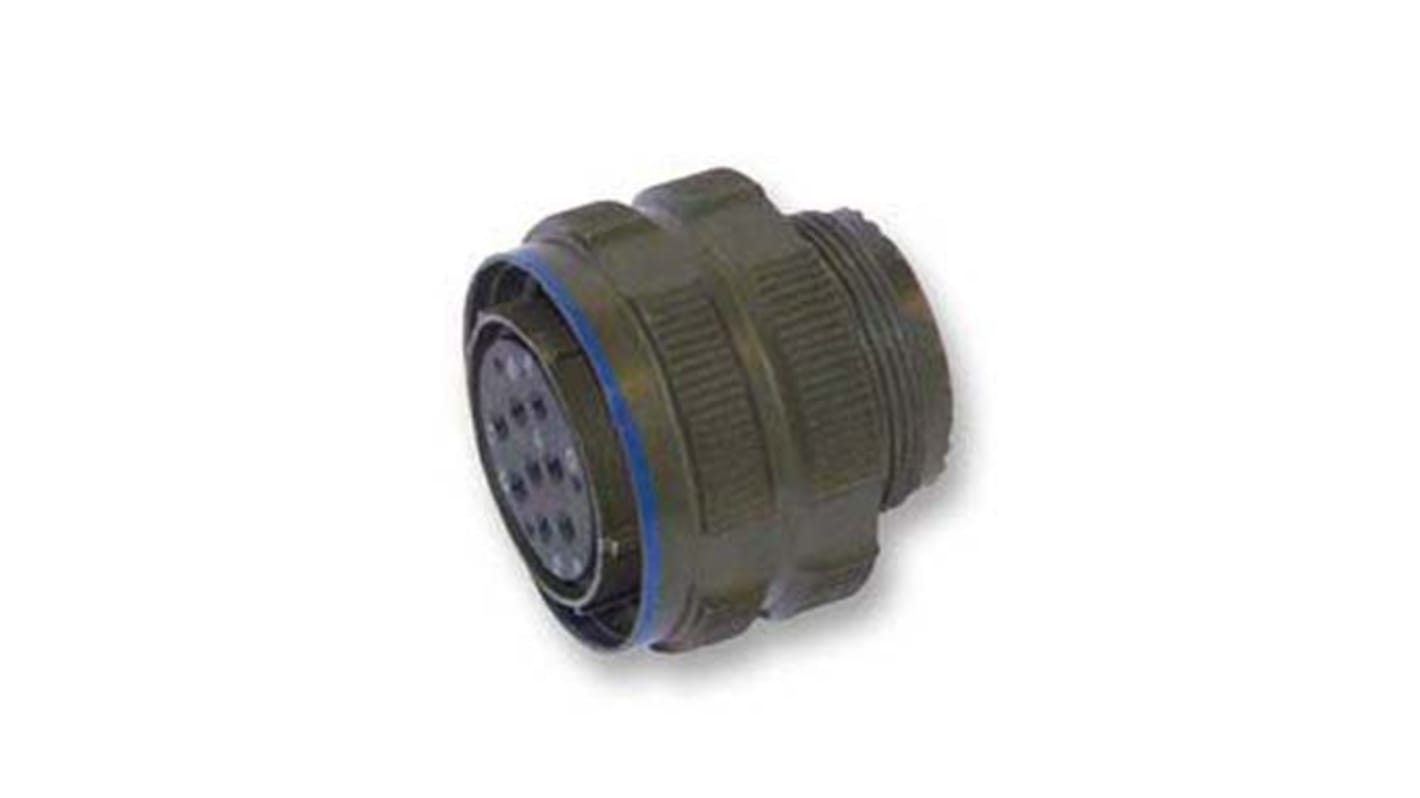

Amphenol Limited, D38999 22 Way Free Hanging MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 13, Quick
- RS Stock No.:
- 875-1557
- Mfr. Part No.:
- D38999/26WC35PN
- Brand:
- Amphenol Limited
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 875-1557
- Mfr. Part No.:
- D38999/26WC35PN
- Brand:
- Amphenol Limited
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Limited | |
| Number of Contacts | 22 | |
| Gender | Male | |
| Contact Gender | Male | |
| Current Rating | 5 (Size 22D)A | |
| Voltage Rating | 400 V ac, 550 V dc | |
| Shell Size | 13 | |
| Mounting Type | Free Hanging | |
| Military Standard | MIL-DTL-38999 | |
| Termination Method | Crimp | |
| Mating Type | Quick Coupling Threaded | |
| Connector Size | Subminiature | |
| Body Orientation | Straight | |
| Series | D38999 | |
| Housing Material | Aluminium | |
| Maximum Operating Temperature | +175°C | |
| Shell Plating | Olive Drab Cadmium | |
| Colour | Green | |
| Strain Relief | Yes | |
Select all | ||
|---|---|---|
Brand Amphenol Limited | ||
Number of Contacts 22 | ||
Gender Male | ||
Contact Gender Male | ||
Current Rating 5 (Size 22D)A | ||
Voltage Rating 400 V ac, 550 V dc | ||
Shell Size 13 | ||
Mounting Type Free Hanging | ||
Military Standard MIL-DTL-38999 | ||
Termination Method Crimp | ||
Mating Type Quick Coupling Threaded | ||
Connector Size Subminiature | ||
Body Orientation Straight | ||
Series D38999 | ||
Housing Material Aluminium | ||
Maximum Operating Temperature +175°C | ||
Shell Plating Olive Drab Cadmium | ||
Colour Green | ||
Strain Relief Yes | ||
Non Compliant
TV series Straight plugs
Amphenol® MILDTL-38999 Series III is designed for the harshest of environments and most demanding of applications.
Features and Benefits
• Connector delivered with crimp contacts
• Rapid coupling via a triple-start thread
• Shell → shell or metal → metal bottoming
• Improved EMI shielding
• Rapid coupling via a triple-start thread
• Shell → shell or metal → metal bottoming
• Improved EMI shielding
Amphenol MIL-DTL-38999 III - Tri-Start TV
Aluminium shell connectors
Receptacles are intermountable with MIL-DTL-38999 series I standard (same panel drilling)
Receptacles are intermountable with MIL-DTL-38999 series I standard (same panel drilling)
