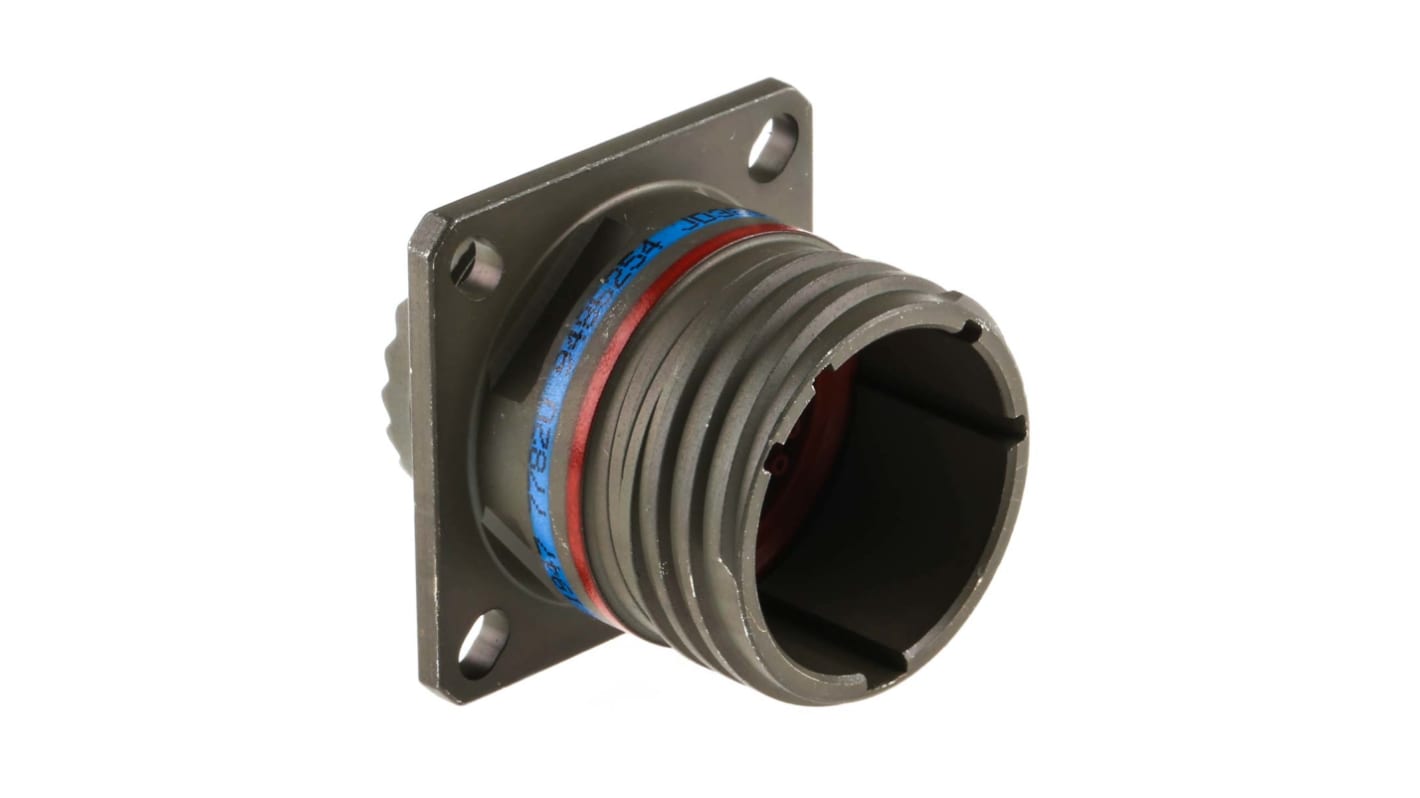

Amphenol Limited, D38999 37 Way Wall Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 15, Quick

RS Stock No.:: 875-1510
Mfr. Part No.:: D38999/20WD35PN
Brand:: Amphenol Limited

Amphenol Limited, D38999 37 Way Wall Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 15, Quick

5 In stock - FREE next working day delivery available

2 available from Europe for delivery within 1 working day(s).

Added

Price Each

£52.61

(exc. VAT)

£63.13

(inc. VAT)

Units	Per unit
1 +	£52.61

RS Stock No.:: 875-1510
Mfr. Part No.:: D38999/20WD35PN
Brand:: Amphenol Limited

Technical Reference

Datasheet

Legislation and Compliance

Non Compliant

COO (Country of Origin):: GB

Product Details

TV Series Wall Mount Receptacle

Amphenol® MILDTL-38999 Series III designed for the harshest of environments and most demanding of applications.

Versatile
Rugged
Rapid coupling via a triple-start thread
Shell → shell or metal → metal bottoming
Improved EMI shielding

Amphenol MIL-DTL-38999 III - Tri-Start TV

Aluminium shell connectors
Receptacles are intermountable with MIL-DTL-38999 series I standard (same panel drilling)

Specifications

Attribute	Value
Number of Contacts	37
Gender	Female
Contact Gender	Male
Current Rating	5 (Size 22D)A
Voltage Rating	400 V ac, 550 V dc
Shell Size	15
Mounting Type	Wall Mount
Military Standard	MIL-DTL-38999
Termination Method	Crimp
Mating Type	Quick Coupling Threaded
Connector Size	Subminiature
Body Orientation	Straight
Series	D38999
Housing Material	Aluminium
Shell Plating	Olive Drab Cadmium
Colour	Green
Maximum Operating Temperature	+175°C
Strain Relief	Yes
