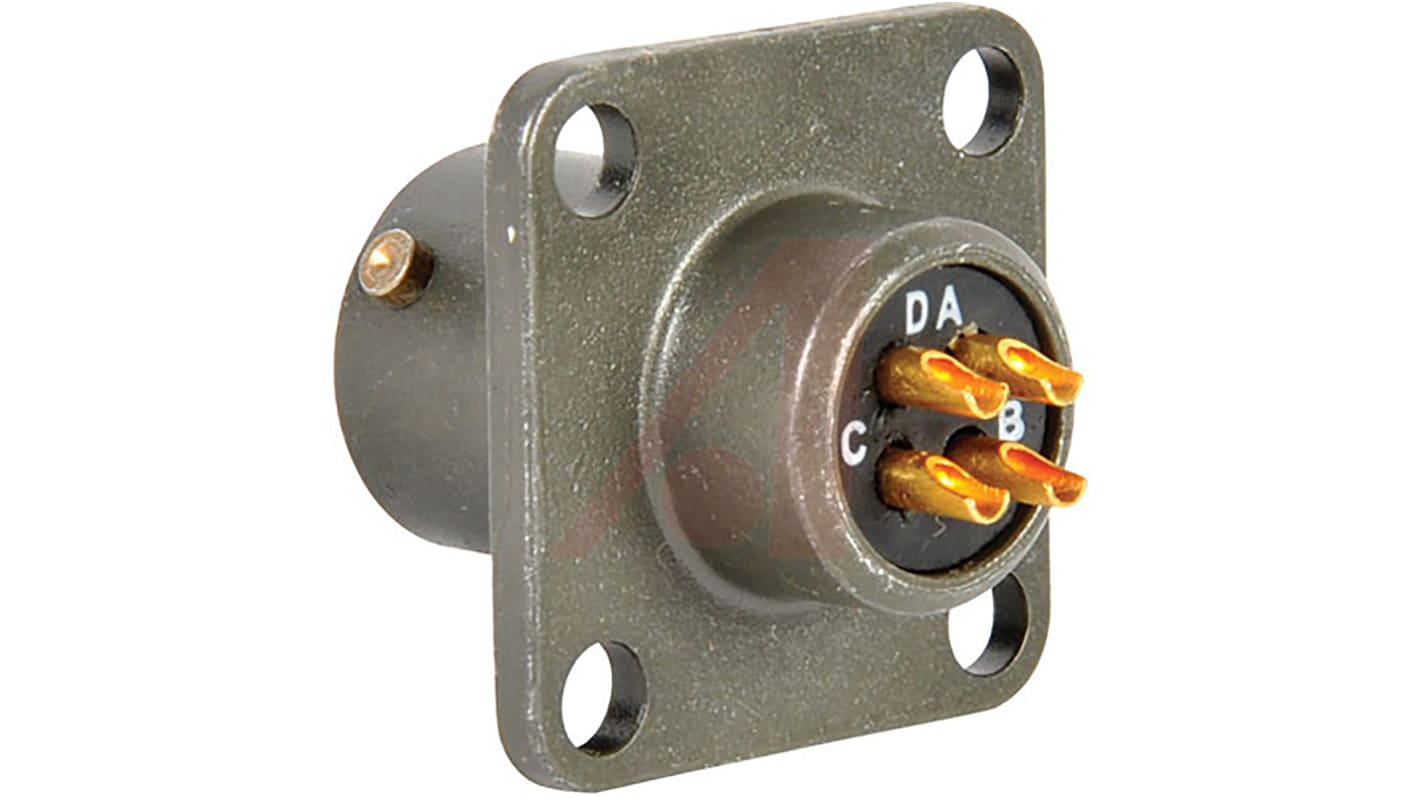

Amphenol PT Series, 4 Way Panel Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 8, Bayonet,

  • RS Stock No. 872-1446
  • Mfr. Part No. PT02A-8-4P
  • Brand Amphenol
Technical Reference
Legislation and Compliance
Non Compliant
Product Details

Amphenol PT Series Connectors

The Amphenol PT series connectors, manufactured in accordance with MIL-DTL-26482 Series 1, is a range of high density circular connectors featuring a bayonet coupling mechanism for quick connect and disconnect. A wide range of Insert arrangements are available offering both power and signal contacts from 2 through to 61 circuits. The Amphenol PT series connectors are inter-mountable and interchangeable with other MIL-DTL-26482 connectors.

PT Solder is UL Approved Under File #E115497
Aluminum Shell Components For The Series
5 Key/ Keyway Polarisation With Bayonet Lock Coupling
Wide Range of Shell Sizes (8 Through 24)

Amphenol PT Series Connectors

Specifications
Attribute Value
Number of Contacts 4
Gender Female
Contact Gender Male
Voltage Rating 1 kV ac
Shell Size 8
Mounting Type Panel Mount
Military Standard MIL-DTL-26482
Termination Method Solder
Mating Type Bayonet
Connector Size Miniature
Body Orientation Straight
Series PT
Minimum Operating Temperature -55°C
Colour Green
Shell Plating Cadmium
Contact Material Copper Alloy
Housing Material Aluminium
Maximum Operating Temperature +125°C
Contact Plating Gold
11 In stock for FREE next working day delivery
Price Each
£ 10.25
(exc. VAT)
£ 12.30
(inc. VAT)
Units
Per unit
1 - 9
£10.25
10 - 24
£9.73
25 +
£9.22
