Souriau Sunbank by Eaton, EN3645, Copper Alloy 8 Way Panel Mount MIL Spec Circular Connector Receptacle, Pin

View this category
Bulk discount available

Subtotal (1 unit)*

£345.03

(exc. VAT)

£414.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£345.03
5 - 24£335.37
25 +£326.40

*price indicative

RS Stock No.:
764-1888
Mfr. Part No.:
EN3645M0JN04MN
Brand:
Souriau Sunbank by Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Souriau Sunbank by Eaton

Number of Contacts

8

Gender

Female

Contact Gender

Male

Current Rating

7.5A

Shell Size

25

Mounting Type

Panel Mount

Military Standard

MIL-DTL-38999

IP Rating

IP67

Mating Type

Screw Coupling

Connector Size

Standard

Body Orientation

Straight

Housing Material

Composite

Series

EN3645

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

+200°C

Contact Material

Copper Alloy

Shell Plating

Nickel

Contact Plating

Gold over Nickel

Non Compliant

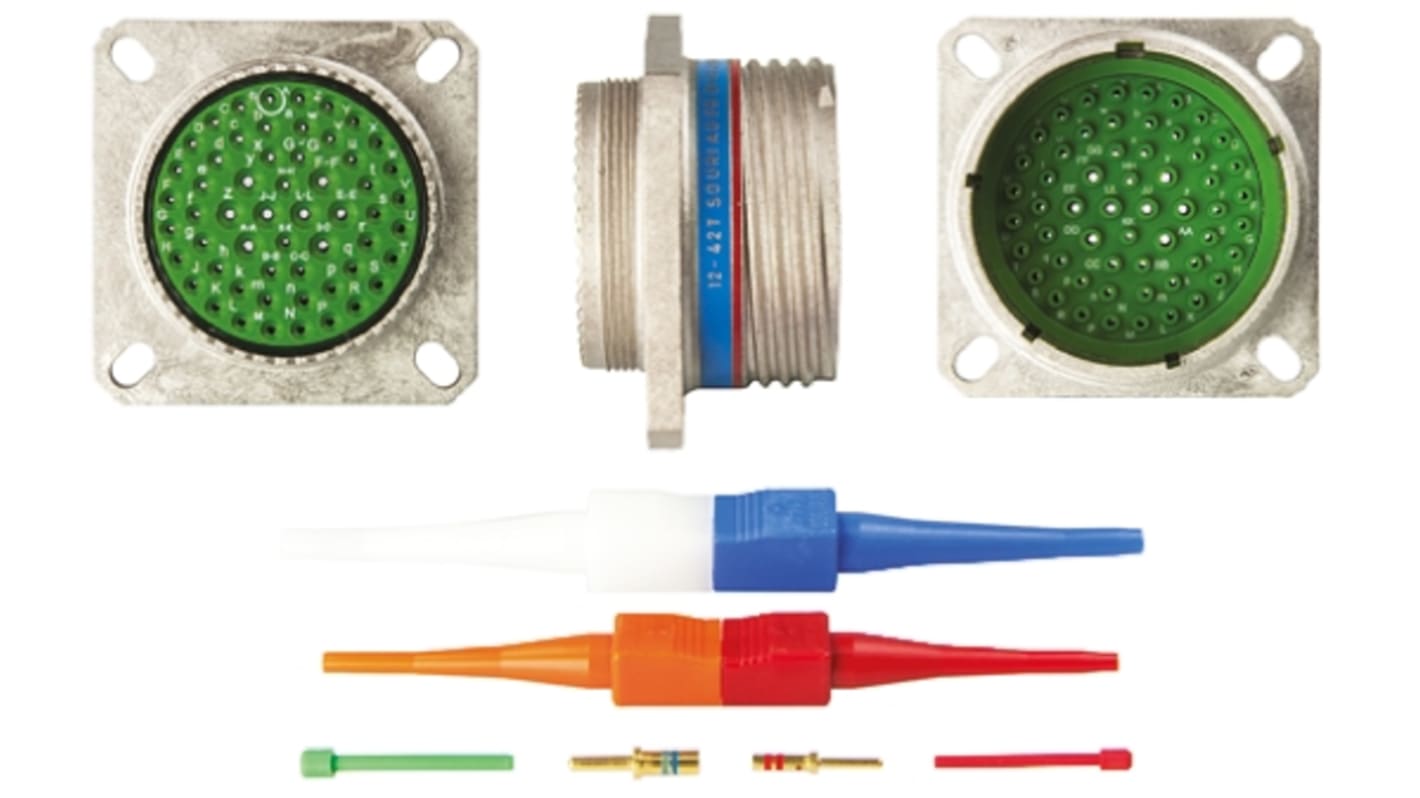

Souria 8D Series EN3645 Square Flange Receptacle Connector,Composite,Threaded


Souriau 8D EN3645 series square flange receptacle connectors are lightweight, composite bodied, nickel plated, durable connectors designed for use within military and civil aerospace, marine and offshore equipment, medical instrumentation, defense and military ground personnel and industrial connector applications. These Mil Spec square flange receptacle connectors feature a threaded coupling are 100% scoop proof and offer RFI-EMi protection and shell to shell continuity when mated. Souriau 8D EN3645 series military spec receptacle connectors have very high resistance to harsh environmental factors such as shock (300g, 3ms) and temperature extremes and offer over 500 mating and unmating operations, these receptacle connectors have been designed to conform to MIL-DTL-38999 standard.

High Contact Density
100% scoop proof
Male connector contacts


Souriau D38999 Series III Compliant Connector - 8D Series


Souriau 8D Series III, is the screw-coupled version of MIL-DTL-38999. Meets the performance required in extreme environments such as civil and military aeronautics also Industrial, marine and offshore.High resistance to harsh environments (vibration, 200°C).


A quick screw coupling with self locking mechanism
100% scoop proof offering polarising options by angular positioning of keys
EMI enhanced protection by shielding ring and shell to shell bottoming.

Approvals

EN 3645;CECC;QPL qualified for Zinc Nickel plating.
