Souriau Sunbank by Eaton, EN3645, Copper Alloy 10 Way Cable Mount MIL Spec Circular Connector Plug, Socket

View this category
Bulk discount available

Subtotal (1 unit)*

£86.67

(exc. VAT)

£104.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£86.67
5 - 24£83.38
25 +£80.26

*price indicative

RS Stock No.:
764-1793
Mfr. Part No.:
EN3645M6CN98FN
Brand:
Souriau Sunbank by Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Souriau Sunbank by Eaton

Number of Contacts

10

Gender

Male

Contact Gender

Female

Current Rating

7.5A

Shell Size

13

Mounting Type

Cable Mount

Military Standard

MIL-DTL-38999

IP Rating

IP67

Mating Type

Screw Coupling

Connector Size

Standard

Body Orientation

Straight

Series

EN3645

Housing Material

Composite

Maximum Operating Temperature

+200°C

Contact Material

Copper Alloy

Minimum Operating Temperature

-65°C

Contact Plating

Gold over Nickel

Shell Plating

Nickel

Non Compliant

COO (Country of Origin):
FR

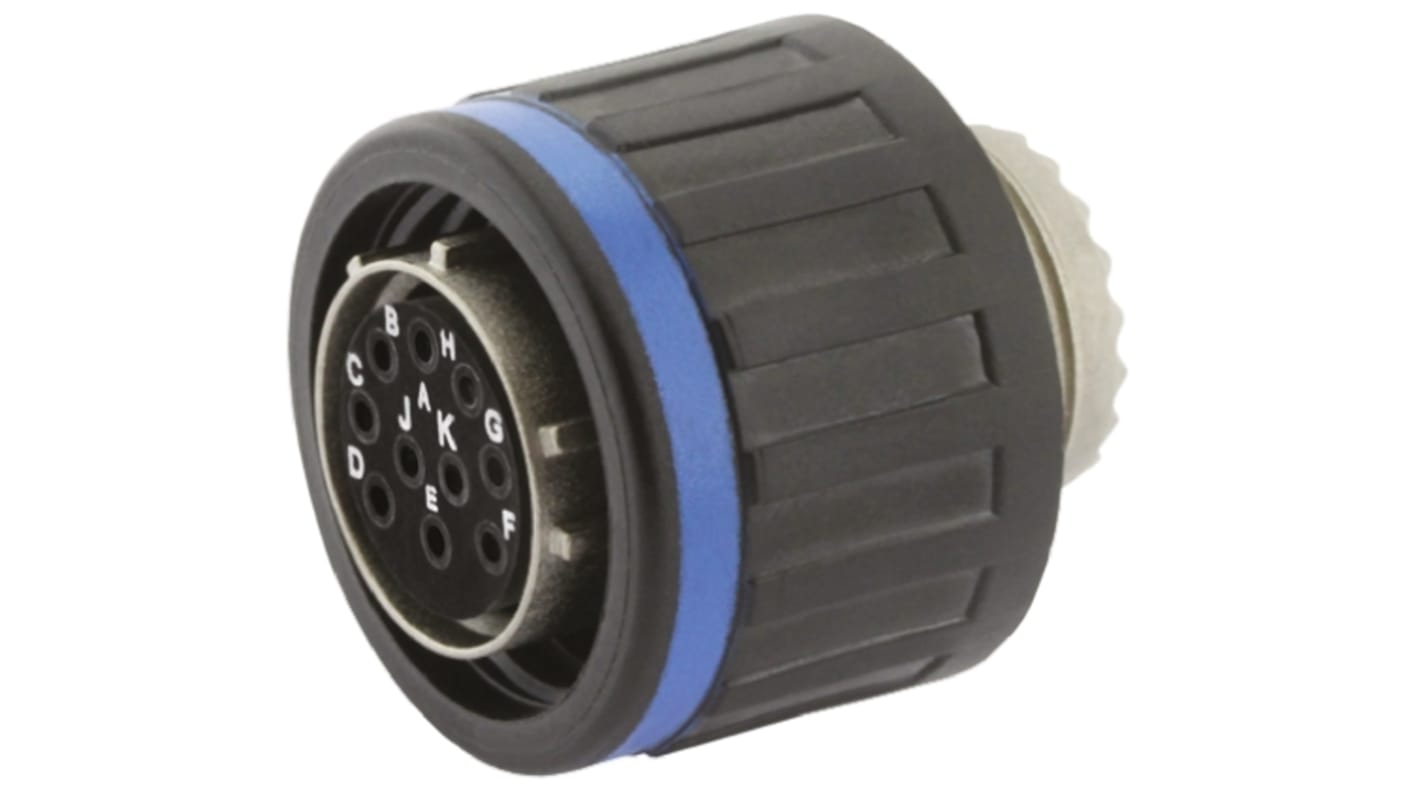

Souriau 8D Series EN3645 Plug connector,Composite, Threaded, Nickel Plated


Souriau 8D EN3645 series plug connectors are lightweight, composite bodied, nickel plated, durable connectors designed for use within military and civil aerospace, marine and offshore equipment, medical instrumentation, defense and military ground personnel and industrial connector applications. These Mil Spec plug connectors feature a threaded coupling are 100% scoop proof and offer RFI-EMI protection and shell to shell continuity when mated. Souriau 8D EN3645 series military spec. plug connectors have very high resistance to harsh environmental factors such as shock (300g, 3ms) and temperature extremes and offer over 500 mating and unmating operations, these plug connectors have been designed to conform to MIL-DTL-38999 standard.

High Contact Density
100% scoop proof
Male connector contacts


Souriau D38999 Series III Compliant Connector - 8D Series


Souriau 8D Series III, is the screw-coupled version of MIL-DTL-38999. Meets the performance required in extreme environments such as civil and military aeronautics also Industrial, marine and offshore.High resistance to harsh environments (vibration, 200°C).


A quick screw coupling with self locking mechanism
100% scoop proof offering polarising options by angular positioning of keys
EMI enhanced protection by shielding ring and shell to shell bottoming.

Approvals

EN 3645;CECC;QPL qualified for Zinc Nickel plating.
