Souriau Sunbank by Eaton, 8D, Copper Alloy 128 Way Panel Mount MIL Spec Circular Connector Receptacle, Pin

View this category

Subtotal (1 unit)*

£117.08

(exc. VAT)

£140.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 17 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£117.08

*price indicative

RS Stock No.:
764-1002
Mfr. Part No.:
8D025W35PN
Brand:
Souriau Sunbank by Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Souriau Sunbank by Eaton

Number of Contacts

128

Gender

Female

Contact Gender

Male

Current Rating

5A

Shell Size

25

Mounting Type

Panel Mount

Military Standard

MIL-DTL-38999

Termination Method

Crimp

IP Rating

IP67

Mating Type

Screw Coupling

Connector Size

Standard

Body Orientation

Straight

Series

8D

Housing Material

Aluminium

Priced to Clear

Yes

Maximum Operating Temperature

+175°C

Contact Material

Copper Alloy

Shell Plating

Cadmium

Contact Plating

Gold over Nickel

Minimum Operating Temperature

-65°C

Non Compliant

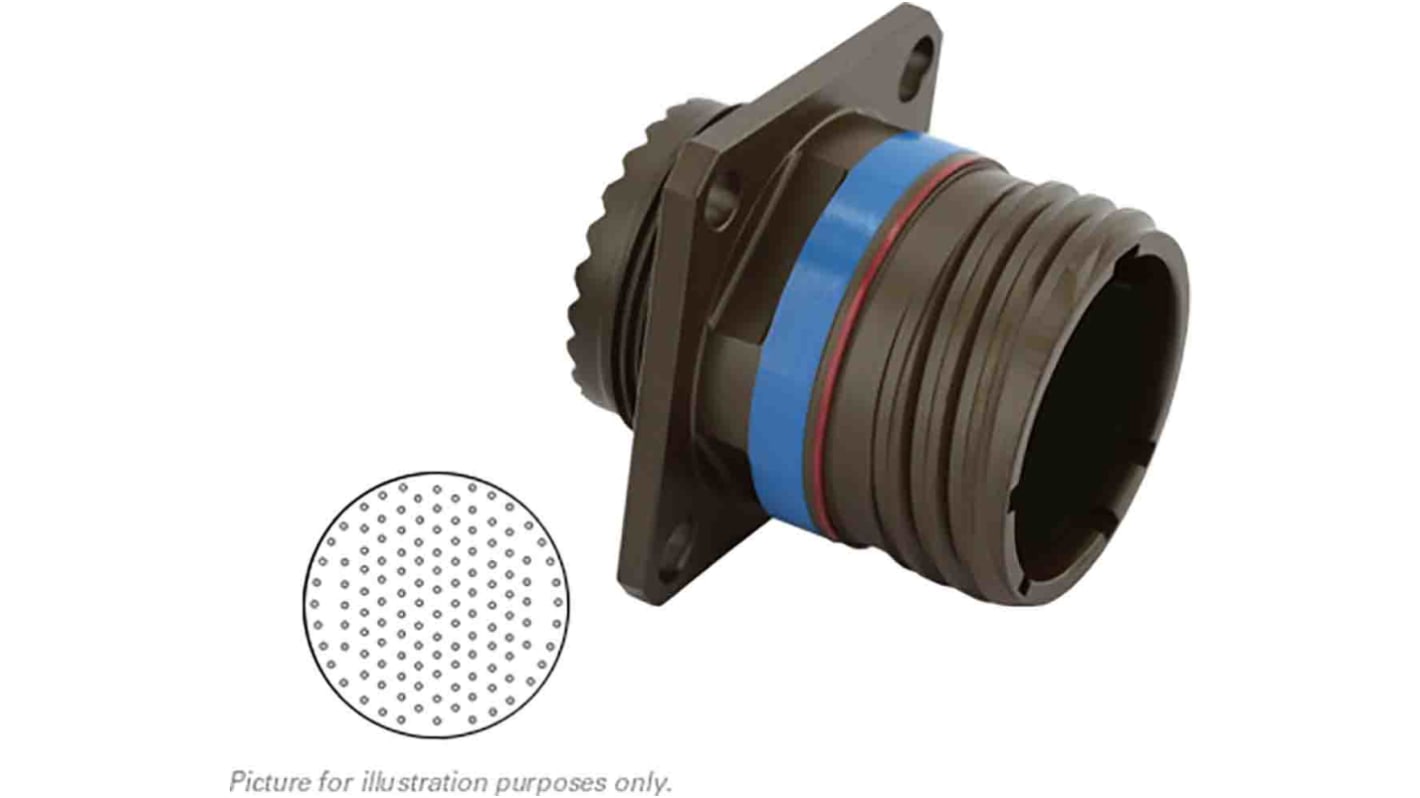

Souriau 8D Series Square Flange Receptacle Connectors, Threaded Coupling, Cad


Souriau 8D series square flange receptacle connectors, built in accordance to MIL-DTL-38999, series III type, are aluminium bodied, olive drab, durable connectors designed for use within military and civil aerospace, marine and offshore equipment, defense and military ground personnel and industrial connector applications. These square flange receptacle connectors feature a coupling thread are 100% scoop proof and offer shell to shell continuity when mated. Souriau 8D series receptacle connectors have very high resistance to harsh environmental factors such as shock (300g, 3ms) and temperature extremes and offer over 500 mating and unmating operations, comes complete with contacts.

High Contact Density
100% scoop proof
Male connector contacts


Souriau D38999 Series III Compliant Connector - 8D Series


Souriau 8D Series III, is the screw-coupled version of MIL-DTL-38999. Meets the performance required in extreme environments such as civil and military aeronautics also Industrial, marine and offshore.High resistance to harsh environments (vibration, 200°C).


A quick screw coupling with self locking mechanism
100% scoop proof offering polarising options by angular positioning of keys
EMI enhanced protection by shielding ring and shell to shell bottoming.

Approvals

EN 3645;CECC;QPL qualified for Zinc Nickel plating.
