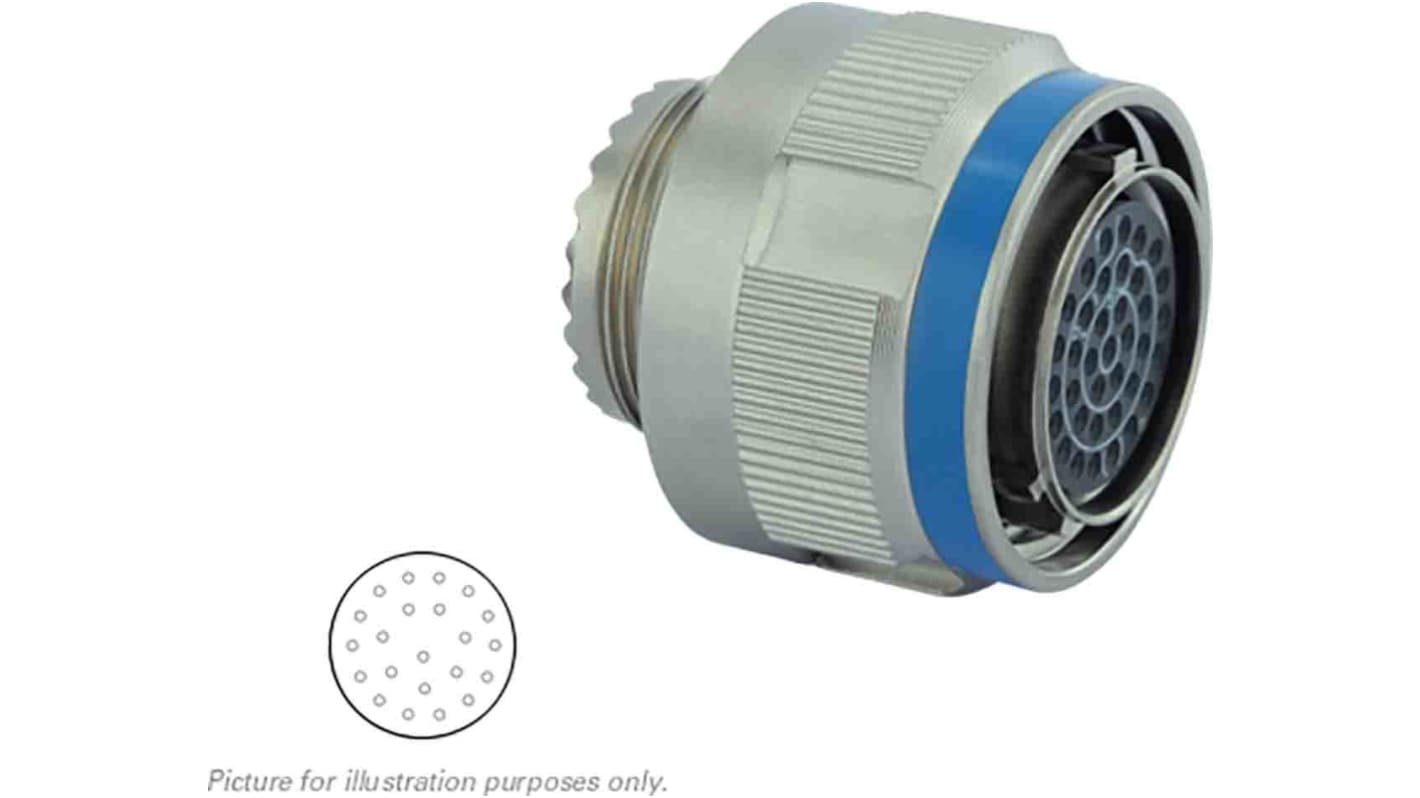

Souriau, 8D 22 Way MIL Spec Circular Connector Plug, Socket Contacts,Shell Size 13, Screw Coupling, MIL-DTL-38999
- RS Stock No.:
- 715-9304
- Mfr. Part No.:
- 8D513F35SA
- Brand:
- Souriau Sunbank by Eaton
Available to back order for despatch 08/10/2024
Added
Price Each
£44.96
(exc. VAT)
£53.95
(inc. VAT)
| Units | Per unit |
| 1 + | £44.96 |
- RS Stock No.:
- 715-9304
- Mfr. Part No.:
- 8D513F35SA
- Brand:
- Souriau Sunbank by Eaton
Legislation and Compliance
Non Compliant
Product Details
Plug with RFI Shielding
Souriau D38999 Series III Compliant Connector - 8D Series
Souriau 8D Series III, is the screw-coupled version of MIL-DTL-38999. Meets the performance required in extreme environments such as civil and military aeronautics also Industrial, marine and offshore.High resistance to harsh environments (vibration, 200°C).
A quick screw coupling with self locking mechanism
100% scoop proof offering polarising options by angular positioning of keys
EMI enhanced protection by shielding ring and shell to shell bottoming.
100% scoop proof offering polarising options by angular positioning of keys
EMI enhanced protection by shielding ring and shell to shell bottoming.
Approvals
EN 3645;CECC;QPL qualified for Zinc Nickel plating.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 22 |
| Gender | Male |
| Contact Gender | Female |
| Current Rating | 5A |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Termination Method | Crimp |
| IP Rating | IP67 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Body Orientation | Straight |
| Series | 8D |
| Housing Material | Aluminium |
| Shell Plating | Nickel |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +200°C |
| Minimum Operating Temperature | -65°C |
| Contact Material | Copper Alloy |
