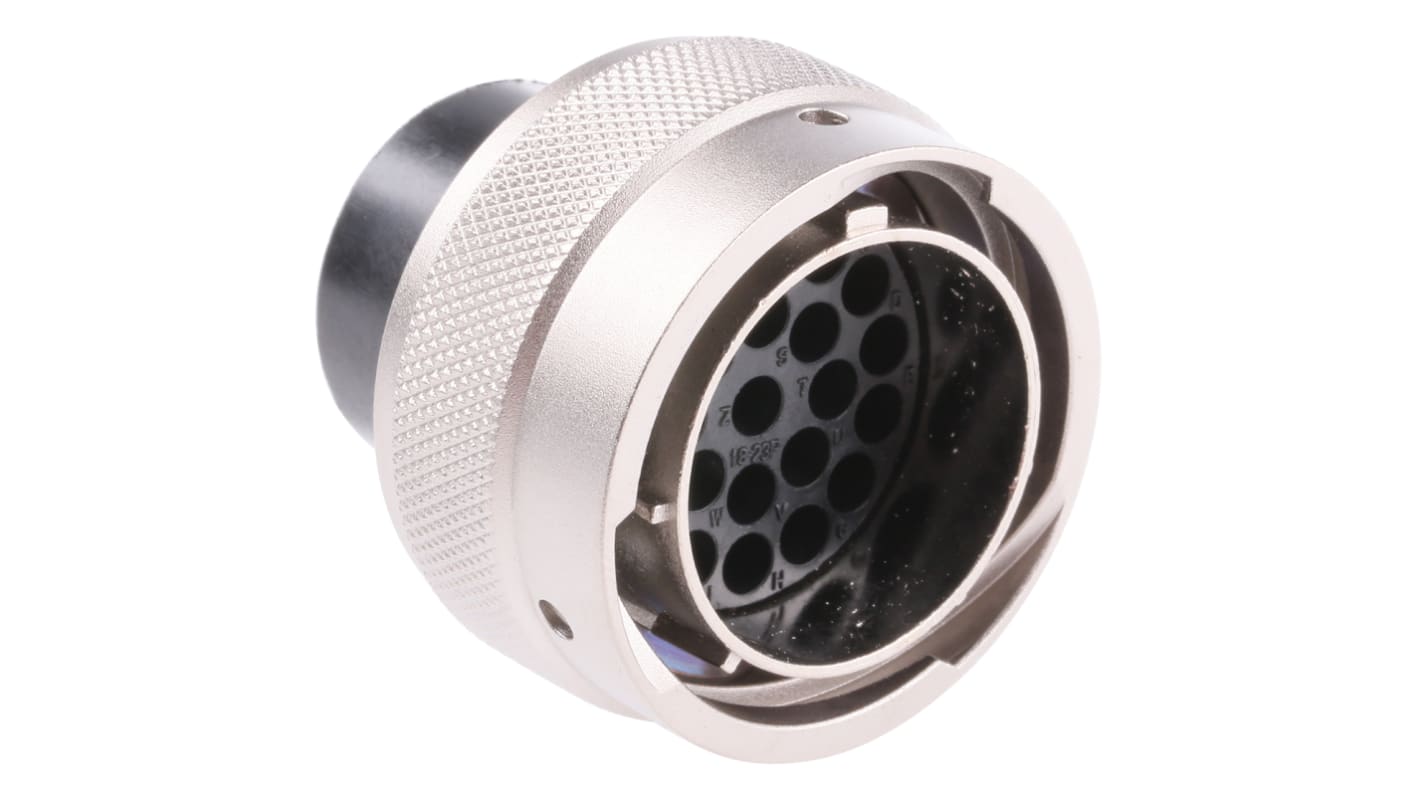

Souriau Sunbank by Eaton, UTO 23 Way Cable Mount MIL Spec Circular Connector Plug, Pin Contacts,Shell Size 18, Bayonet
- RS Stock No.:
- 510-0789
- Distrelec Article No.:
- 144-00-412
- Mfr. Part No.:
- UT061823PH
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 unit)*
£24.06
(exc. VAT)
£28.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 96 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £24.06 |
5 - 24 | £21.63 |
25 + | £20.45 |
*price indicative
- RS Stock No.:
- 510-0789
- Distrelec Article No.:
- 144-00-412
- Mfr. Part No.:
- UT061823PH
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Souriau Sunbank by Eaton | |
Number of Contacts | 23 | |
Gender | Male | |
Contact Gender | Male | |
Shell Size | 18 | |
Mounting Type | Cable Mount | |
Termination Method | Crimp | |
Mating Type | Bayonet Coupling | |
Body Orientation | Straight | |
Series | UTO | |
Shell Plating | Nickel | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 23 | ||
Gender Male | ||
Contact Gender Male | ||
Shell Size 18 | ||
Mounting Type Cable Mount | ||
Termination Method Crimp | ||
Mating Type Bayonet Coupling | ||
Body Orientation Straight | ||
Series UTO | ||
Shell Plating Nickel | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- FR
IP 68 plugs for male contacts series UTO
Sealed cylindrical metal connectors guaranteed to IP 68, interchangeable and mateable with TRIM TRIO and UTP series.
Plugs for size 16 male contacts (to be ordered separately; see for example, Machined contact 273-2967, Rolled cut contact 398-8010 ).
Metal casing with bayonet locking ring guarantees 500 cycles.
5-pin guiding ensures correct insertion between plug and base.
Cable connectors and shielded sealed cable gland connectors are available separately.
Plugs for size 16 male contacts (to be ordered separately; see for example, Machined contact 273-2967, Rolled cut contact 398-8010 ).
Metal casing with bayonet locking ring guarantees 500 cycles.
5-pin guiding ensures correct insertion between plug and base.
Cable connectors and shielded sealed cable gland connectors are available separately.
Series UTO/UTOW - Souriau
