Amphenol Limited, 62LC, Copper Straight 8 Way Panel Mount MIL Spec Circular Connector Female, Male Contacts,Shell Size
- RS Stock No.:
- 301-4591
- Mfr. Part No.:
- 62LC-12E12-08PN(771)
- Brand:
- Amphenol Limited

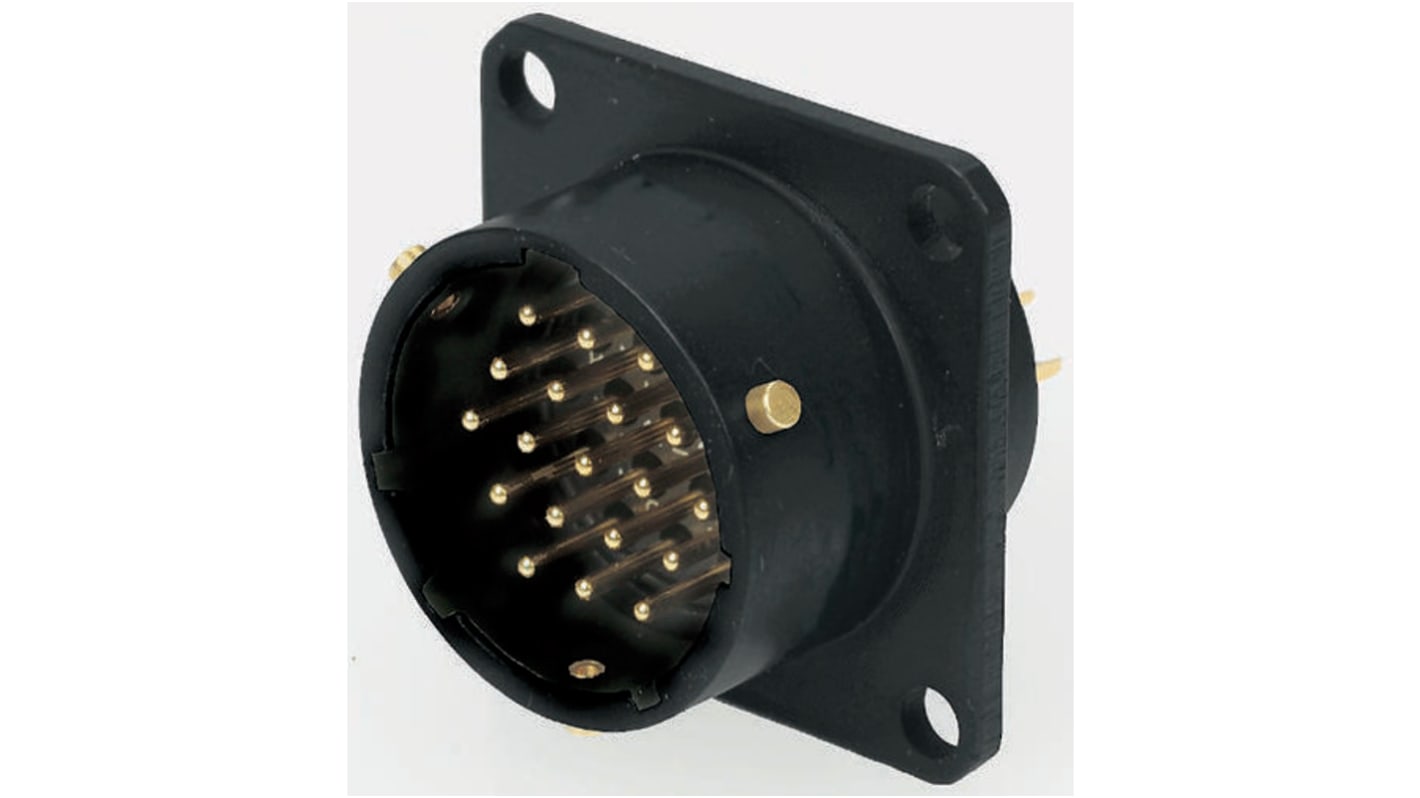

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£35.09
(exc. VAT)
£42.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 25 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £35.09 |
| 10 - 24 | £33.34 |
| 25 + | £31.59 |
*price indicative
- RS Stock No.:
- 301-4591
- Mfr. Part No.:
- 62LC-12E12-08PN(771)
- Brand:
- Amphenol Limited
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Limited | |
| Number of Contacts | 8 | |
| Product Type | MIL Spec Circular Connector | |
| Contact Gender | Male | |
| Current | 7.5A | |
| Voltage | 700.0V | |
| Connector Gender | Female | |
| Shell Size | 12 | |
| Mount Type | Panel Mount | |
| Military Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Mating Type | Bayonet | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Connector Size | 19.1 mm | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Series | 62LC | |
| Housing Material | Aluminium | |
| Contact Material | Copper | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Amphenol Limited | ||
Number of Contacts 8 | ||
Product Type MIL Spec Circular Connector | ||
Contact Gender Male | ||
Current 7.5A | ||
Voltage 700.0V | ||
Connector Gender Female | ||
Shell Size 12 | ||
Mount Type Panel Mount | ||
Military Standard No | ||
Minimum Operating Temperature -55°C | ||
Mating Type Bayonet | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Connector Size 19.1 mm | ||
Orientation Straight | ||
Standards/Approvals No | ||
Series 62LC | ||
Housing Material Aluminium | ||
Contact Material Copper | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- IN
Chassis Socket/Plug
From Amphenol, this 62GB/LC series panel mounted chassis socket features bayonet connection for quick and reliable connecting. Available as either a plug or socket, the 62GB/LC series comes in a variety of shell sizes.
Amphenol BLZC (Black Zinc)
Black zinc cobalt plated bayonet locking connectors that are interconnectable and interchangeable with connectors that conform to MIL-C-26482 and BS9522 F0017 requirements. Of a commercial grade they are machined from aluminium alloy and provide durability and resilience in industrial environments. The black plating offers an aesthetically pleasing finish to the connectors. Connector pins and sockets are prefitted solder bucket type.,The cable plugs are supplied complete with backshell.These connectors will also take the spin coupling backshells (stock no. 241-1294 - typically) and have the same thread as 62GB connectors.
Note
Cable mount plugs will only mate with chassis mount sockets, and cable mount sockets will only mate with chassis mount plugs.
Standards
BS9522 F0017; MIL-C-26482
