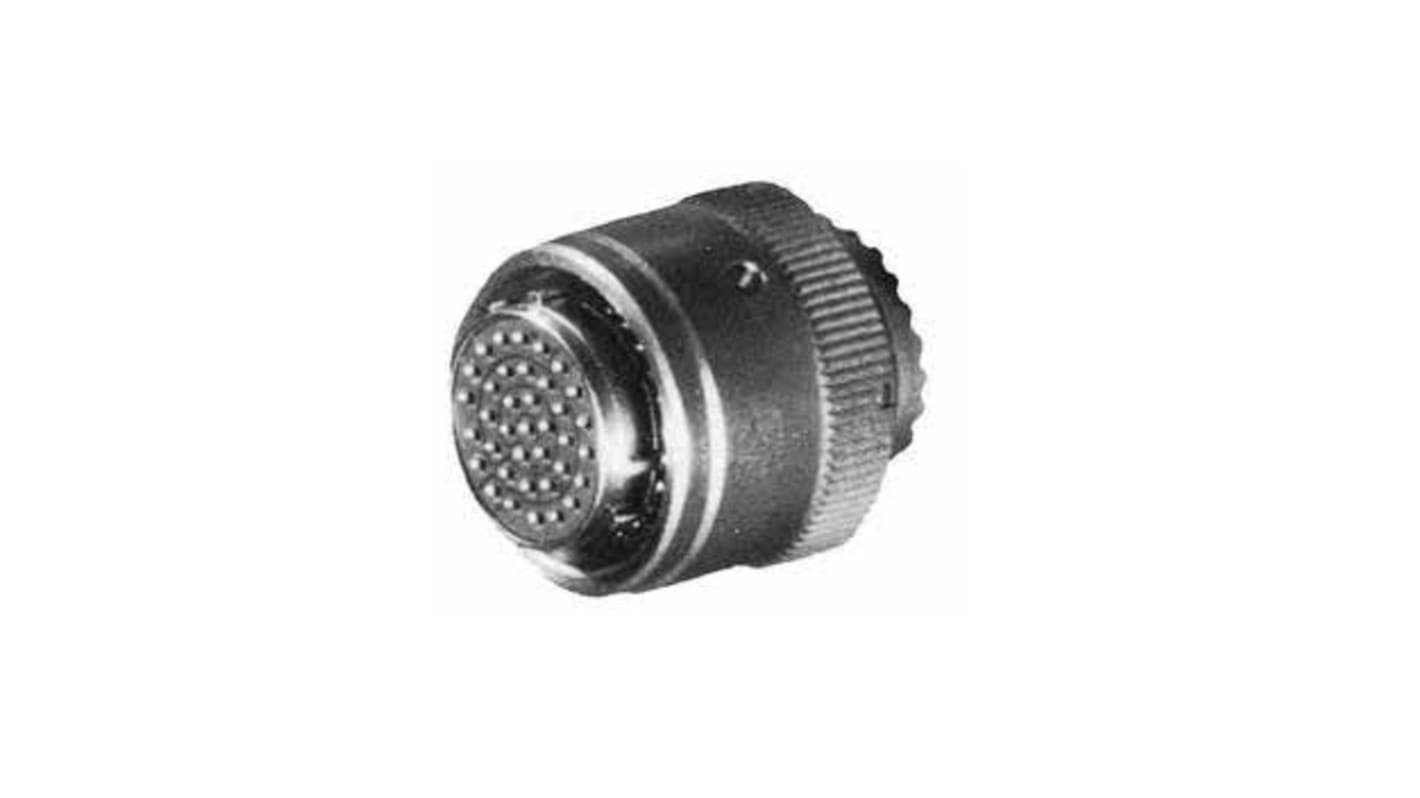

Amphenol Air LB, VG96912, Copper Alloy Straight 100 Way Circular Connector Male Olive Green, Male Contacts,Shell Size
- RS Stock No.:
- 251-2824
- Mfr. Part No.:
- VG96912D22-35SN
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£127.05
(exc. VAT)
£152.46
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 9 | £127.05 |
| 10 - 24 | £123.36 |
| 25 - 49 | £118.53 |
| 50 - 99 | £114.98 |
| 100 + | £111.94 |
*price indicative
- RS Stock No.:
- 251-2824
- Mfr. Part No.:
- VG96912D22-35SN
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Product Type | Circular Connector | |
| Number of Contacts | 100 | |
| Current | 23A | |
| Contact Gender | Male | |
| Voltage | 550 V | |
| Connector Gender | Male | |
| Shell Size | 22 | |
| Military Standard | MIL-DTL-38999 | |
| Minimum Operating Temperature | -65°C | |
| Mating Type | Bayonet | |
| Termination Type | Cable | |
| Maximum Operating Temperature | 175°C | |
| Orientation | Straight | |
| Standards/Approvals | JN 1003, EN 3372, EFA J 62-017, VG 96912, QPL | |
| Housing Material | Aluminium Alloy | |
| Series | VG96912 | |
| Contact Material | Copper Alloy | |
| Shell Plating | Cadmium | |
| Colour | Olive Green | |
| Contact Plating | Gold over Nickel | |
| Strain Relief | No | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Product Type Circular Connector | ||
Number of Contacts 100 | ||
Current 23A | ||
Contact Gender Male | ||
Voltage 550 V | ||
Connector Gender Male | ||
Shell Size 22 | ||
Military Standard MIL-DTL-38999 | ||
Minimum Operating Temperature -65°C | ||
Mating Type Bayonet | ||
Termination Type Cable | ||
Maximum Operating Temperature 175°C | ||
Orientation Straight | ||
Standards/Approvals JN 1003, EN 3372, EFA J 62-017, VG 96912, QPL | ||
Housing Material Aluminium Alloy | ||
Series VG96912 | ||
Contact Material Copper Alloy | ||
Shell Plating Cadmium | ||
Colour Olive Green | ||
Contact Plating Gold over Nickel | ||
Strain Relief No | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB plug crimp is well suited for new technologies in the industrial and military sectors as well as aerospace applications where size, weight and reliability are of crucial importance.
Moisture proof
Numerous contact arrangements
