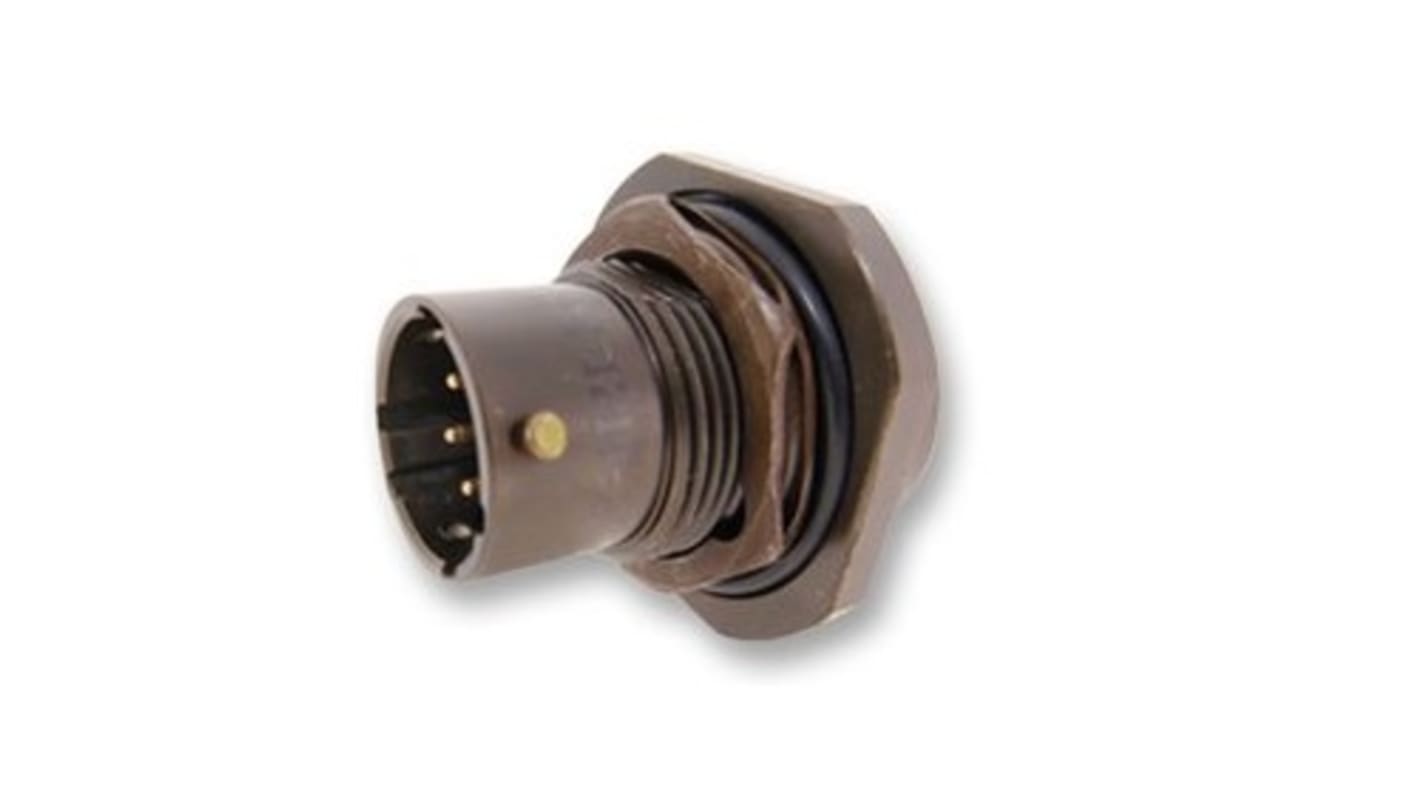

Amphenol Air LB, PT, Copper Alloy Straight 26 Way Hole Circular Connector Female Silver, Female Contacts,Shell Size 16,
- RS Stock No.:
- 251-2643
- Mfr. Part No.:
- VG95328T16-26PN
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£62.62
(exc. VAT)
£75.14
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £62.62 |
| 10 - 24 | £60.81 |
| 25 - 49 | £58.42 |
| 50 - 99 | £56.67 |
| 100 + | £55.18 |
*price indicative
- RS Stock No.:
- 251-2643
- Mfr. Part No.:
- VG95328T16-26PN
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Number of Contacts | 26 | |
| Product Type | Circular Connector | |
| Current | 40A | |
| Contact Gender | Female | |
| Connector Gender | Female | |
| Voltage | 850V | |
| Shell Size | 16 | |
| Mount Type | Hole | |
| Military Standard | MIL-DTL-26482 | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Mating Type | Bayonet | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS, REACH | |
| Orientation | Straight | |
| Series | PT | |
| Housing Material | Aluminium Alloy | |
| Strain Relief | No | |
| Contact Material | Copper Alloy | |
| Colour | Silver | |
| Contact Plating | Cadmium | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Number of Contacts 26 | ||
Product Type Circular Connector | ||
Current 40A | ||
Contact Gender Female | ||
Connector Gender Female | ||
Voltage 850V | ||
Shell Size 16 | ||
Mount Type Hole | ||
Military Standard MIL-DTL-26482 | ||
IP Rating IP68 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Mating Type Bayonet | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS, REACH | ||
Orientation Straight | ||
Series PT | ||
Housing Material Aluminium Alloy | ||
Strain Relief No | ||
Contact Material Copper Alloy | ||
Colour Silver | ||
Contact Plating Cadmium | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB is shielded with bayonet locking is well suited for new technologies in the industrial and military sectors as well as aerospace applications where size, weight and reliability are of crucial importance.
Medium contact density
Handles strong vibrations levels
