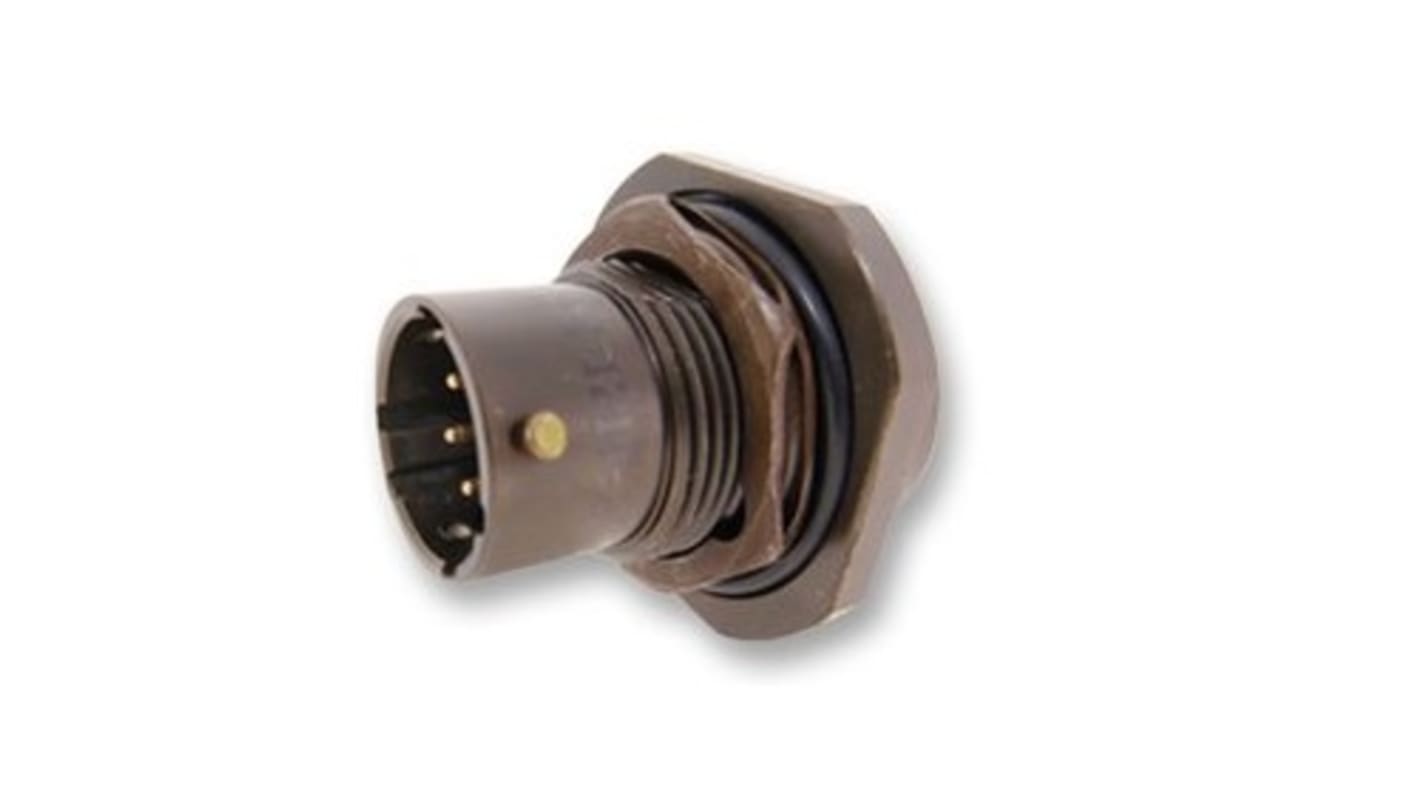

Amphenol Air LB, PT, Copper Alloy Straight 12 Way Hole Circular Connector Female Silver, Female Contacts,Shell Size 14,
- RS Stock No.:
- 251-2636
- Mfr. Part No.:
- VG95328T14-12SW
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£56.69
(exc. VAT)
£68.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £56.69 |
| 10 - 24 | £55.05 |
| 25 - 49 | £52.90 |
| 50 - 99 | £51.30 |
| 100 + | £49.96 |
*price indicative
- RS Stock No.:
- 251-2636
- Mfr. Part No.:
- VG95328T14-12SW
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Number of Contacts | 12 | |
| Product Type | Circular Connector | |
| Contact Gender | Female | |
| Current | 40A | |
| Voltage | 850 V | |
| Connector Gender | Female | |
| Shell Size | 14 | |
| Mount Type | Hole | |
| Military Standard | MIL-DTL-26482 | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -55°C | |
| Mating Type | Bayonet | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Orientation | Straight | |
| Standards/Approvals | RoHS, REACH | |
| Series | PT | |
| Housing Material | Aluminium Alloy | |
| Strain Relief | No | |
| Colour | Silver | |
| Contact Material | Copper Alloy | |
| Contact Plating | Cadmium | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Number of Contacts 12 | ||
Product Type Circular Connector | ||
Contact Gender Female | ||
Current 40A | ||
Voltage 850 V | ||
Connector Gender Female | ||
Shell Size 14 | ||
Mount Type Hole | ||
Military Standard MIL-DTL-26482 | ||
IP Rating IP68 | ||
Minimum Operating Temperature -55°C | ||
Mating Type Bayonet | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Orientation Straight | ||
Standards/Approvals RoHS, REACH | ||
Series PT | ||
Housing Material Aluminium Alloy | ||
Strain Relief No | ||
Colour Silver | ||
Contact Material Copper Alloy | ||
Contact Plating Cadmium | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB is shielded with bayonet locking is well suited for new technologies in the industrial and military sectors as well as aerospace applications where size, weight and reliability are of crucial importance.
Medium contact density
Handles strong vibrations levels
