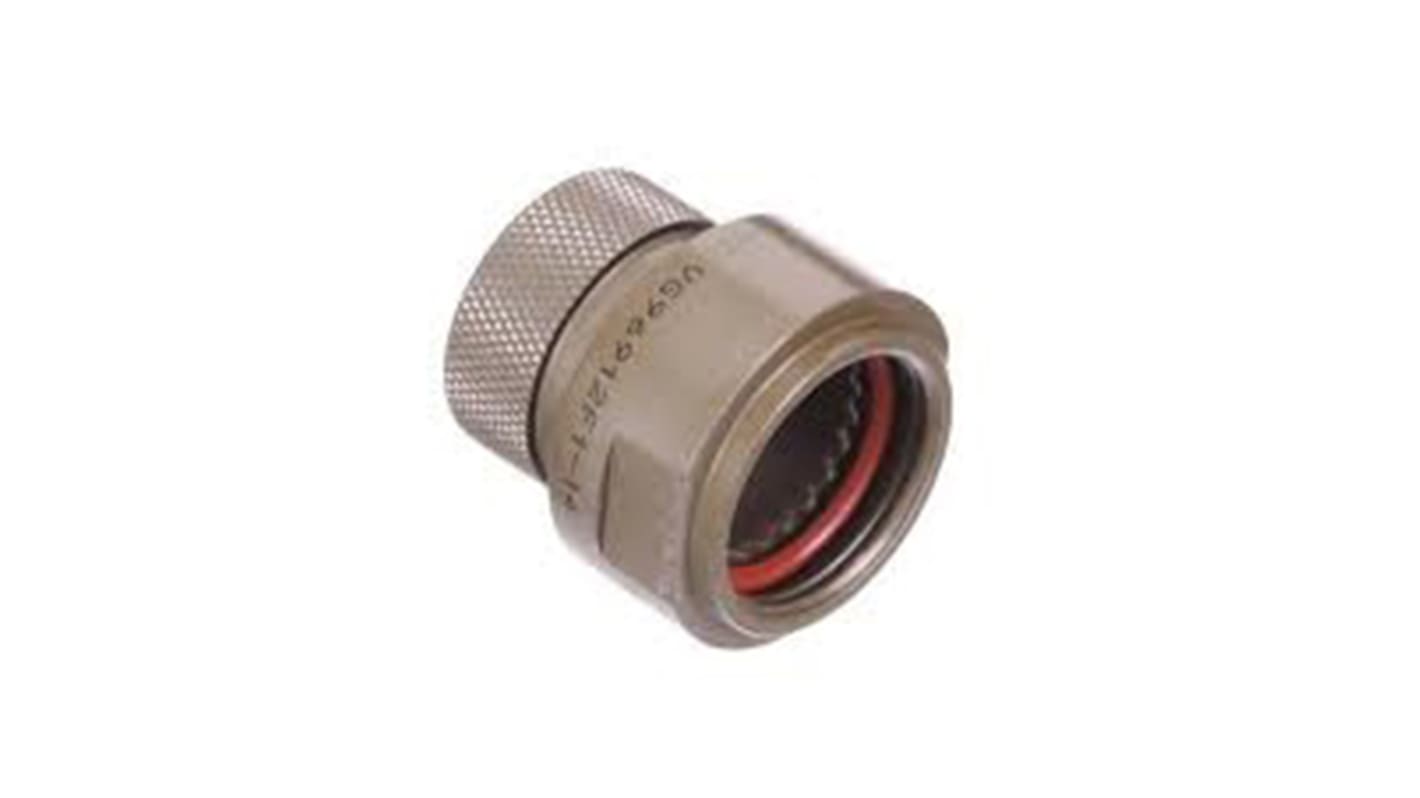

Amphenol Air LB, VG95328, Copper Alloy Straight 3 Way Circular Connector Female Silver, Female Contacts,Shell Size 8,
- RS Stock No.:
- 251-2514
- Mfr. Part No.:
- VG95328D8-3APN
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£68.64
(exc. VAT)
£82.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £68.64 |
| 10 - 24 | £66.72 |
| 25 - 49 | £64.05 |
| 50 - 99 | £62.11 |
| 100 + | £60.46 |
*price indicative
- RS Stock No.:
- 251-2514
- Mfr. Part No.:
- VG95328D8-3APN
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Product Type | Circular Connector | |
| Number of Contacts | 3 | |
| Current | 40A | |
| Contact Gender | Female | |
| Voltage | 850 V | |
| Connector Gender | Female | |
| Shell Size | 8 | |
| Military Standard | MIL-DTL-26482 | |
| IP Rating | IP68 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Cable | |
| Mating Type | Bayonet | |
| Maximum Operating Temperature | 125°C | |
| Orientation | Straight | |
| Standards/Approvals | REACH, RoHS | |
| Housing Material | Aluminium Alloy | |
| Series | VG95328 | |
| Colour | Silver | |
| Strain Relief | No | |
| Contact Plating | Cadmium | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Product Type Circular Connector | ||
Number of Contacts 3 | ||
Current 40A | ||
Contact Gender Female | ||
Voltage 850 V | ||
Connector Gender Female | ||
Shell Size 8 | ||
Military Standard MIL-DTL-26482 | ||
IP Rating IP68 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Cable | ||
Mating Type Bayonet | ||
Maximum Operating Temperature 125°C | ||
Orientation Straight | ||
Standards/Approvals REACH, RoHS | ||
Housing Material Aluminium Alloy | ||
Series VG95328 | ||
Colour Silver | ||
Strain Relief No | ||
Contact Plating Cadmium | ||
Contact Material Copper Alloy | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB is shielded with bayonet locking is well suited for new technologies in the industrial and military sectors as well as aerospace applications where size, weight and reliability are of crucial importance.
Medium contact density
100% contact protection
