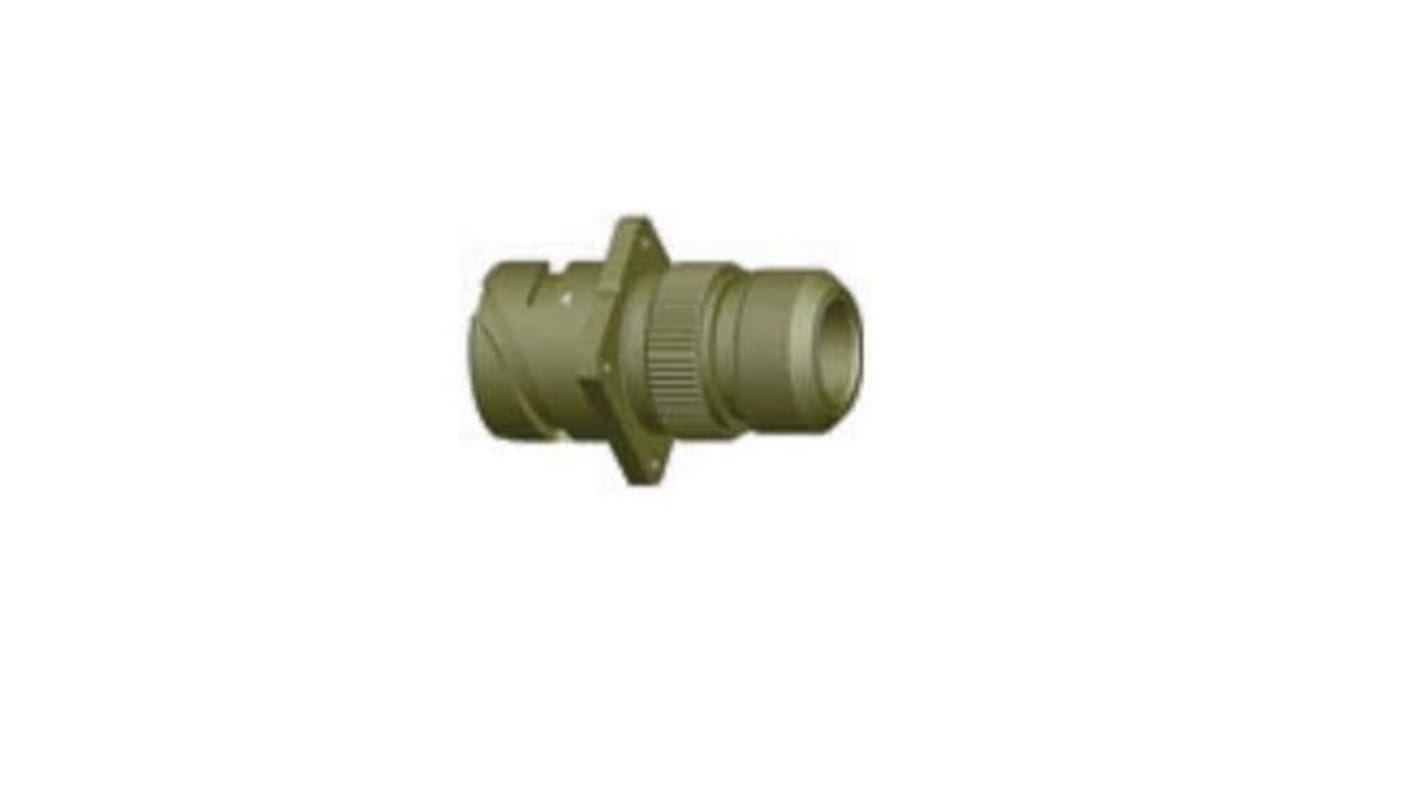

Amphenol Air LB, VG95234, Copper Alloy Straight 7 Way Flange Circular Connector Female Grey, Female Contacts,Shell Size
- RS Stock No.:
- 251-2402
- Mfr. Part No.:
- VG95234N1-16S-1SN
- Brand:
- Amphenol Air LB
Bulk discount available
Subtotal (1 unit)*
£38.32
(exc. VAT)
£45.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £38.32 |
| 10 - 24 | £37.24 |
| 25 - 49 | £35.75 |
| 50 - 99 | £34.68 |
| 100 + | £33.76 |
*price indicative
- RS Stock No.:
- 251-2402
- Mfr. Part No.:
- VG95234N1-16S-1SN
- Brand:
- Amphenol Air LB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Air LB | |
| Product Type | Circular Connector | |
| Number of Contacts | 7 | |
| Contact Gender | Female | |
| Current | 22A | |
| Connector Gender | Female | |
| Voltage | 50 V | |
| Shell Size | 16 mm | |
| Mount Type | Flange | |
| Military Standard | No | |
| IP Rating | IP67 | |
| Termination Type | Screw | |
| Mating Type | Quick Connect | |
| Minimum Operating Temperature | -55°C | |
| Connector Size | M4 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Orientation | Straight | |
| Series | VG95234 | |
| Housing Material | Aluminium Alloy | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Colour | Grey | |
| Select all | ||
|---|---|---|
Brand Amphenol Air LB | ||
Product Type Circular Connector | ||
Number of Contacts 7 | ||
Contact Gender Female | ||
Current 22A | ||
Connector Gender Female | ||
Voltage 50 V | ||
Shell Size 16 mm | ||
Mount Type Flange | ||
Military Standard No | ||
IP Rating IP67 | ||
Termination Type Screw | ||
Mating Type Quick Connect | ||
Minimum Operating Temperature -55°C | ||
Connector Size M4 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Orientation Straight | ||
Series VG95234 | ||
Housing Material Aluminium Alloy | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Colour Grey | ||
Non Compliant
- COO (Country of Origin):
- DE
The Amphenol Air LB has fixed connector with mounting flange and backshell for mounting of shielding braids by pressing with a nut and for heat shrinkable end shells.
Suitable for industrial and military sectors
