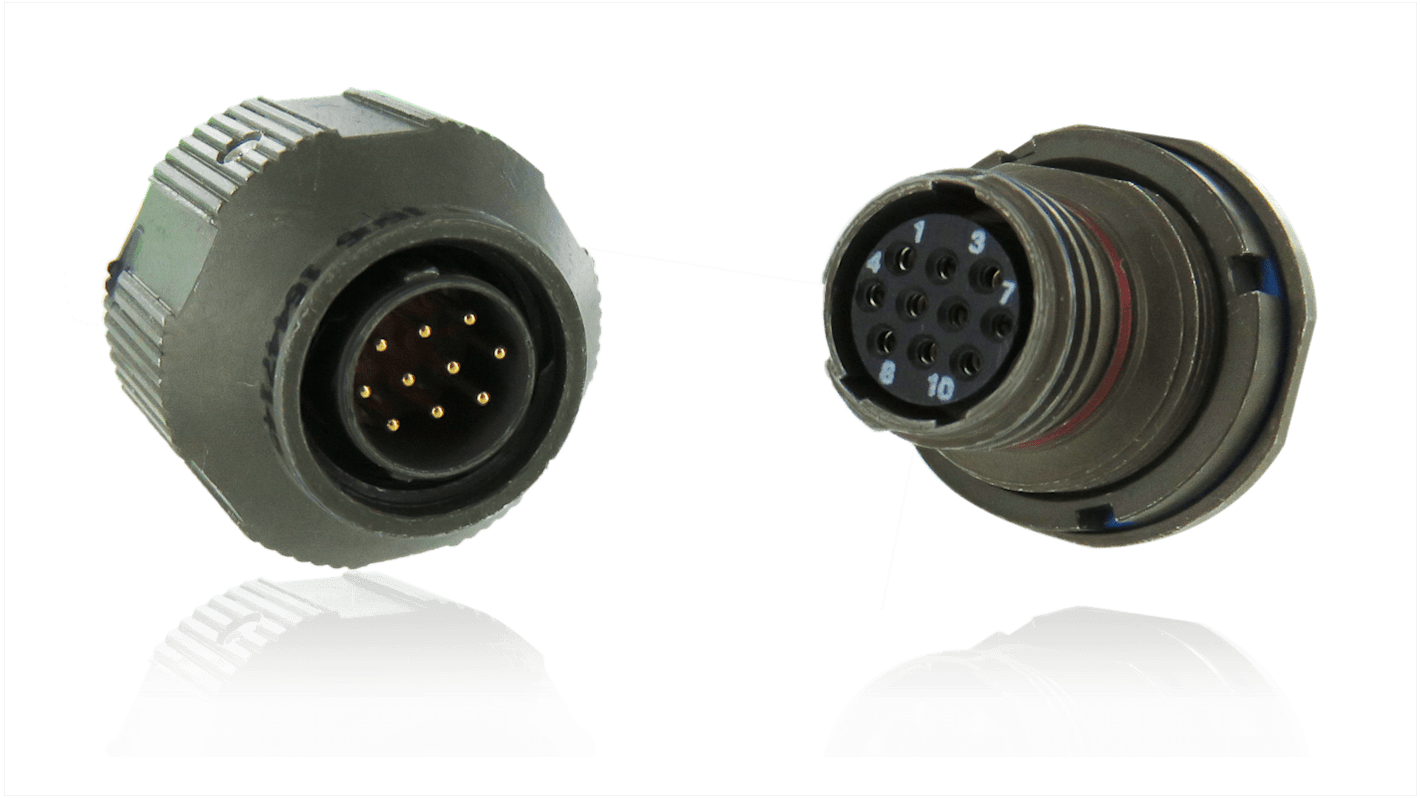

Amphenol Socapex, 2M805 5 Way Jam Nut MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 9, Threaded

RS Stock No.:: 224-5317
Mfr. Part No.:: 2M80500307ZNU925PA
Brand:: Amphenol Socapex

Amphenol Socapex, 2M805 5 Way Jam Nut MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 9, Threaded

Available to back order for despatch 06/08/2024

Price Each

£158.59

(exc. VAT)

£190.31

(inc. VAT)

Units	Per unit
1 - 4	£158.59
5 - 9	£151.92
10 - 24	£146.07
25 +	£141.90

RS Stock No.:: 224-5317
Mfr. Part No.:: 2M80500307ZNU925PA
Brand:: Amphenol Socapex

Technical Reference

2M Micro Miniature Connectors Series Datasheet

Legislation and Compliance

COO (Country of Origin):: IN

Product Details

The Amphenol Socapex 2M series micro-miniature tri-start ACME thread coupling connector are a small, lightweight option for mil-spec performance that can withstand harsh environments. They are quick-mating and a variety of styles and options are available. The inserts of this connectors is made from polyphenylene sulphide and the shell is black zinc nickel plated.

Excellent EMI shielding
Superior vibration resistance
Waterproof
Gold plated copper alloy contact
Aluminium alloy shell

Specifications

Attribute	Value
Number of Contacts	5
Gender	Female
Contact Gender	Male
Current Rating	7.5A
Voltage Rating	750 V
Shell Size	9
Mounting Type	Jam Nut
Mating Type	Threaded
Body Orientation	Straight
Series	2M805
