Souriau, 851 6 Way Cable Connector Receptacle, Pin Contacts,Shell Size 10, Bayonet Coupling, MIL-DTL-26482
- RS Stock No.:
- 217-2749
- Mfr. Part No.:
- 85106RC106P50
- Brand:
- Souriau
90 In stock - FREE next working day delivery available
Added
Price Each
£69.03
(exc. VAT)
£82.84
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £69.03 |
| 10 - 49 | £67.65 |
| 50 - 99 | £64.89 |
| 100 + | £58.68 |
- RS Stock No.:
- 217-2749
- Mfr. Part No.:
- 85106RC106P50
- Brand:
- Souriau
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- FR
Product Details

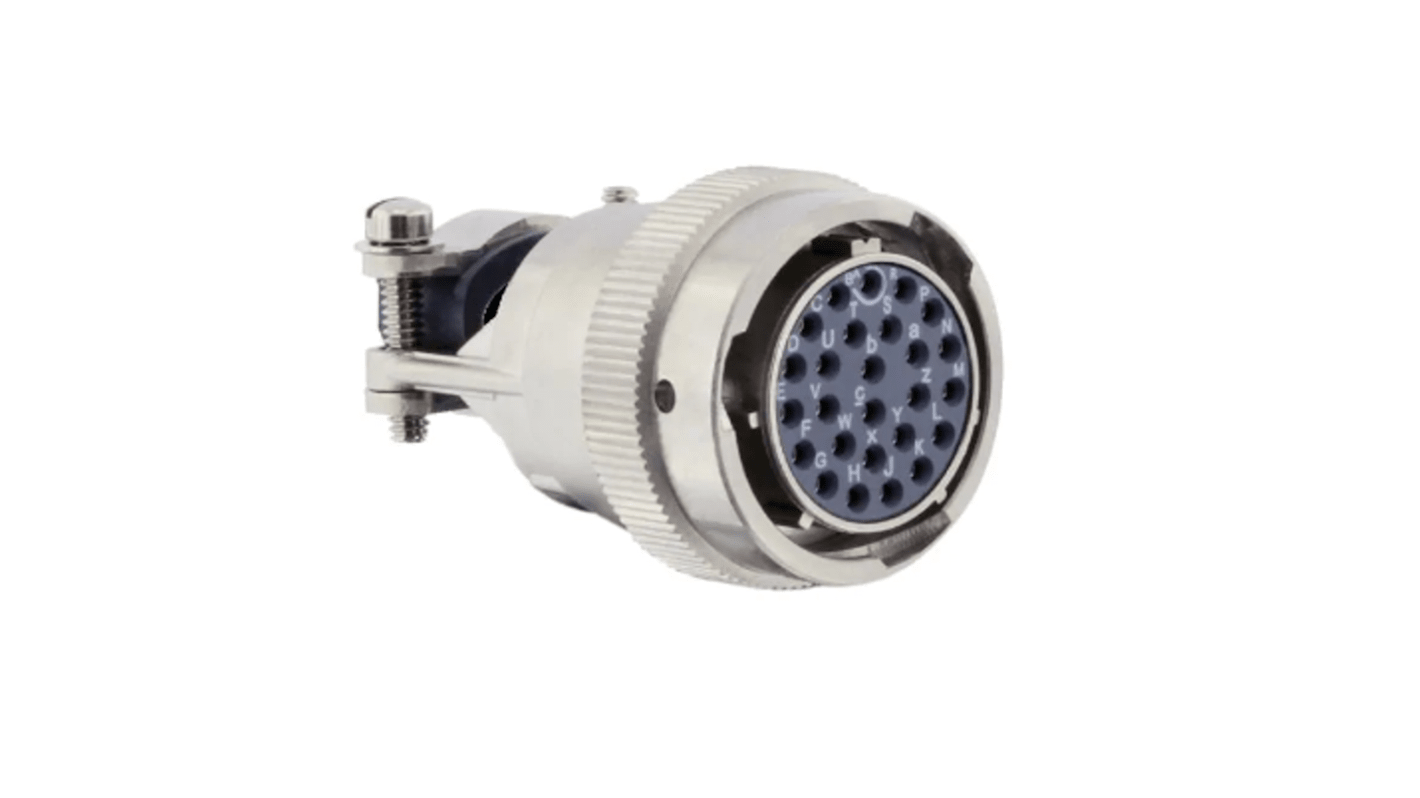

The Souriau male plug of 851 series, comes with backshell. It is designed to withstand climate ingress and exposure to salt spray or corrosive atmospheres while still maintaining mechanical, electrical functionality and RoHS compliance. The 851 series connectors are used in a variety of aeronautical, military and industrial applications.
Operating temperature range is from -55°C to +125°C
500 mating/unmating cycles
Reduce time and labour during installation
Salt spray resistance up to 500 hours
It has flammability rating of UL94 HB
500 mating/unmating cycles
Reduce time and labour during installation
Salt spray resistance up to 500 hours
It has flammability rating of UL94 HB
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 6 |
| Gender | Female |
| Contact Gender | Male |
| Current Rating | 7.5A |
| Voltage Rating | 600 V |
| Shell Size | 10 |
| Mounting Type | Cable |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet Coupling |
| Body Orientation | Straight |
| Series | 851 |
