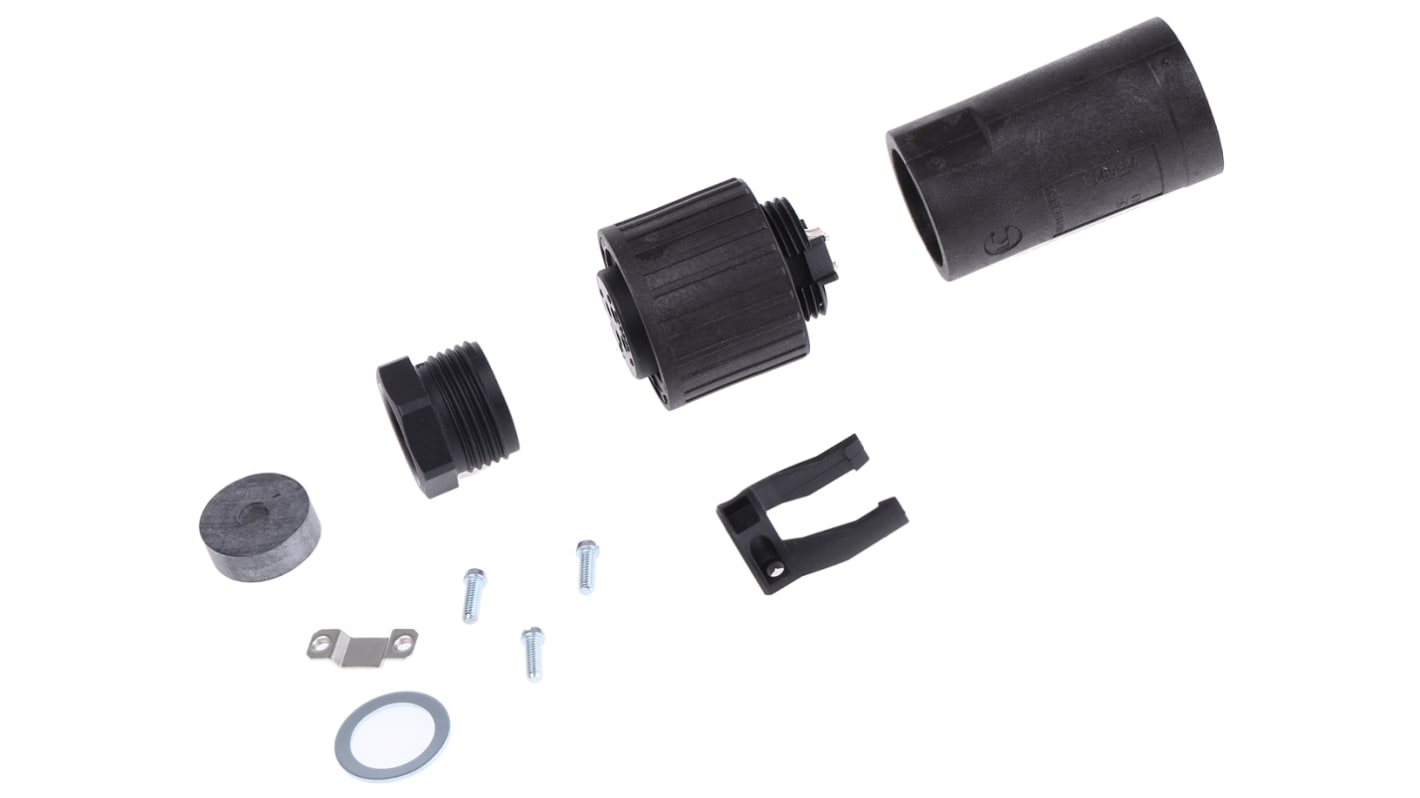

Hirschmann 4 Way Cable Mount MIL Spec Circular Connector Plug, Socket Contacts, Screw Coupling, MIL-DTL-5015
- RS Stock No.:
- 168-5617
- Mfr. Part No.:
- 932457100 CM 06 EA 14S-2 S
- Brand:
- Hirschmann
Subtotal (1 bag of 100 units)*
£847.40
(exc. VAT)
£1,016.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £8.474 | £847.40 |
*price indicative
- RS Stock No.:
- 168-5617
- Mfr. Part No.:
- 932457100 CM 06 EA 14S-2 S
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Number of Contacts | 4 | |
Gender | Male | |
Contact Gender | Female | |
Current Rating | 10A | |
Voltage Rating | 50 V ac/dc | |
Mounting Type | Cable Mount | |
Military Standard | MIL-DTL-5015 | |
Termination Method | Solder | |
Mating Type | Screw Coupling | |
Body Orientation | Straight | |
Minimum Operating Temperature | -40°C | |
Contact Plating | Silver | |
Strain Relief | Yes | |
Maximum Operating Temperature | +90°C | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Number of Contacts 4 | ||
Gender Male | ||
Contact Gender Female | ||
Current Rating 10A | ||
Voltage Rating 50 V ac/dc | ||
Mounting Type Cable Mount | ||
Military Standard MIL-DTL-5015 | ||
Termination Method Solder | ||
Mating Type Screw Coupling | ||
Body Orientation Straight | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Silver | ||
Strain Relief Yes | ||
Maximum Operating Temperature +90°C | ||
CM Cable Sockets and Panel Plugs
These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 & VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
Belden Hirschmann MIL Spec Circular Connector, 10A Current Rating, 50V AC/DC Voltage Rating - 932457100 CM 06 EA 14S-2 S
Use this military-grade circular connector plug from Belden's Hirschmann range to link control devices in harsh industrial environments. It has a solder joint for you to terminate conductors and achieve a reliable link. The unit's fibreglass-reinforced polyamide housing is resistant to impact and abrasion, making it suitable for use in challenging settings. For a secure hold on connection ports, the component has a screw locking mechanism that prevents accidental disconnection.
Features & Benefits
• 4-pole design for multi-signal transmission
• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Integrated cable clamp for strain relief to prevent damage to wires from twisting
• Silver contact plating for resistance to corrosion
• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Integrated cable clamp for strain relief to prevent damage to wires from twisting
• Silver contact plating for resistance to corrosion
Applications
• Aerospace industry
• Marine engineering
• Marine engineering
Is this connector dustproof?
Yes, this connector's IP67 rating indicates that it's fully protected from dust and immersion in water,.
Hirschmann CA series connectors – Protection Class IP67
Threaded locking connectors, protection class up to IP67 DIN40050
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
UL94V-0 cap in fibreglass-reinforced plastic
Total body length: 61 mm
Earth-insulated conductor
