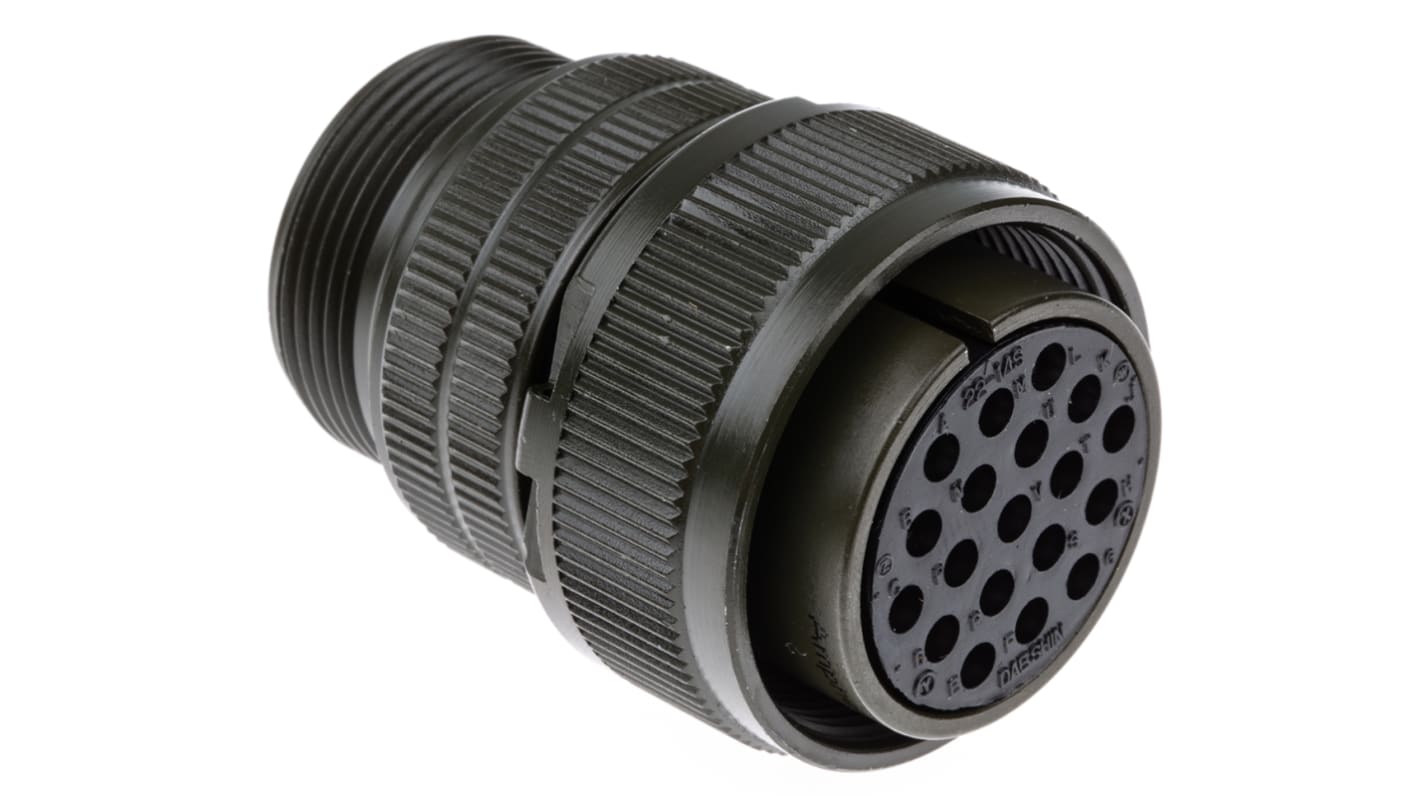

Amphenol Industrial, MS3106A, Copper Alloy Straight 19 Way Cable MIL Spec Circular Connector Male, Female Contacts,Shell

View this category
Bulk discount available

Subtotal (1 unit)*

£47.19

(exc. VAT)

£56.63

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 96 unit(s) shipping from 16 February 2026
  • Plus 9 unit(s) shipping from 16 February 2026
  • Plus 100 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£47.19
5 - 24£42.48
25 +£40.12

*price indicative

RS Stock No.:
475-886
Distrelec Article No.:
304-21-464
Mfr. Part No.:
MS3106A-22-14S
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Number of Contacts

19

Product Type

MIL Spec Circular Connector

Contact Gender

Female

Connector Gender

Male

Voltage

700 V dc, 500 V ac

Shell Size

22

Mount Type

Cable

Military Standard

MIL-DTL-5015

IP Rating

IP67

Minimum Operating Temperature

-55°C

Mating Type

Screw Coupling

Termination Type

Solder

Maximum Operating Temperature

125°C

Standards/Approvals

No

Orientation

Straight

Series

MS3106A

Contact Material

Copper Alloy

Strain Relief

Yes

Shell Plating

Zinc Cobalt

Contact Plating

Silver

COO (Country of Origin):
CZ

Amphenol MS MIL-C-5015 Circular Plug Connectors


Amphenol MS Series Class A MIL-spec connectors that meet the demanding performance requirements of MIL-C-5015. These cable mount circular plug connectors have proven electrical capability for equipment applications where durability is important. The Amphenol plugs have threaded couplings and single key/keyway shell polarization for an accurate and reliable connection. The solid shells of these MS Series circular MIL-C-5015 connectors are made from high grade aluminium alloy. The shells are electrically zinc plated with an olive drab chromate finish which ensures a high resistance to corrosion. The inserts of these military circular connectors are made from resilient synthetic rubber which offers a high dielectric strength and resistance to vibration.

Features & Benefits


Durable, field-proven design;Threaded couplings for quick and accurate mating;Keying and polarization to prevent mismating;Durable construction with high grade aluminium shell;Zinc plated olive drab chromate finish for high resistance to corrosion;Rubber inserts for high dielectric strength and resistance to vibration

Product Application Information


These Amphenol plug MS series class A Mil-Spec circular connectors are designed for to perform virtual functions in powering, testing and ground support systems. Applications include communication equipment, computers and shipboard installation where mechanical forces and physical parameters are not subject to extreme or rapid environmental changes. These MS series MIL spec circular cable mount plugs are for use with the MS Series 3100, 3101 and 3102 receptacles

97 (Olive Drab)


Commercial grade threaded circular multi-pole connectors designed to conform to the general requirements of MIL-C-5015 and satisfy the commercial and industrial demand for quality, reliability and low cost. The connectors are screw locking and fully interchangeable with other screw locking MIL-C-5015 types. All pins and sockets solder bucket type.

Note

Order cable clamp with bushing separately
Cable-mounting plugs (pin contacts) will only mate with chassis sockets. Cable-mounting sockets will only mate with chassis plugs.

Standards

MIL C 5015
