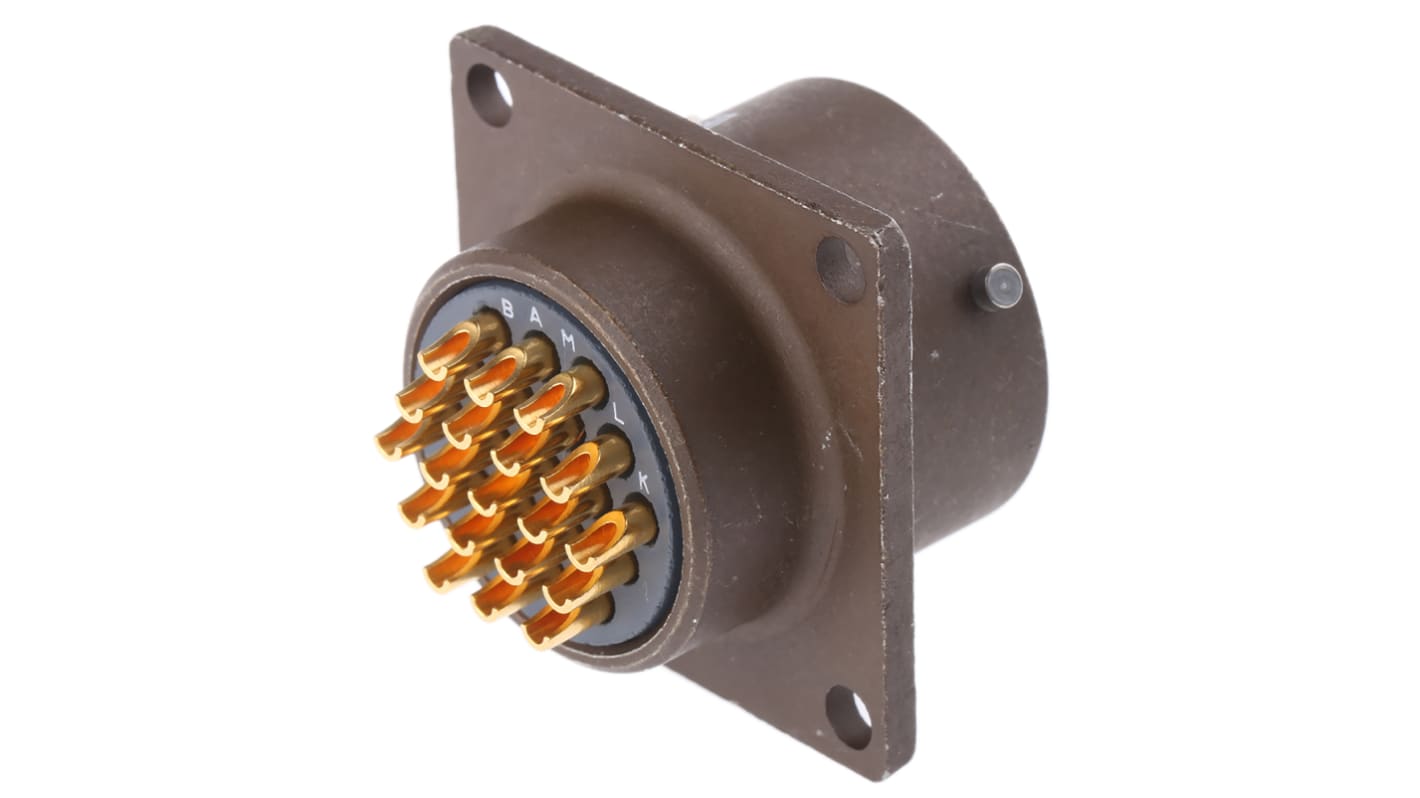

ITT Cannon, KPT, Copper Alloy 19 Way Box Mount MIL Spec Circular Connector Receptacle, Pin Contacts,Shell Size 14,
- RS Stock No.:
- 466-674
- Mfr. Part No.:
- KPT02E14-19P
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
£40.14
(exc. VAT)
£48.17
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.14 |
| 5 - 24 | £36.13 |
| 25 + | £32.51 |
*price indicative
- RS Stock No.:
- 466-674
- Mfr. Part No.:
- KPT02E14-19P
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 19 | |
| Gender | Female | |
| Contact Gender | Male | |
| Current Rating | 7.5A | |
| Voltage Rating | 600 V ac, 850 V dc | |
| Shell Size | 14 | |
| Mounting Type | Box Mount | |
| Termination Method | Solder | |
| Mating Type | Bayonet Coupling | |
| Body Orientation | Straight | |
| Series | KPT | |
| Contact Plating | Gold | |
| Shell Plating | Olive Drab Cadmium | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 19 | ||
Gender Female | ||
Contact Gender Male | ||
Current Rating 7.5A | ||
Voltage Rating 600 V ac, 850 V dc | ||
Shell Size 14 | ||
Mounting Type Box Mount | ||
Termination Method Solder | ||
Mating Type Bayonet Coupling | ||
Body Orientation Straight | ||
Series KPT | ||
Contact Plating Gold | ||
Shell Plating Olive Drab Cadmium | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Non Compliant
- COO (Country of Origin):
- DE
Chassis Mount
Note
Cable plugs only mate with chassis sockets. Cable sockets only mate with chassis plugs.
ITT KPT (Olive Drab)
High-quality multipole connectors to MIL-C-26482, featuring positive three-point bayonet coupling, solder connections and gold-plated contacts. Wire and cable clamping is incorporated on cable-mounting version to provide strain relief and sealing. Olive-green conducting chromate finish over cadmium plating provides a screened and durable finish. Will mate with similar MIL-C-26482 connectors providing the contact insert has the ’normal’ orientation. Spin coupling backshells for these connectors are also available - see stock no. 241-1294 (typically).
