- RS Stock No.:
- 888-2939
- Mfr. Part No.:
- AM4815ZT
- Brand:
- Dino-Lite
Available to back order for despatch 11/06/2024
Added
Price Each
£736.74
(exc. VAT)
£884.09
(inc. VAT)
Units | Per unit |
1 + | £736.74 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 888-2939
- Mfr. Part No.:
- AM4815ZT
- Brand:
- Dino-Lite
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

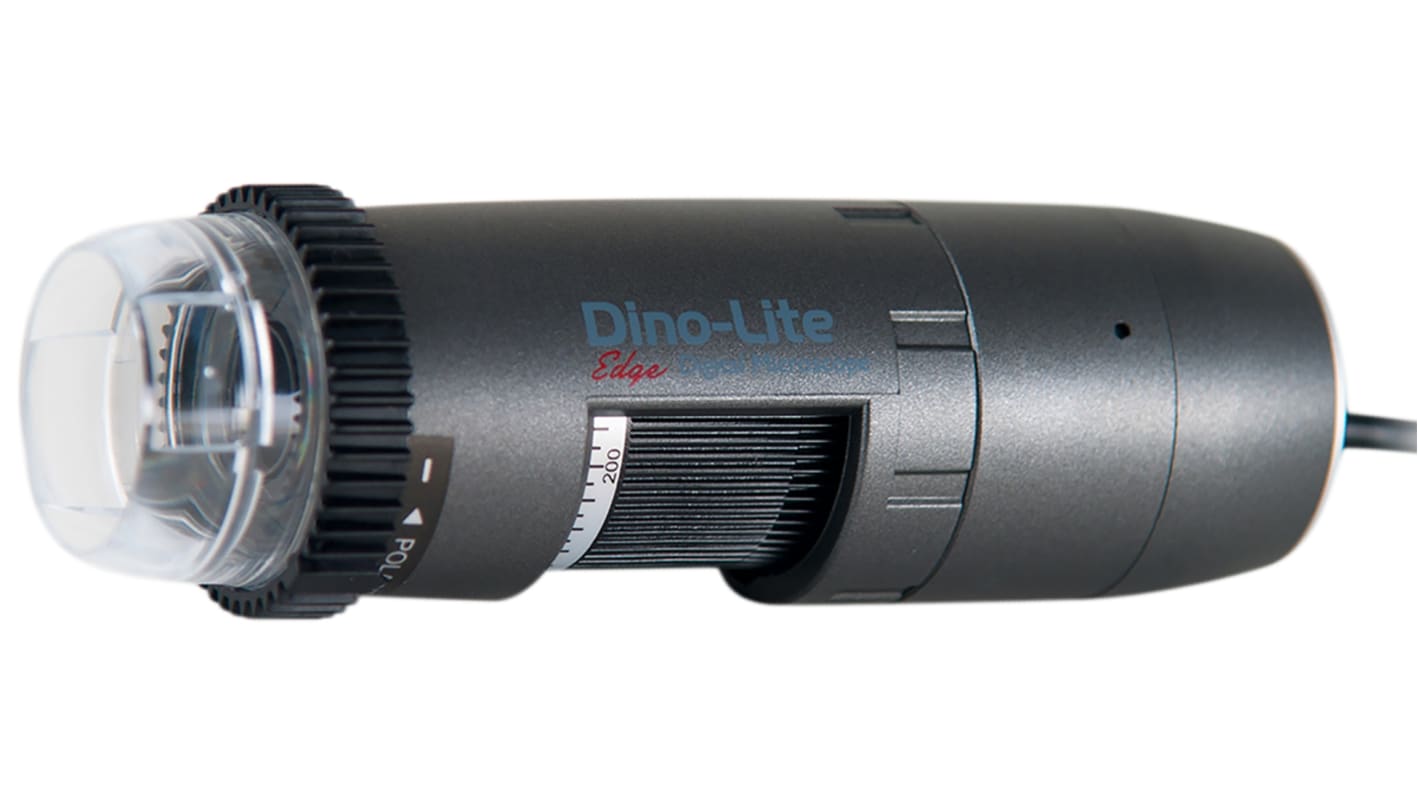

Dino-Lite Edge AM4815ZT
The AM4815ZT from Dino-Lite is a handheld digital microscope, fitted with a state-of-the-art 1.3 megapixel sensor. Delivering images with stunning sharpness and the built-in adjustable polariser reduces glare and reflection on shiny objects.
With the Extended Dynamic Range (EDR) feature, darker or brighter areas within an object can be revealed by stacking images at different exposure levels. Also the Extended Depth of Field (EDOF) feature stacks images at different focus level to improve the depth of field.
All Edge models offer a high level of flexibility due to the adaptable cap design. Making the microscope ideal for any professional application.
DinoCapture for Windows can detect and display magnification. Automatically storing it with the captured picture, useful for applications when reading is not feasible or difficult.
The Automatic Magnification Reading (AMR) feature increases accuracy by eliminating the process of visually reading the magnification.
With the Extended Dynamic Range (EDR) feature, darker or brighter areas within an object can be revealed by stacking images at different exposure levels. Also the Extended Depth of Field (EDOF) feature stacks images at different focus level to improve the depth of field.
All Edge models offer a high level of flexibility due to the adaptable cap design. Making the microscope ideal for any professional application.
DinoCapture for Windows can detect and display magnification. Automatically storing it with the captured picture, useful for applications when reading is not feasible or difficult.
The Automatic Magnification Reading (AMR) feature increases accuracy by eliminating the process of visually reading the magnification.
Magnification: 20-220x
Resolution:1280x1024 pixels
Sensor Type: CMOS
Infrared filter: IR cut-filter >650 nm
Maximum frame rate: 30fps
Supported video formats: WMV, FLV, SWF
Supported image formats: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Included software: DinoCapture 2.0 (Windows)
Lens type: Glass with anti-reflection coating
Microtouch: Yes
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8, 10
Housing material: Composite
Lighting: 8x white LED lights switchable by software
Resolution:1280x1024 pixels
Sensor Type: CMOS
Infrared filter: IR cut-filter >650 nm
Maximum frame rate: 30fps
Supported video formats: WMV, FLV, SWF
Supported image formats: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Included software: DinoCapture 2.0 (Windows)
Lens type: Glass with anti-reflection coating
Microtouch: Yes
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8, 10
Housing material: Composite
Lighting: 8x white LED lights switchable by software
Supplied with
Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Specifications
Attribute | Value |
---|---|
Magnification Power | 20 → 220X |
Frame Rate | 30fps |
Resolution | 1280 x 1024 pixels |
Illuminated | Yes |
Illumination Type | White LED |
Interface Type | USB |
Weight | 0.1kg |
Dimensions | 105 x 32mm |
Diameter | 32mm |
Length | 105mm |
Model Number p | AM4815ZT |
