Dino-Lite AM4113T-FVW USB Digital Microscope, 1280 x 1024 pixels, 200X Magnification
- RS Stock No.:
- 888-2885
- Mfr. Part No.:
- AM4113T-FVW
- Brand:
- Dino-Lite
View all Microscopes
Available to back order for despatch 22/03/2023
Price Each
£351.04
(exc. VAT)
£421.25
(inc. VAT)
| Units | Per unit |
| 1 + | £351.04 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 888-2885
- Mfr. Part No.:
- AM4113T-FVW
- Brand:
- Dino-Lite
- COO (Country of Origin):
- TW
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

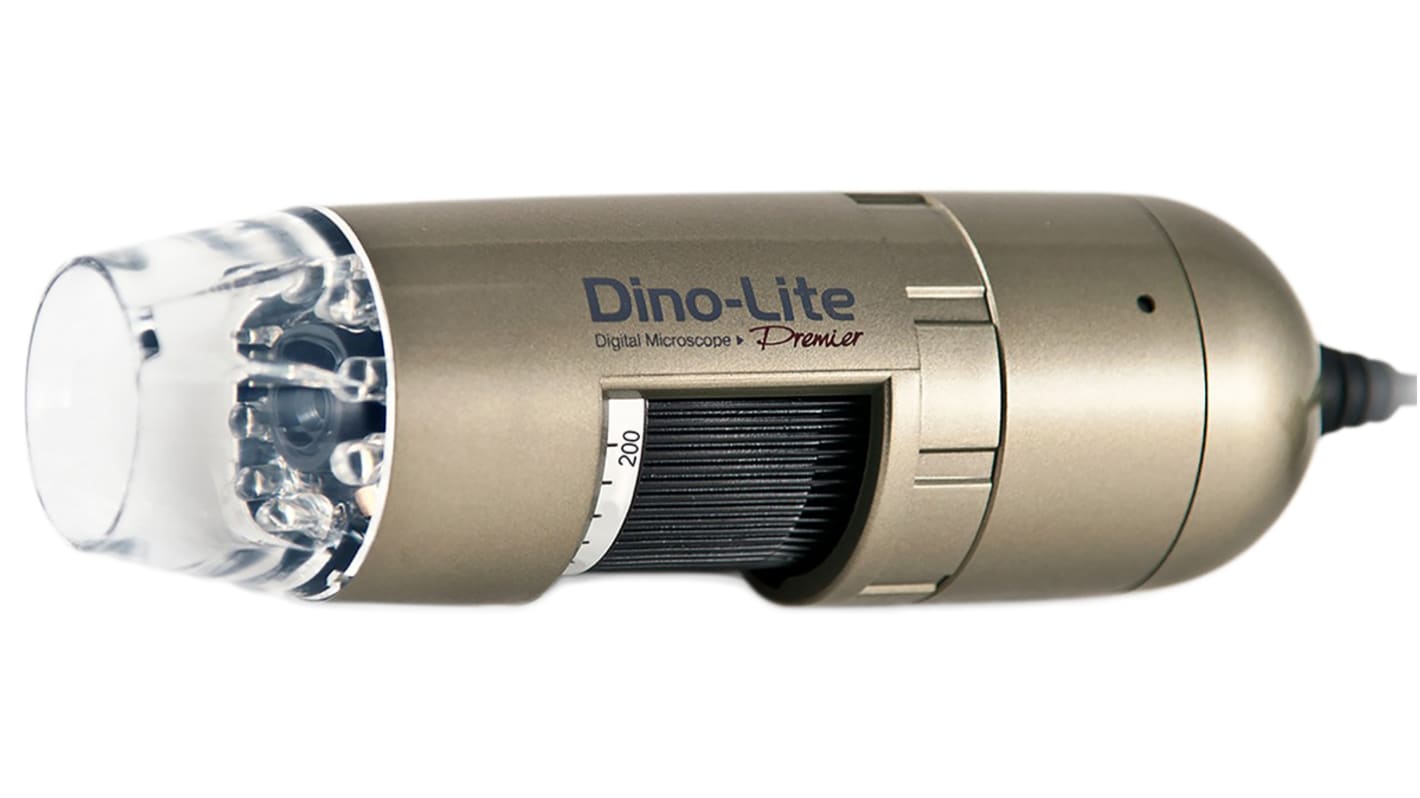

Dino-Lite Premier AM4113T-FVW
The AM4113T-FVW from Dino-Lite is a handheld digital microscope, designed with a high quality 1.3 megapixel sensor. Featuring switchable UV light making this instrument capable in many fields including forensic science, medical, engineering research.
Illumination via 4x UV LEDs with a wavelength of 390 nm to 400 nm, or 4x white LEDs, switchable between each type of LED.
Images are given more natural colours thanks to the built-in UV filter.
The AM4113T-FVW offers the ability to capture still images, videos, or time-lapsed videos.
Measurement and calibration functions are made easy thanks to the included software.
Illumination via 4x UV LEDs with a wavelength of 390 nm to 400 nm, or 4x white LEDs, switchable between each type of LED.
Images are given more natural colours thanks to the built-in UV filter.
The AM4113T-FVW offers the ability to capture still images, videos, or time-lapsed videos.
Measurement and calibration functions are made easy thanks to the included software.
Magnification: 20x-50x, 200x
Light/ LED type: 390-400 nm UV + white
Infrared filter: IR cut-filter >650 nm
Resolution:1280x1024 pixels
Sensor Type: Color CMOS
Maximum frame rate: 30fps
Supported video formats: WMV, FLV, SWF, JPEG, PNG
Supported image formats: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX, WMV, FLV, SWF
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Lens type: Glass with anti-reflection coating
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8, MacOS 10.4 and up
Housing material: Composite/ plastic housing
Light/ LED type: 390-400 nm UV + white
Infrared filter: IR cut-filter >650 nm
Resolution:1280x1024 pixels
Sensor Type: Color CMOS
Maximum frame rate: 30fps
Supported video formats: WMV, FLV, SWF, JPEG, PNG
Supported image formats: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX, WMV, FLV, SWF
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Lens type: Glass with anti-reflection coating
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8, MacOS 10.4 and up
Housing material: Composite/ plastic housing
Supplied with
Microscope, Carry pouch, Software CD, Calibration target, User manual
Specifications
| Attribute | Value |
| Magnification Power | 200 X, 10 → 70X |
| Frame Rate | 30fps |
| Resolution | 1280 x 1024 pixels |
| Illuminated | Yes |
| Illumination Type | White LED |
| Interface Type | USB |
| Weight | 0.105kg |
| Dimensions | 105 x 32mm |
| Diameter | 32mm |
| Length | 105mm |
| Model Number p | AM4113T-FVW |
