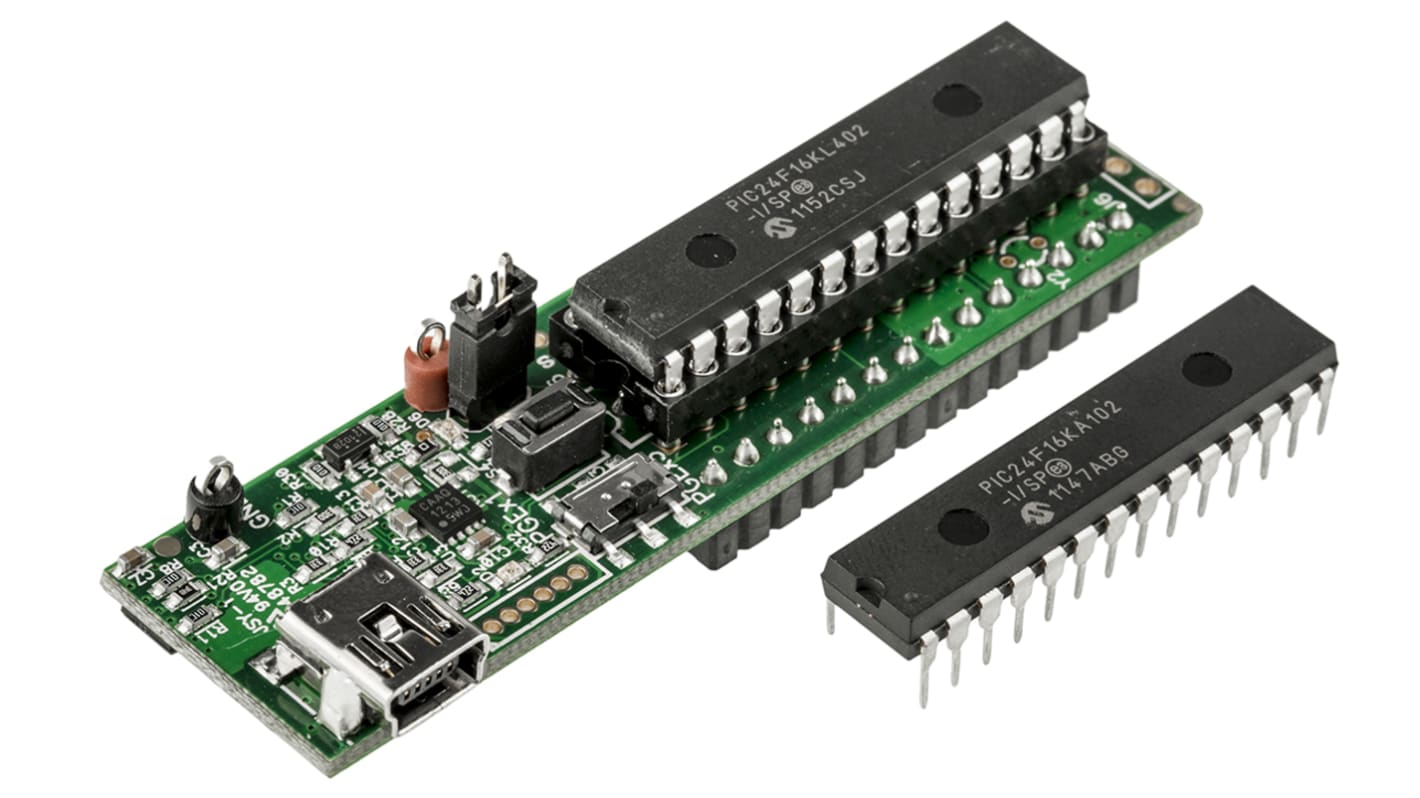

Microchip MCU Development Kit DM240013-1

View this category
Discontinued
RS Stock No.:
755-3090
Mfr. Part No.:
DM240013-1
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Classification

Development Kit

Technology

MCU

Processor Family Name

PIC

COO (Country of Origin):
CN

Microstick PIC24F K Development Board


Microstick for PIC24F K-series is a flexible USB powered development platform. It’s the perfect solution for those looking to get started with Microchip’s DIP-packaged PIC24 16-bit microcontroller family. Applications include extremely cost sensitive consumer, medical and industrial instruments. There are two versions for 3.3V and 5V parts.

Compatible with the 16-bit XLP Development Board (RS 686-8688)
Supports SDIP28 package only
For +3.3V parts, PIC24FxxKL & PIC24FxxKA, use DM240013-1 (RS 755-3090)
For +5.0V parts, PIC24FVxxKM & PIC24FVxxKA, use DM240013-2 (RS 798-9569)
Integrated Programmer/Debugger: No external debugger required
USB powered
MPLAB IDE support
DUT socket: flexible, easy device swapping
Works stand-alone or plugged into a prototyping board
Easy access to all device signals for probing
User LED
Reset button
Dimensions: 20 x 69mm

Supplied with

+3.3V part: USB cable, PIC24F16KL402, PIC24F16KA102 devices
+5.0V part: USB cable, PIC24FV16KM202 device


PIC24 Development Tools
