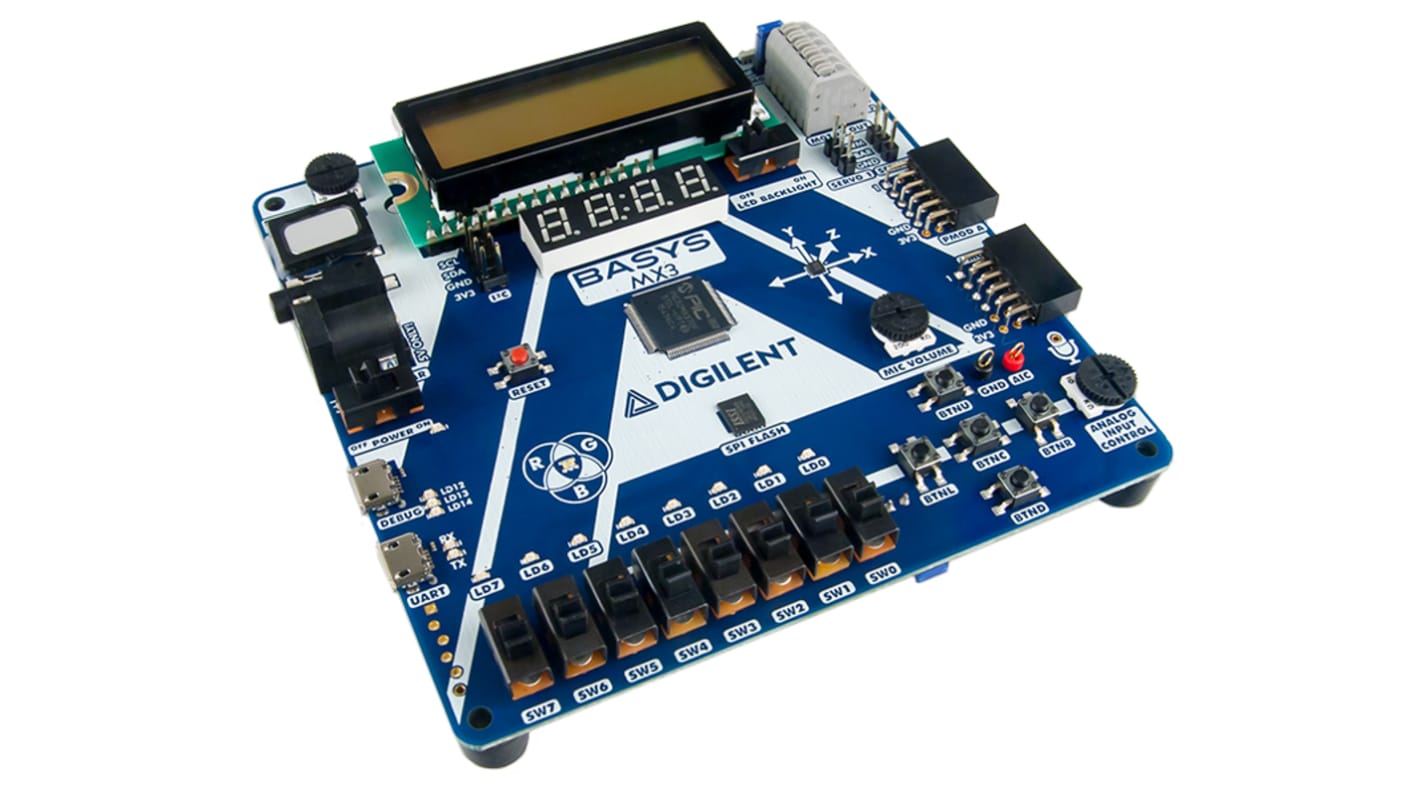

Digilent Basys MX3 MCU Trainer Board 410-336

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
164-3485
Mfr. Part No.:
410-336
Brand:
Digilent
Find similar products by selecting one or more attributes.
Select all

Brand

Digilent

Classification

Trainer Board

Kit Name

Basys MX3

Technology

MCU

Device Core

MIPS32

Processor Family Name

MIPS32

Processor Part Number

PIC32MX370F512L

Processor Type

Microcontroller

The Basys MX3 is a true MCU trainer board designed from the ground up around teaching embedded systems. Featuring the PIC32MX370 from Microchip plus an exhaustive set of peripherals, students gain exposure to a wide range of embedded systems related concepts while using a professional grade tool set. Adoption is made easy by the accompanying free and open-source coursework, including 7 in-depth teaching units and 15 complete labs.

Processor/IC:Microchip PIC32MX370F512L Microcontroller
MIPS32® M4K® core runs up to 96MHz using onboard 8MHz oscillator
Parallel Master Port for graphics interfaces
54 pins support Peripheral Pin Select for function remapping
Use with MPLAB X IDE
4MB SPI Flash
Supports up to 1.25MBaud
Powered from USB or 5V external power source
Standard barrel jack for 2mm internal-diameter plug
