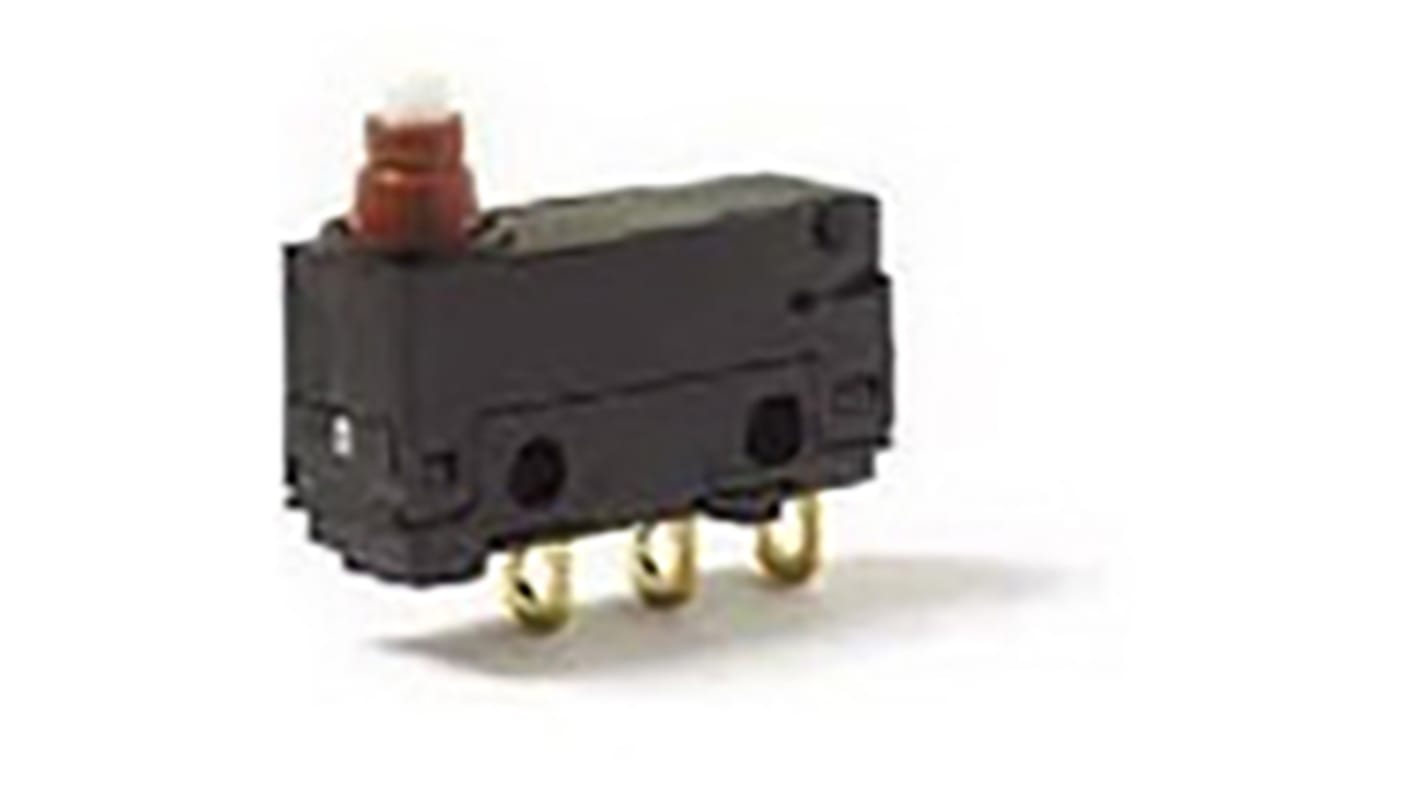

Johnson Electric Plunger Subminiature Micro Switch, Solder Lug Terminal, 5 A, SP-CO, IP40
- RS Stock No.:
- 883-2041
- Mfr. Part No.:
- V4LT7
- Brand:
- Johnson Electric
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 883-2041
- Mfr. Part No.:
- V4LT7
- Brand:
- Johnson Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Johnson Electric | |
| Actuator Type | Plunger | |
| Terminal Type | Solder Lug | |
| Contact Current Rating | 5 A | |
| Contact Configuration | SP-CO | |
| IP Rating | IP40 | |
| Operating Force | 2.4 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver | |
| Case Material | Glass Fibre Reinforced PA | |
| Mechanical Life | 1000000Cycles | |
| Release Force | 0.4N | |
| Voltage Rating | 250V ac | |
| Standards Met | CSA, ENEC, UL | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Johnson Electric | ||
Actuator Type Plunger | ||
Terminal Type Solder Lug | ||
Contact Current Rating 5 A | ||
Contact Configuration SP-CO | ||
IP Rating IP40 | ||
Operating Force 2.4 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver | ||
Case Material Glass Fibre Reinforced PA | ||
Mechanical Life 1000000Cycles | ||
Release Force 0.4N | ||
Voltage Rating 250V ac | ||
Standards Met CSA, ENEC, UL | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- CN
IP67, V4LS Snap Action Microswitch with Long Overtravel
Long overtravel of 2.2mm minimum
IP67 sealed with 500mm flying leads
Single pole changeover
Choice of standard plunger or metal lever
Polyacetal (POM) actuator and Glass Fibre Reinforced Polyamide (PA 6.6) case
Sealed
Operating Temperature Range: -40 to + 85°C
Contact Rating: 250Vac 5A, 125Vac 5A
IP67 sealed with 500mm flying leads
Single pole changeover
Choice of standard plunger or metal lever
Polyacetal (POM) actuator and Glass Fibre Reinforced Polyamide (PA 6.6) case
Sealed
Operating Temperature Range: -40 to + 85°C
Contact Rating: 250Vac 5A, 125Vac 5A
Approvals
VDE (EN)
