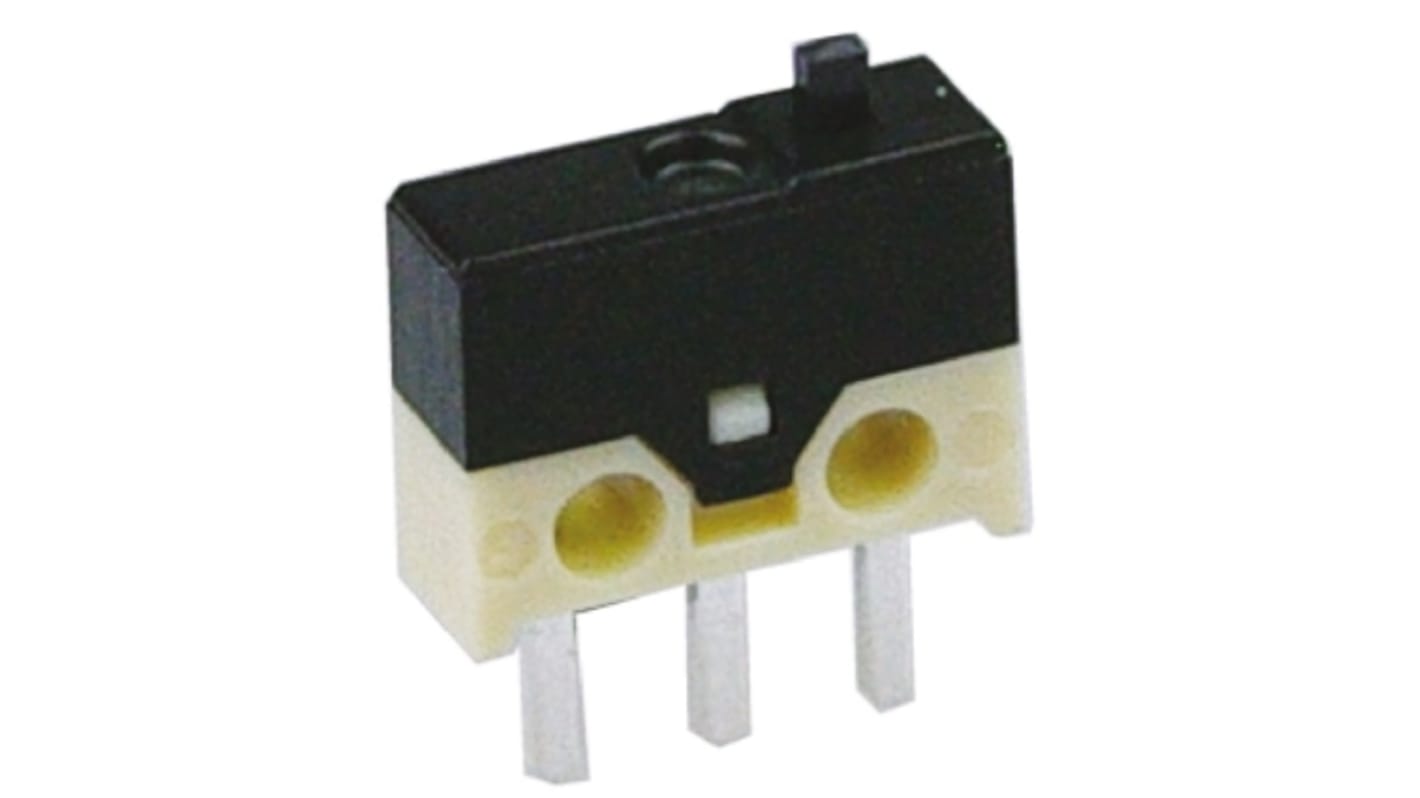

ZF Button Subminiature Micro Switch, PCB Terminal, 500 mA @ 30 V dc, SPDT
- RS Stock No.:
- 706-4168
- Mfr. Part No.:
- DH2C-C4AA
- Brand:
- ZF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 706-4168
- Mfr. Part No.:
- DH2C-C4AA
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Button | |
| Terminal Type | PCB | |
| Contact Current Rating | 500 mA @ 30 V dc | |
| Contact Configuration | SPDT | |
| Operating Force | 0.88 N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Gold Plated Brass | |
| Operating Temperature Range | -25 → +70°C | |
Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Button | ||
Terminal Type PCB | ||
Contact Current Rating 500 mA @ 30 V dc | ||
Contact Configuration SPDT | ||
Operating Force 0.88 N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Contact Material Gold Plated Brass | ||
Operating Temperature Range -25 → +70°C | ||
- COO (Country of Origin):
- CN
Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
