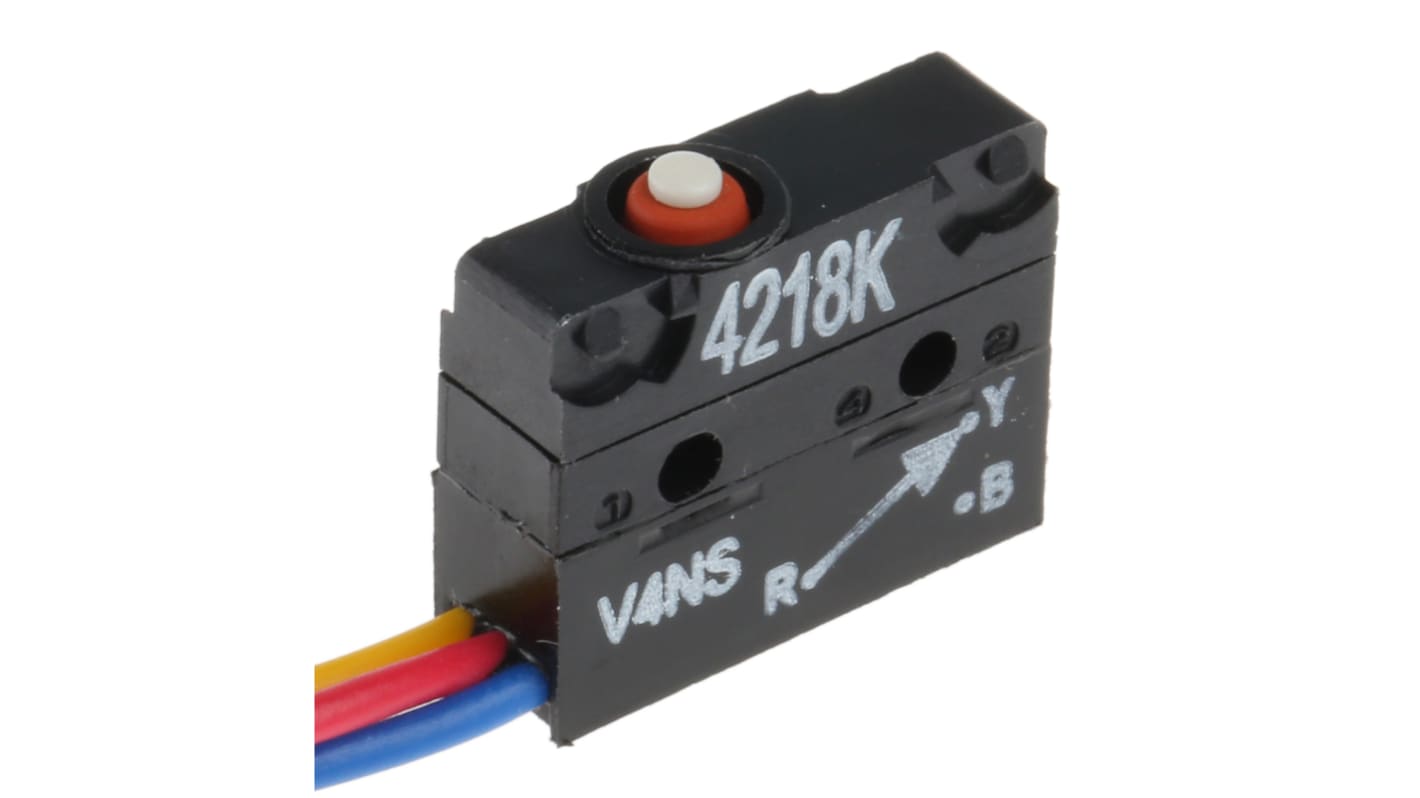

    Saia-Burgess Plunger Micro Switch, Pre-wired Terminal, 5 A @ 250 V ac, SP-NO/NC, IP67

    RS Stock No.:
    157-1036
    Mfr. Part No.:
    V4NS
    Brand:
    Saia-Burgess
    Saia-Burgess
    View all Micro Switches
    Discontinued product

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    RS Stock No.:
    157-1036
    Mfr. Part No.:
    V4NS
    Brand:
    Saia-Burgess

    Legislation and Compliance


    Product Details

    Saia-Burgess Microswitch


    The Saia-Burgess Microswitch has an electrical rating of 5A at 250VAC with SP contact configuration. It has fine silver contact material and a glass fibre reinforced polyamide case with a plunger actuator.


    Features and Benefits


    Operating temperature ranges between -10°C and 85°C
    Operating force is 2.5N
    Mechanical life is 3x10^6 operations
    Pre-wired terminals


    Certifications


    IP67 rated


    Approvals

    8888


    Specifications

    AttributeValue
    Actuator TypePlunger
    Terminal TypePre-wired
    Contact Current Rating5 A @ 250 V ac
    Contact ConfigurationSP-NO/NC
    IP RatingIP67
    Operating Force2.5 N
    Minimum Operating Temperature-10°C
    Maximum Operating Temperature+85°C
    Contact MaterialFine Silver
    Case MaterialGlass Fibre Reinforced Nylon
    Mechanical Life3 x 10^6Действия
    Release Force0.3N
    Operating Temperature Range-10 → +85°C
